EVO 48V Track System

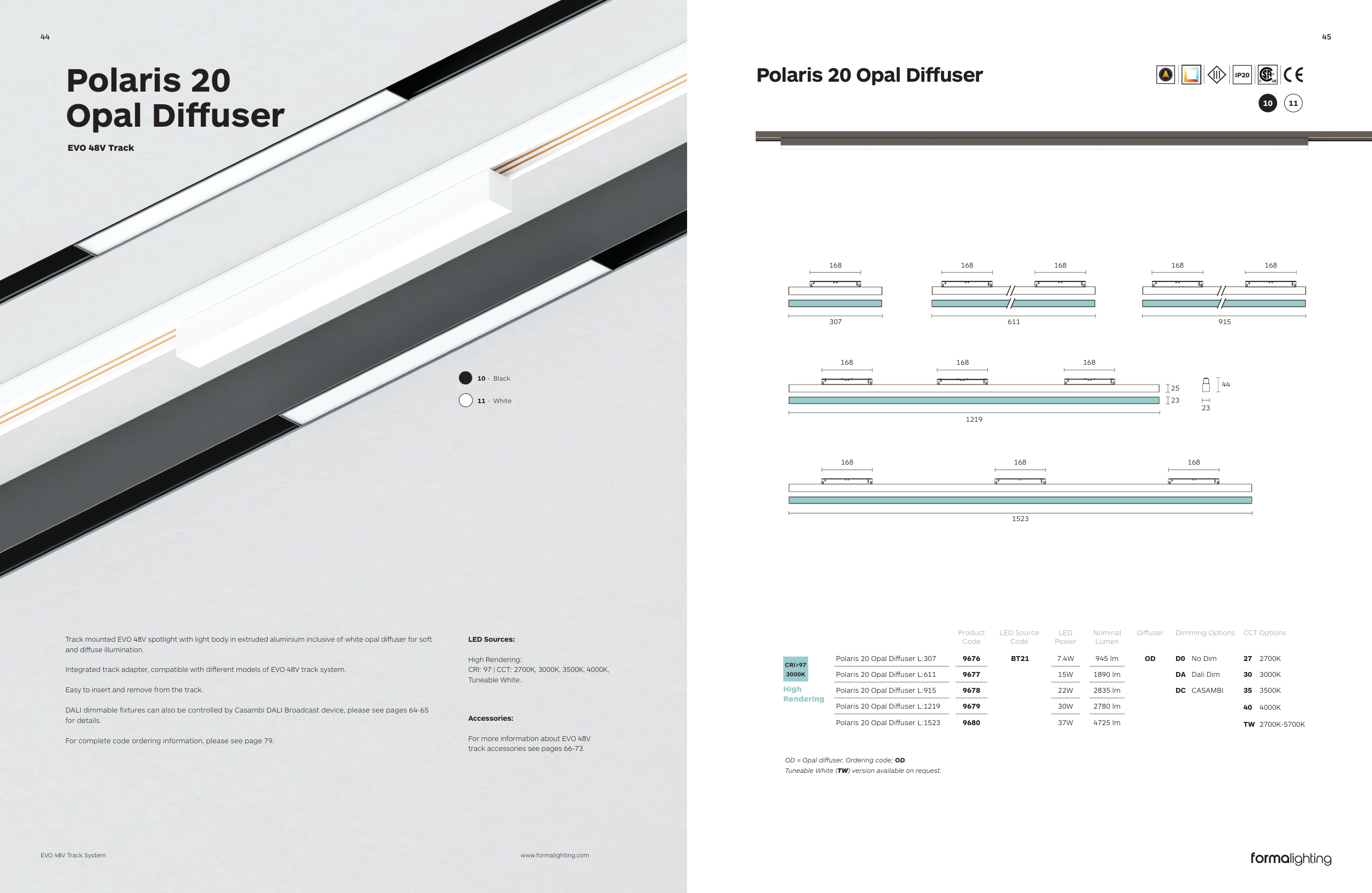

Polaris 20
Opal Diffuser
EVO 48V Track
10 - Black
11 - White
www.formalighting.com
44
EVO 48V Track System
Track mounted EVO 48V spotlight with light body in extruded aluminium inclusive of white opal diffuser for soft
and diffuse illumination.
Integrated track adapter, compatible with different models of EVO 48V track system.
Easy to insert and remove from the track.
DALI dimmable fixtures can also be controlled by Casambi DALI Broadcast device, please see pages 64-65
for details.
For complete code ordering information, please see page 79.
LED Sources:
High Rendering:
CRI: 97 | CCT: 2700K, 3000K, 3500K, 4000K,
Tuneable White.
Accessories:
For more information about EVO 48V
track accessories see pages 66-73.
Polaris 20 Opal Diffuser
Dimming Options
D0
No Dim
DA
Dali Dim
DC CASAMBI
CCT Options
27
2700K
30
3000K
35
3500K
40
4000K
TW 2700K-5700K
Product
Code
LED Source
Code
LED
Power
Nominal
Lumen
Diffuser
CRI>97
3000K
High
Rendering
Polaris 20 Opal Diffuser L:307
9676
BT21
7.4W
945 lm
OD
Polaris 20 Opal Diffuser L:611
9677
15W
1890 lm
Polaris 20 Opal Diffuser L:915
9678
22W
2835 lm
Polaris 20 Opal Diffuser L:1219
9679
30W
2780 lm
Polaris 20 Opal Diffuser L:1523
9680
37W
4725 lm
44
23
307
168
611
168
168
915
168
168
Tuneable White (TW) version available on request.
OD = Opal diffuser. Ordering code; OD.
1219
168
168
168
25
23
1523
168
168
168
IP20
