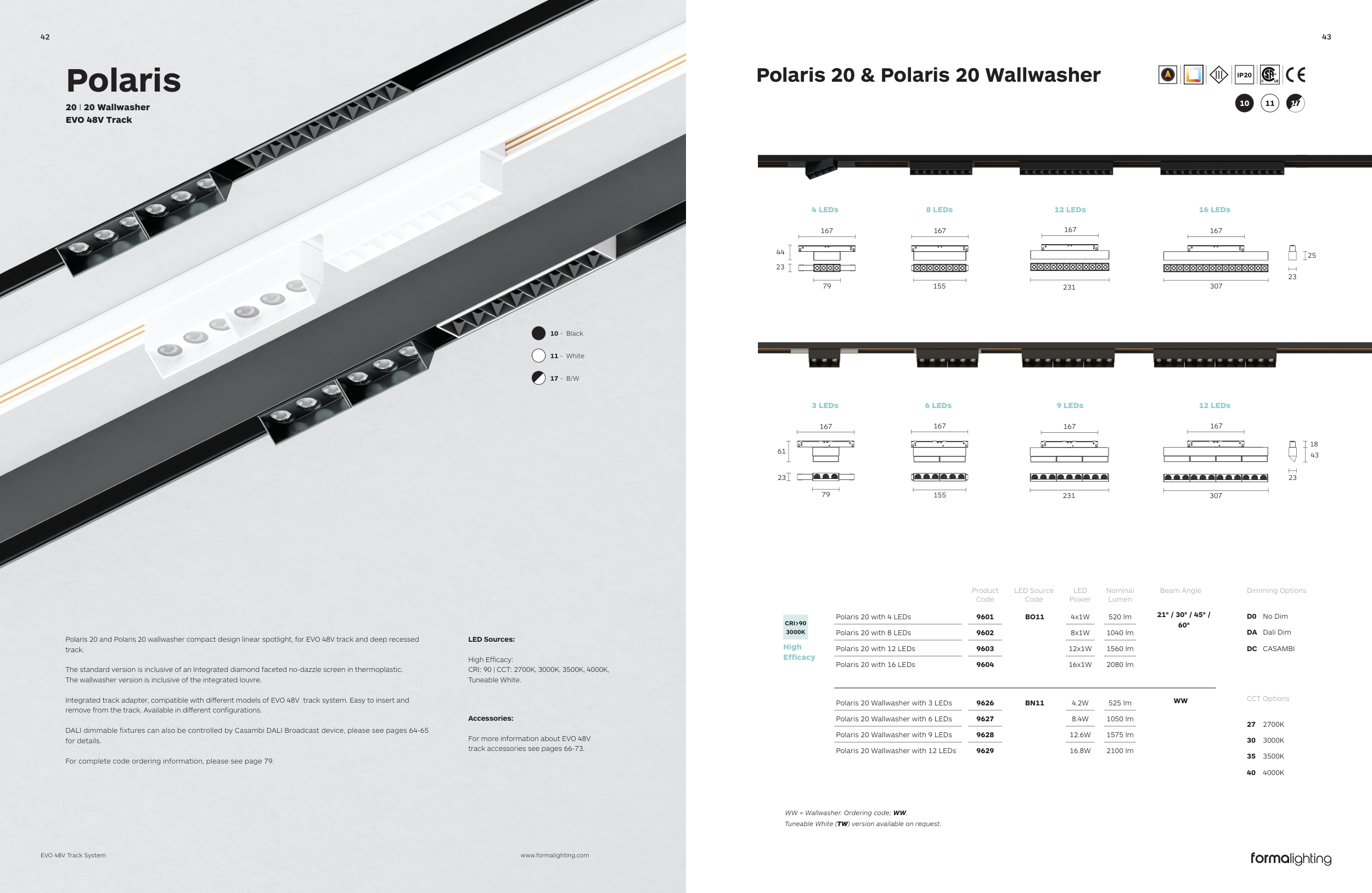

EVO 48V Track System
Polaris
20 I 20 Wallwasher
EVO 48V Track
www.formalighting.com
42
EVO 48V Track System
Polaris 20 and Polaris 20 wallwasher compact design linear spotlight, for EVO 48V track and deep recessed
track.
The standard version is inclusive of an Integrated diamond faceted no-dazzle screen in thermoplastic.
The wallwasher version is inclusive of the integrated louvre.
Integrated track adapter, compatible with different models of EVO 48V track system. Easy to insert and
remove from the track. Available in different configurations.
DALI dimmable fixtures can also be controlled by Casambi DALI Broadcast device, please see pages 64-65
for details.
For complete code ordering information, please see page 79.
LED Sources:
High Efficacy:
CRI: 90 | CCT: 2700K, 3000K, 3500K, 4000K,
Tuneable White.
Accessories:
For more information about EVO 48V
track accessories see pages 66-73.
10 - Black
11 - White
17 - B/W
Polaris 20 & Polaris 20 Wallwasher
Dimming Options
D0
No Dim
DA
Dali Dim
DC CASAMBI
CCT Options
27
2700K
30
3000K
35
3500K
40
4000K
Product
Code
LED Source
Code
LED
Power
Nominal
Lumen
Beam Angle
CRI>90
3000K
High
Efficacy
Polaris 20 with 4 LEDs
9601
BO11
4x1W
520 lm
21° / 30° / 45° /
60°
Polaris 20 with 8 LEDs
9602
8x1W
1040 lm
Polaris 20 with 12 LEDs
9603
12x1W
1560 lm
Polaris 20 with 16 LEDs
9604
16x1W
2080 lm
Polaris 20 Wallwasher with 3 LEDs
9626
BN11
4.2W
525 lm
WW
Polaris 20 Wallwasher with 6 LEDs
9627
8.4W
1050 lm
Polaris 20 Wallwasher with 9 LEDs
9628
12.6W
1575 lm
Polaris 20 Wallwasher with 12 LEDs
9629
16.8W
2100 lm
4 LEDs
8 LEDs
12 LEDs
16 LEDs
167
44
23
79
167
155
167
231
167
307
23
25
3 LEDs
6 LEDs
9 LEDs
12 LEDs
167
79
23
61
167
155
167
231
167
307
43
18
23
Tuneable White (TW) version available on request.
WW = Wallwasher. Ordering code; WW.
IP20
