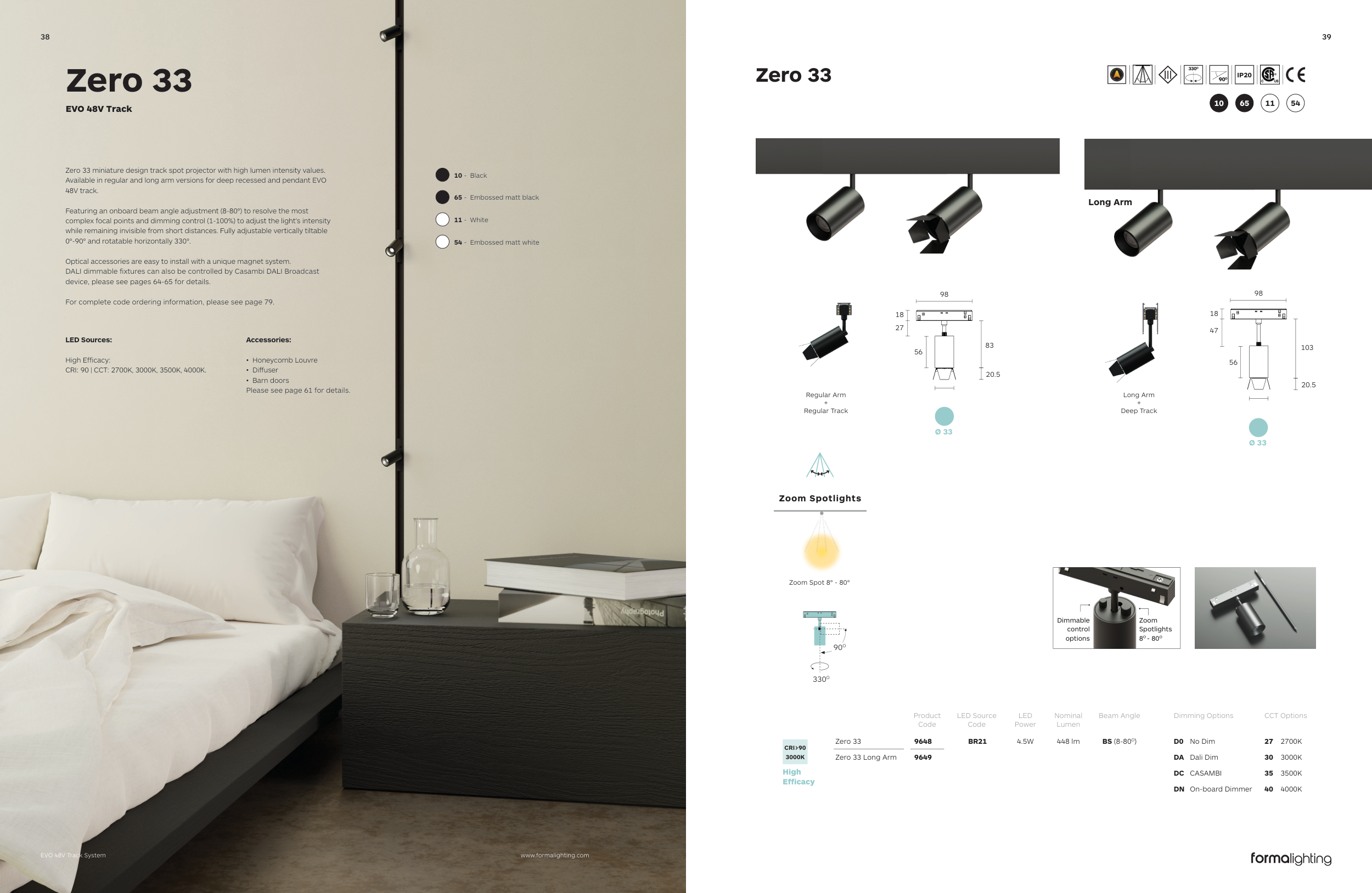

EVO 48V Track System
Zero 33 miniature design track spot projector with high lumen intensity values.
Available in regular and long arm versions for deep recessed and pendant EVO
48V track.
Featuring an onboard beam angle adjustment (8-80°) to resolve the most
complex focal points and dimming control (1-100%) to adjust the light’s intensity
while remaining invisible from short distances. Fully adjustable vertically tiltable
0°-90° and rotatable horizontally 330°.
Optical accessories are easy to install with a unique magnet system.
DALI dimmable fixtures can also be controlled by Casambi DALI Broadcast
device, please see pages 64-65 for details.
For complete code ordering information, please see page 79.
LED Sources:
High Efficacy:
CRI: 90 | CCT: 2700K, 3000K, 3500K, 4000K.
Accessories:
• Honeycomb Louvre
• Diffuser
• Barn doors
Please see page 61 for details.
Zero 33
EVO 48V Track
www.formalighting.com
38
www.formalighting.com
EVO 48V Track System
10 - Black
65 - Embossed matt black
11 - White
54 - Embossed matt white
Zero 33
90O
Dimming Options
D0
No Dim
DA
Dali Dim
DC CASAMBI
DN On-board Dimmer
CCT Options
27
2700K
30
3000K
35
3500K
40
4000K
Product
Code
LED Source
Code
LED
Power
Nominal
Lumen
Beam Angle
CRI>90
3000K
High
Efficacy
Zero 33
9648
BR21
4.5W
448 lm
BS (8-80O)
Zero 33 Long Arm
9649
83
20.5
56
18
98
27
103
56
18
98
47
20.5
Long Arm
+
Deep Track
Regular Arm
+
Regular Track
Dimmable
control
options
Zoom
Spotlights
8O - 80O
Long Arm
Zoom Spot 8° - 80°
Zoom Spotlights
330O
Ø 33
Ø 33
330O
90O
IP20
