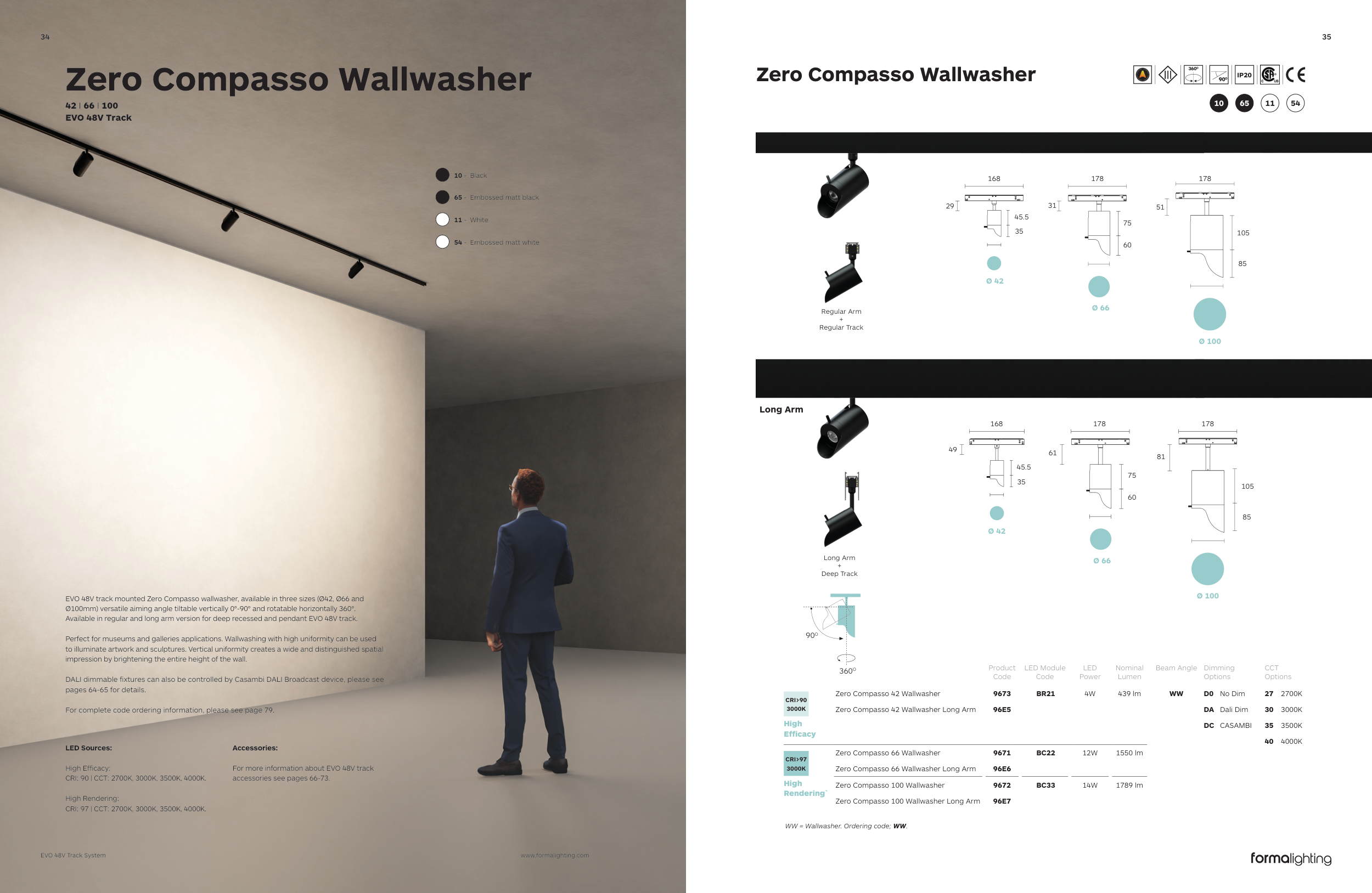

EVO 48V Track System
Zero Compasso Wallwasher
42 I 66 I 100
EVO 48V Track
www.formalighting.com
34
EVO 48V Track System
EVO 48V track mounted Zero Compasso wallwasher, available in three sizes (Ø42, Ø66 and
Ø100mm) versatile aiming angle tiltable vertically 0°-90° and rotatable horizontally 360°.
Available in regular and long arm version for deep recessed and pendant EVO 48V track.
Perfect for museums and galleries applications. Wallwashing with high uniformity can be used
to illuminate artwork and sculptures. Vertical uniformity creates a wide and distinguished spatial
impression by brightening the entire height of the wall.
DALI dimmable fixtures can also be controlled by Casambi DALI Broadcast device, please see
pages 64-65 for details.
For complete code ordering information, please see page 79.
LED Sources:
High Efficacy:
CRI: 90 | CCT: 2700K, 3000K, 3500K, 4000K.
High Rendering:
CRI: 97 | CCT: 2700K, 3000K, 3500K, 4000K.
Accessories:
For more information about EVO 48V track
accessories see pages 66-73.
10 - Black
65 - Embossed matt black
11 - White
54 - Embossed matt white
Zero Compasso Wallwasher
Dimming
Options
D0
No Dim
DA
Dali Dim
DC CASAMBI
CCT
Options
27
2700K
30
3000K
35
3500K
40
4000K
90O
168
29
45.5
35
31
75
60
178
178
105
85
51
Ø 42
Ø 66
Ø 100
168
49
45.5
35
178
61
75
60
178
105
85
81
Ø 42
Ø 66
Ø 100
Long Arm
Regular Arm
+
Regular Track
Long Arm
+
Deep Track
360O
360O
90O
IP20
WW = Wallwasher. Ordering code; WW.
Product
Code
LED Module
Code
LED
Power
Nominal
Lumen
Beam Angle
CRI>90
3000K
High
Efficacy
Zero Compasso 42 Wallwasher
9673
BR21
4W
439 lm
WW
Zero Compasso 42 Wallwasher Long Arm
96E5
CRI>97
3000K
High
Rendering`
Zero Compasso 66 Wallwasher
9671
BC22
12W
1550 lm
Zero Compasso 66 Wallwasher Long Arm
96E6
Zero Compasso 100 Wallwasher
9672
BC33
14W
1789 lm
Zero Compasso 100 Wallwasher Long Arm
96E7
