BEL xT
BEL Collection

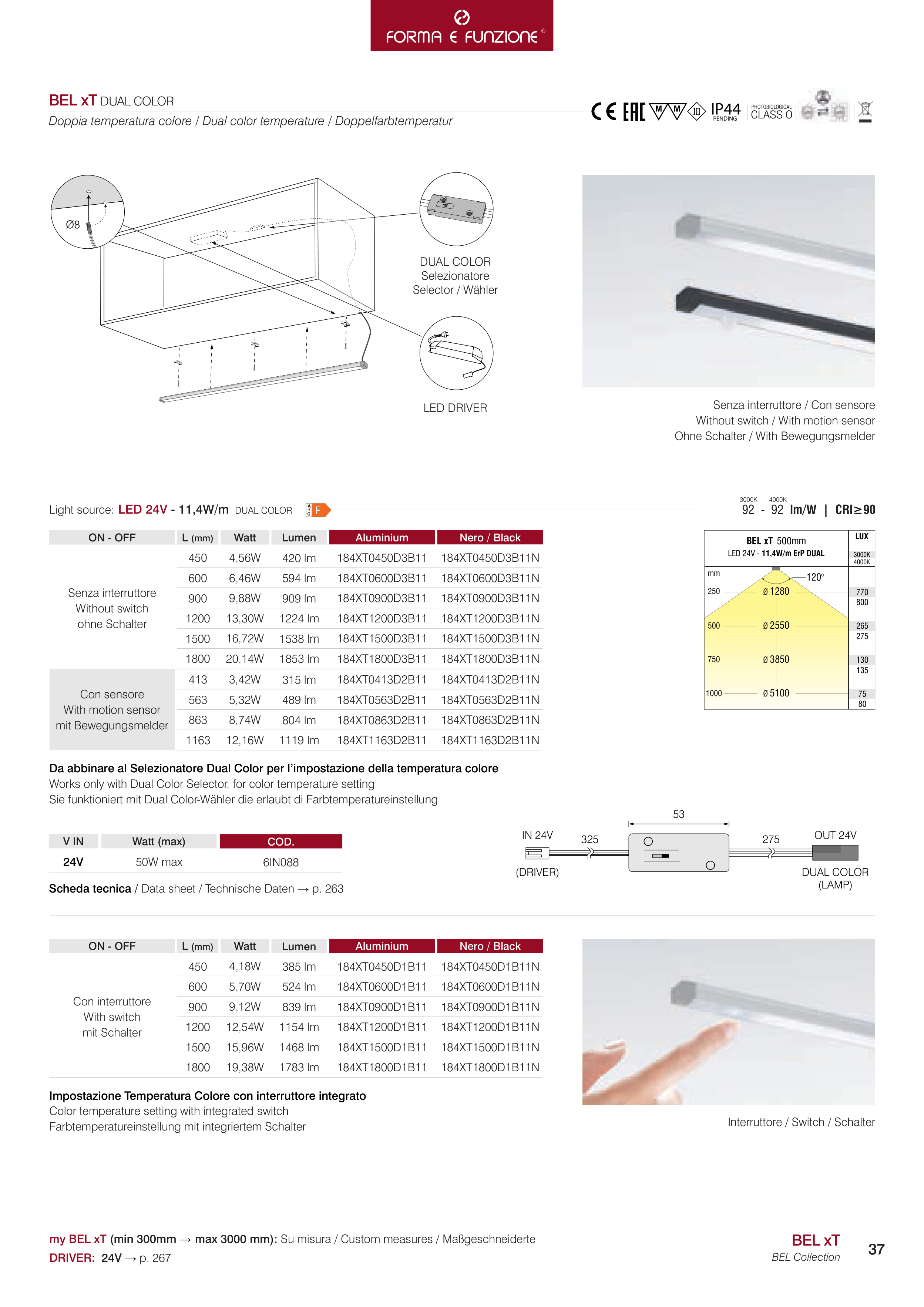

BEL xT DUAL COLOR
Doppia temperatura colore / Dual color temperature / Doppelfarbtemperatur
Ø8
Senza interruttore / Con sensore
Without switch / With motion sensor
Ohne Schalter / With Bewegungsmelder
DRIVER: 24V → p. 267
my BEL xT (min 300mm → max 3000 mm): Su misura / Custom measures / Maßgeschneiderte
120°
Ø 1280
Ø 2550
Ø 3850
Ø 5100
3000K
4000K
LUX
800
275
135
80
770
265
130
75
LED 24V - 11,4W/m ErP DUAL
BEL xT 500mm
Impostazione Temperatura Colore con interruttore integrato
Color temperature setting with integrated switch
Farbtemperatureinstellung mit integriertem Schalter
53
IN 24V
(DRIVER)
OUT 24V
DUAL COLOR
(LAMP)
325
275
53
COLD
WHITE
WARM
WHITE
IN 24V
(DRIVER)
OUT 24V
DUAL COLOR
(LAMP)
325
275
Scheda tecnica / Data sheet / Technische Daten → p. 263
COD.
6IN088
50W max
24V
Interruttore / Switch / Schalter
Watt (max)
V IN
92 - 92 lm/W | CRI≥90
Watt
Lumen
L (mm)
ON - OFF
420 lm
594 lm
909 lm
1224 lm
1538 lm
1853 lm
450
600
900
1200
1500
1800
184XT0450D3B11
184XT0600D3B11
184XT0900D3B11
184XT1200D3B11
184XT1500D3B11
184XT1800D3B11
184XT0450D3B11N
184XT0600D3B11N
184XT0900D3B11N
184XT1200D3B11N
184XT1500D3B11N
184XT1800D3B11N
4,56W
6,46W
9,88W
13,30W
16,72W
20,14W
Aluminium
Nero / Black
Senza interruttore
Without switch
ohne Schalter
Con sensore
With motion sensor
mit Bewegungsmelder
315 lm
489 lm
804 lm
1119 lm
184XT0413D2B11
184XT0563D2B11
184XT0863D2B11
184XT1163D2B11
184XT0413D2B11N
184XT0563D2B11N
184XT0863D2B11N
184XT1163D2B11N
3,42W
5,32W
8,74W
12,16W
413
563
863
1163
Da abbinare al Selezionatore Dual Color per l’impostazione della temperatura colore
Works only with Dual Color Selector, for color temperature setting
Sie funktioniert mit Dual Color-Wähler die erlaubt di Farbtemperatureinstellung
Watt
Lumen
L (mm)
ON - OFF
385 lm
524 lm
839 lm
1154 lm
1468 lm
1783 lm
450
600
900
1200
1500
1800
184XT0450D1B11
184XT0600D1B11
184XT0900D1B11
184XT1200D1B11
184XT1500D1B11
184XT1800D1B11
184XT0450D1B11N
184XT0600D1B11N
184XT0900D1B11N
184XT1200D1B11N
184XT1500D1B11N
184XT1800D1B11N
4,18W
5,70W
9,12W
12,54W
15,96W
19,38W
Aluminium
Nero / Black
Con interruttore
With switch
mit Schalter
Light source: LED 24V - 11,4W/m DUAL COLOR
DUAL COLOR
Selezionatore
Selector / Wähler
LED DRIVER
