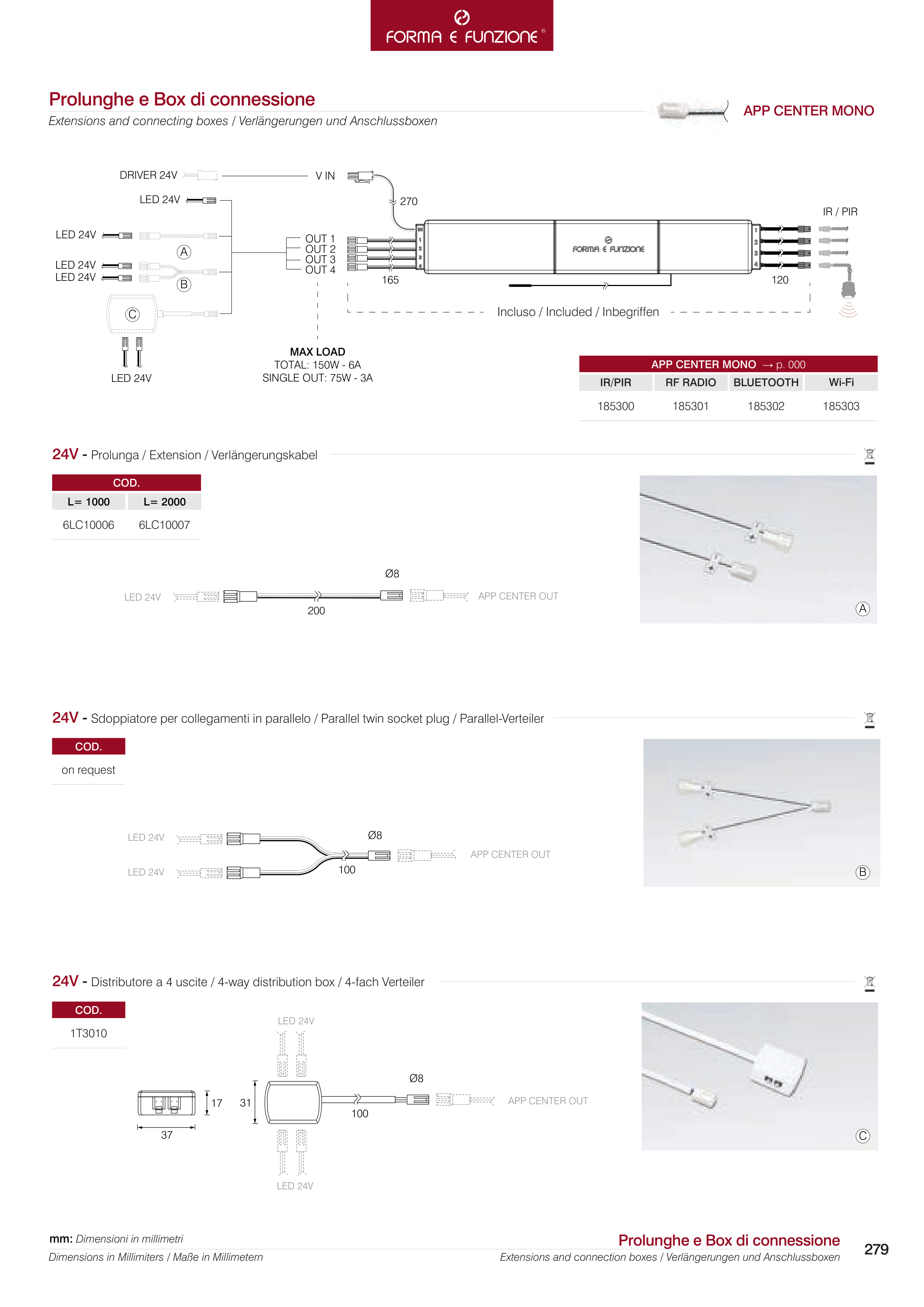

Extensions and connecting boxes / Verlängerungen und Anschlussboxen
APP CENTER MONO
Prolunghe e Box di connessione
270
165
120
IR / PIR
OUT 1
V IN
OUT 2
OUT 3
OUT 4
DRIVER 24V
MAX LOAD
TOTAL: 150W - 6A
SINGLE OUT: 75W - 3A
LED 24V
LED 24V
LED 24V
LED 24V
LED 24V
200
100
B
A
C
A
B
C
1T3010
COD.
on request
COD.
24V - Prolunga / Extension / Verlängerungskabel
Incluso / Included / Inbegriffen
24V - Sdoppiatore per collegamenti in parallelo / Parallel twin socket plug / Parallel-Verteiler
24V - Distributore a 4 uscite / 4-way distribution box / 4-fach Verteiler
APP CENTER OUT
APP CENTER OUT
APP CENTER OUT
LED 24V
LED 24V
LED 24V
COD.
L= 1000
L= 2000
6LC10006
6LC10007
Ø8
Ø8
APP CENTER OUT
APP CENTER OUT
LED 24V
LED 24V
LED 24V
Ø8
APP CENTER MONO → p. 000
185300
185301
185302
185303
mm: Dimensioni in millimetri
Dimensions in Millimiters / Maße in Millimetern
Extensions and connection boxes / Verlängerungen und Anschlussboxen
Prolunghe e Box di connessione
