266
mm: Dimensioni in millimetri
Dimensions in Millimiters / Maße in Millimetern
24V - 30W FLAT
24V - 60W FLAT
24V - 100W FLAT
6 x OUT (24V LED)
SENSOR INPUT
2000
MAX 30W-230V (25W-110V)
Opzionale: Interruttore / Sensore di movimento
Optional: Switch / Motion Sensor
Optionel: Schalter / Bewegungssmelder
6 x OUT (24V LED)
SENSOR INPUT
2000
MAX 60W-230V (40W-110V)
Opzionale: Interruttore / Sensore di movimento
Optional: Switch / Motion Sensor
Optionel: Schalter / Bewegungssmelder
6 x OUT (24V LED)
SENSOR INPUT
2000
MAX 100W-230V (80W-110V)
Opzionale: Interruttore / Sensore di movimento
Optional: Switch / Motion Sensor
Optionel: Schalter / Bewegungssmelder

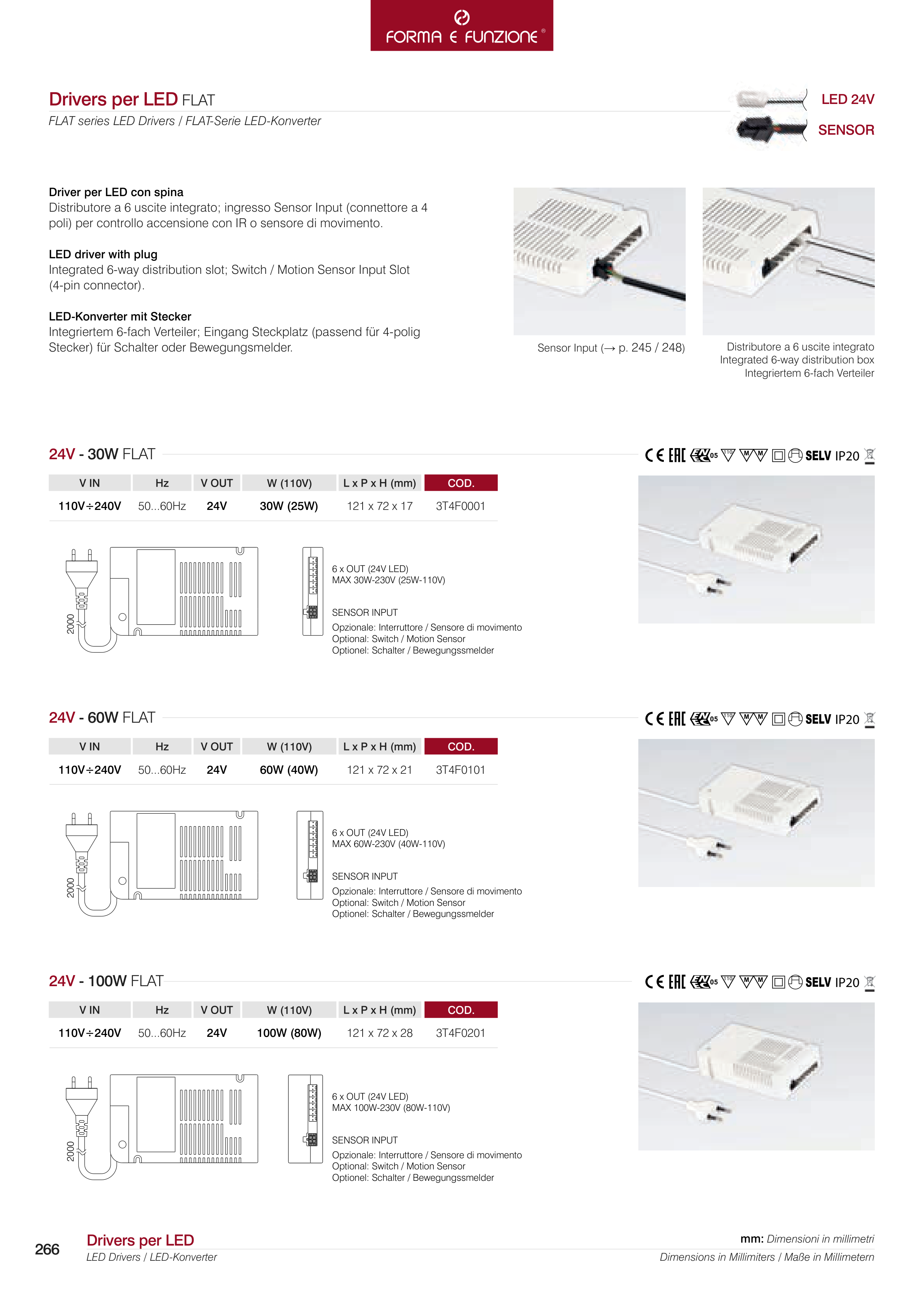

Drivers per LED FLAT
FLAT series LED Drivers / FLAT-Serie LED-Konverter
LED 24V
SENSOR
50...60Hz
110V÷240V
3T4F0001
121 x 72 x 17
24V
COD.
Drivers per LED
LED Drivers / LED-Konverter
Driver per LED con spina
Distributore a 6 uscite integrato; ingresso Sensor Input (connettore a 4
poli) per controllo accensione con IR o sensore di movimento.
LED driver with plug
Integrated 6-way distribution slot; Switch / Motion Sensor Input Slot
(4-pin connector).
LED-Konverter mit Stecker
Integriertem 6-fach Verteiler; Eingang Steckplatz (passend für 4-polig
Stecker) für Schalter oder Bewegungsmelder.
Distributore a 6 uscite integrato
Integrated 6-way distribution box
Integriertem 6-fach Verteiler
Sensor Input (→ p. 245 / 248)
30W (25W)
W (110V)
50...60Hz
110V÷240V
3T4F0101
121 x 72 x 21
24V
COD.
60W (40W)
W (110V)
50...60Hz
110V÷240V
3T4F0201
121 x 72 x 28
24V
COD.
100W (80W)
W (110V)
