249
ACCESSORI
Accessories / Zubehör
mm: Dimensioni in millimetri
Dimensions in Millimiters / Maße in Millimetern

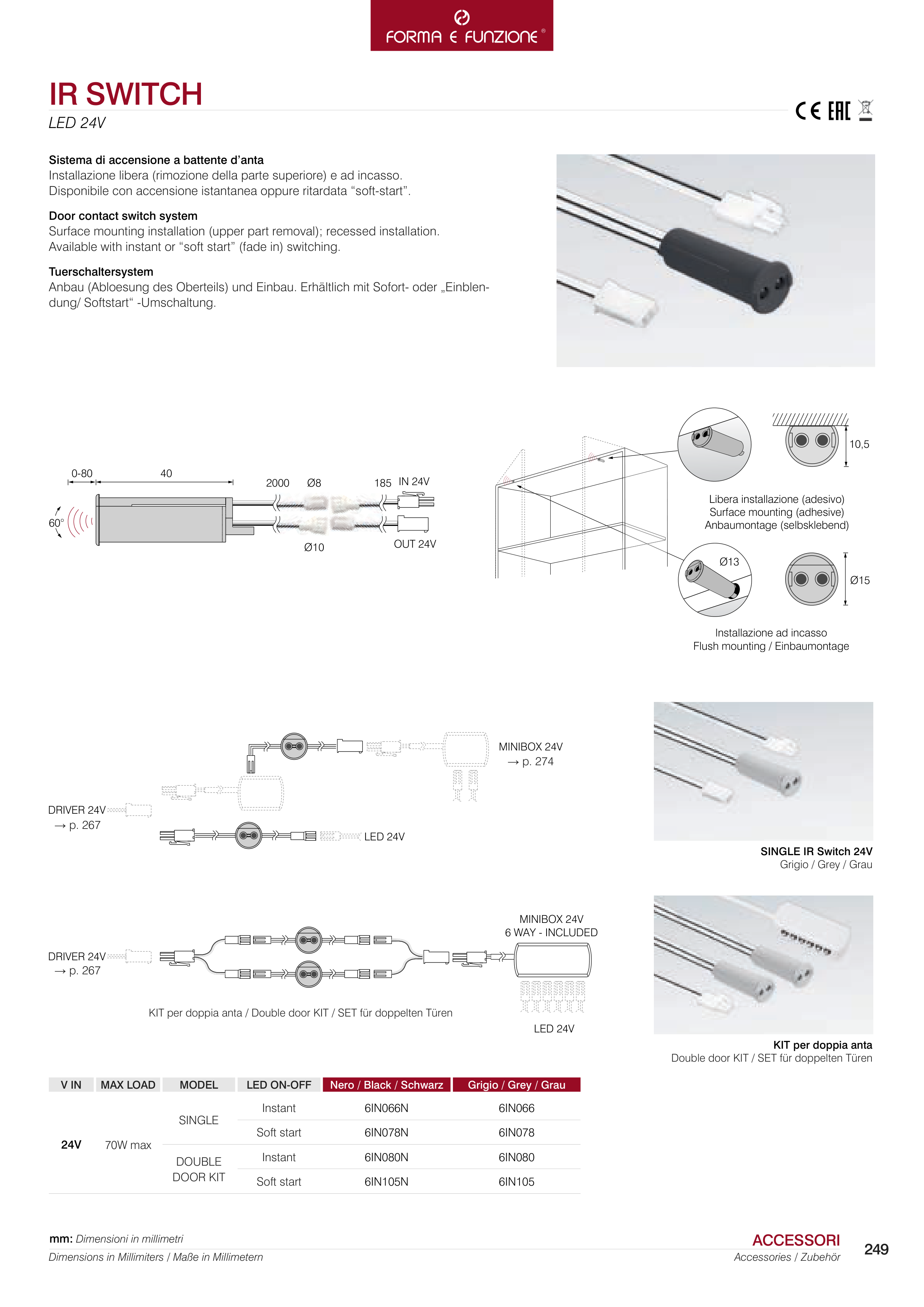

SINGLE IR Switch 24V
Grigio / Grey / Grau
KIT per doppia anta
Double door KIT / SET für doppelten Türen
Ø15
10,5
10,5
Libera installazione (adesivo)
Surface mounting (adhesive)
Anbaumontage (selbsklebend)
Installazione ad incasso
Installazione ad incasso
Flush mounting / Einbaumontage
Flush mounting / Einbaumontage
Ø13
Ø13
40
60°
60°
0-80
IN 24V
OUT 24V
IR SWITCH
LED 24V
Sistema di accensione a battente d’anta
Installazione libera (rimozione della parte superiore) e ad incasso.
Disponibile con accensione istantanea oppure ritardata “soft-start”.
Door contact switch system
Surface mounting installation (upper part removal); recessed installation.
Available with instant or “soft start” (fade in) switching.
Tuerschaltersystem
Anbau (Abloesung des Oberteils) und Einbau. Erhältlich mit Sofort- oder „Einblen-
dung/ Softstart“ -Umschaltung.
70W max
Instant
Instant
SINGLE
DOUBLE
DOOR KIT
Soft start
Soft start
24V
MAX LOAD
LED ON-OFF
MODEL
V IN
6IN066N
6IN080N
6IN078N
6IN105N
6IN066
6IN080
6IN078
6IN105
2000
185
DRIVER 24V
LED 24V
MINIBOX 24V
DRIVER 24V
LED 24V
MINIBOX 24V
6 WAY - INCLUDED
Nero / Black / Schwarz
Grigio / Grey / Grau
→ p. 267
→ p. 267
→ p. 274
KIT per doppia anta / Double door KIT / SET für doppelten Türen
Ø8
Ø10
