247
ACCESSORI
Accessories / Zubehör
mm: Dimensioni in millimetri
Dimensions in Millimiters / Maße in Millimetern

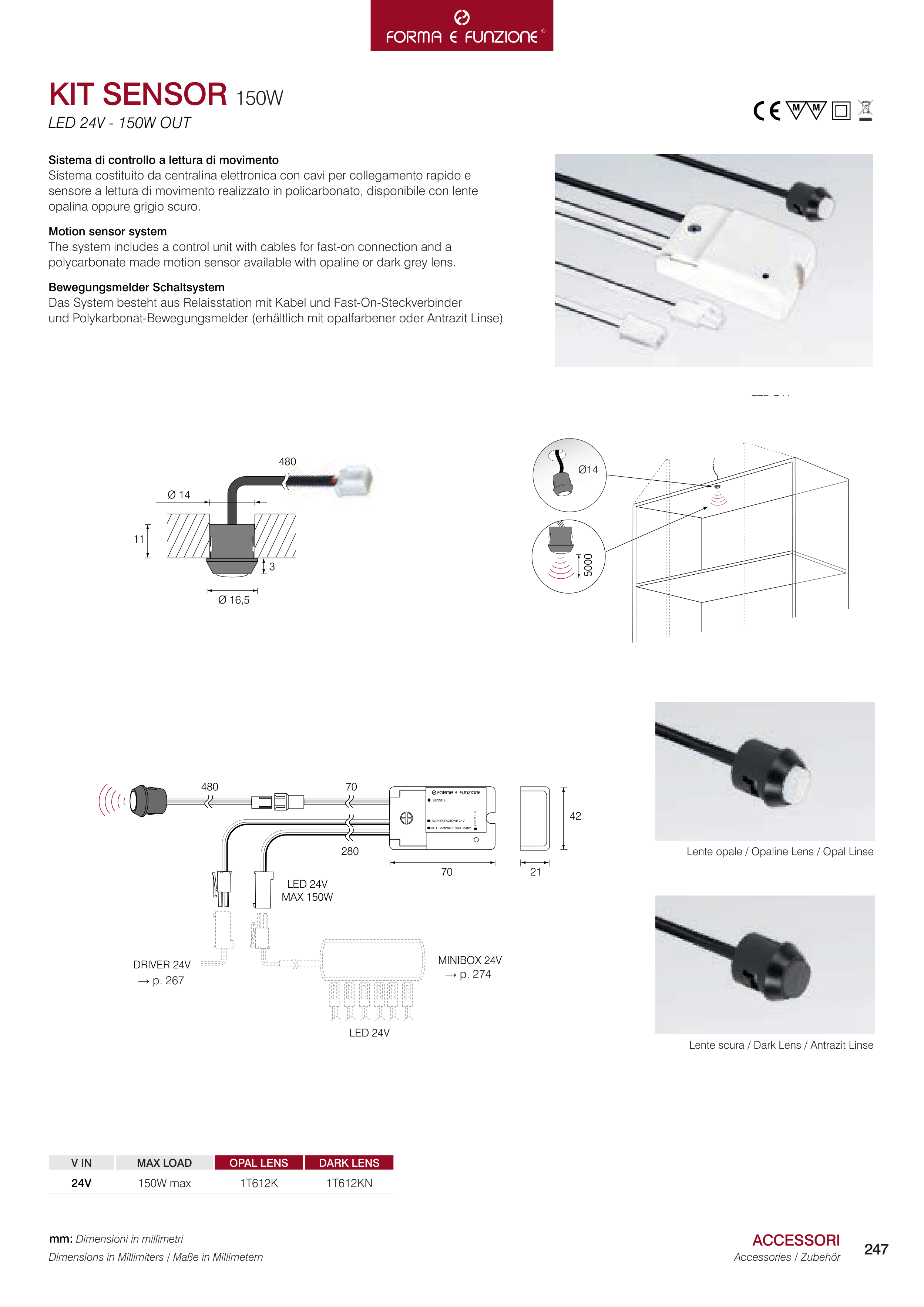

KIT SENSOR 150W
LED 24V - 150W OUT
11
Ø 16,5
Ø 14
3
70
21
480
70
280
DRIVER 24V
LED 24V
MINIBOX 24V
LED 24V
MAX 150W
42
Sistema di controllo a lettura di movimento
Sistema costituito da centralina elettronica con cavi per collegamento rapido e
sensore a lettura di movimento realizzato in policarbonato, disponibile con lente
opalina oppure grigio scuro.
Motion sensor system
The system includes a control unit with cables for fast-on connection and a
polycarbonate made motion sensor available with opaline or dark grey lens.
Bewegungsmelder Schaltsystem
Das System besteht aus Relaisstation mit Kabel und Fast-On-Steckverbinder
und Polykarbonat-Bewegungsmelder (erhältlich mit opalfarbener oder Antrazit Linse)
→ p. 267
→ p. 274
OPAL LENS
DARK LENS
1T612K
1T612KN
24V
V IN
150W max
MAX LOAD
5000
LED 24V
Ø14
Lente opale / Opaline Lens / Opal Linse
Lente scura / Dark Lens / Antrazit Linse
480
