66

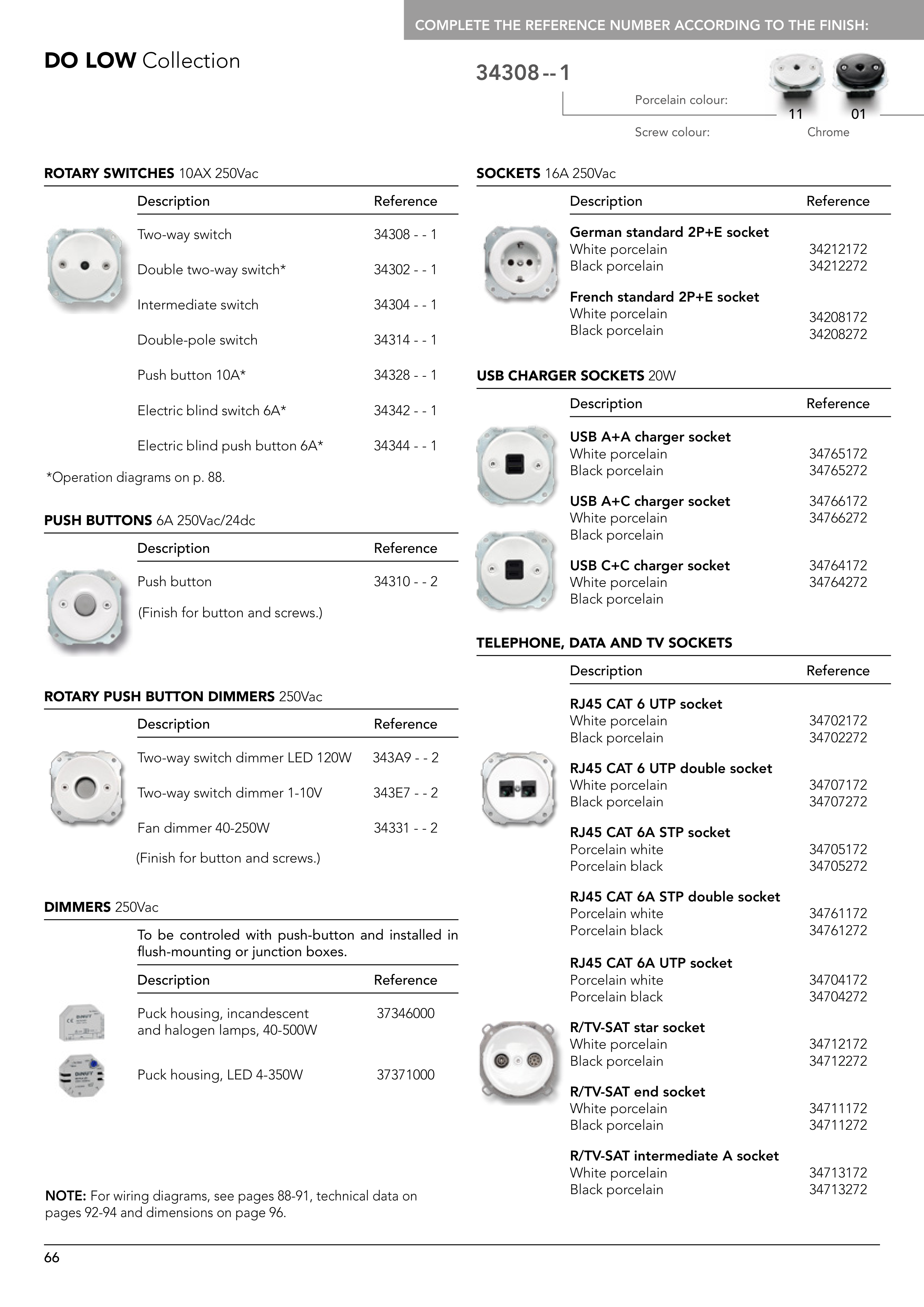

DO LOW Collection
34308 1
--
COMPLETE THE REFERENCE NUMBER ACCORDING TO THE FINISH:
11
01
Two-way switch
34308 - - 1
Double two-way switch*
34302 - - 1
Intermediate switch
34304 - - 1
Double-pole switch
34314 - - 1
Push button 10A*
34328 - - 1
Electric blind switch 6A*
34342 - - 1
Electric blind push button 6A*
34344 - - 1
ROTARY SWITCHES 10AX 250Vac
Description
Reference
German standard 2P+E socket
White porcelain
Black porcelain
34212172
34212272
French standard 2P+E socket
White porcelain
Black porcelain
34208172
34208272
SOCKETS 16A 250Vac
Description
Reference
RJ45 CAT 6 UTP socket
White porcelain
Black porcelain
34702172
34702272
RJ45 CAT 6 UTP double socket
White porcelain
Black porcelain
34707172
34707272
RJ45 CAT 6A STP socket
Porcelain white
Porcelain black
34705172
34705272
RJ45 CAT 6A STP double socket
Porcelain white
Porcelain black
34761172
34761272
RJ45 CAT 6A UTP socket
Porcelain white
Porcelain black
34704172
34704272
R/TV-SAT star socket
White porcelain
Black porcelain
34712172
34712272
R/TV-SAT end socket
White porcelain
Black porcelain
34711172
34711272
R/TV-SAT intermediate A socket
White porcelain
Black porcelain
34713172
34713272
USB A+A charger socket
White porcelain
Black porcelain
34765172
34765272
USB A+C charger socket
White porcelain
Black porcelain
34766172
34766272
USB C+C charger socket
White porcelain
Black porcelain
34764172
34764272
USB CHARGER SOCKETS 20W
Description
Reference
TELEPHONE, DATA AND TV SOCKETS
Description
Reference
DIMMERS 250Vac
To be controled with push-button and installed in
flush-mounting or junction boxes.
Puck housing, incandescent
and halogen lamps, 40-500W
37346000
Puck housing, LED 4-350W
37371000
Description
Reference
NOTE: For wiring diagrams, see pages 88-91, technical data on
pages 92-94 and dimensions on page 96.
*Operation diagrams on p. 88.
Chrome
Screw colour:
Porcelain colour:
Push button
34310 - - 2
PUSH BUTTONS 6A 250Vac/24dc
Description
Reference
Two-way switch dimmer LED 120W
343A9 - - 2
Two-way switch dimmer 1-10V
343E7 - - 2
Fan dimmer 40-250W
34331 - - 2
ROTARY PUSH BUTTON DIMMERS 250Vac
Description
Reference
(Finish for button and screws.)
(Finish for button and screws.)
