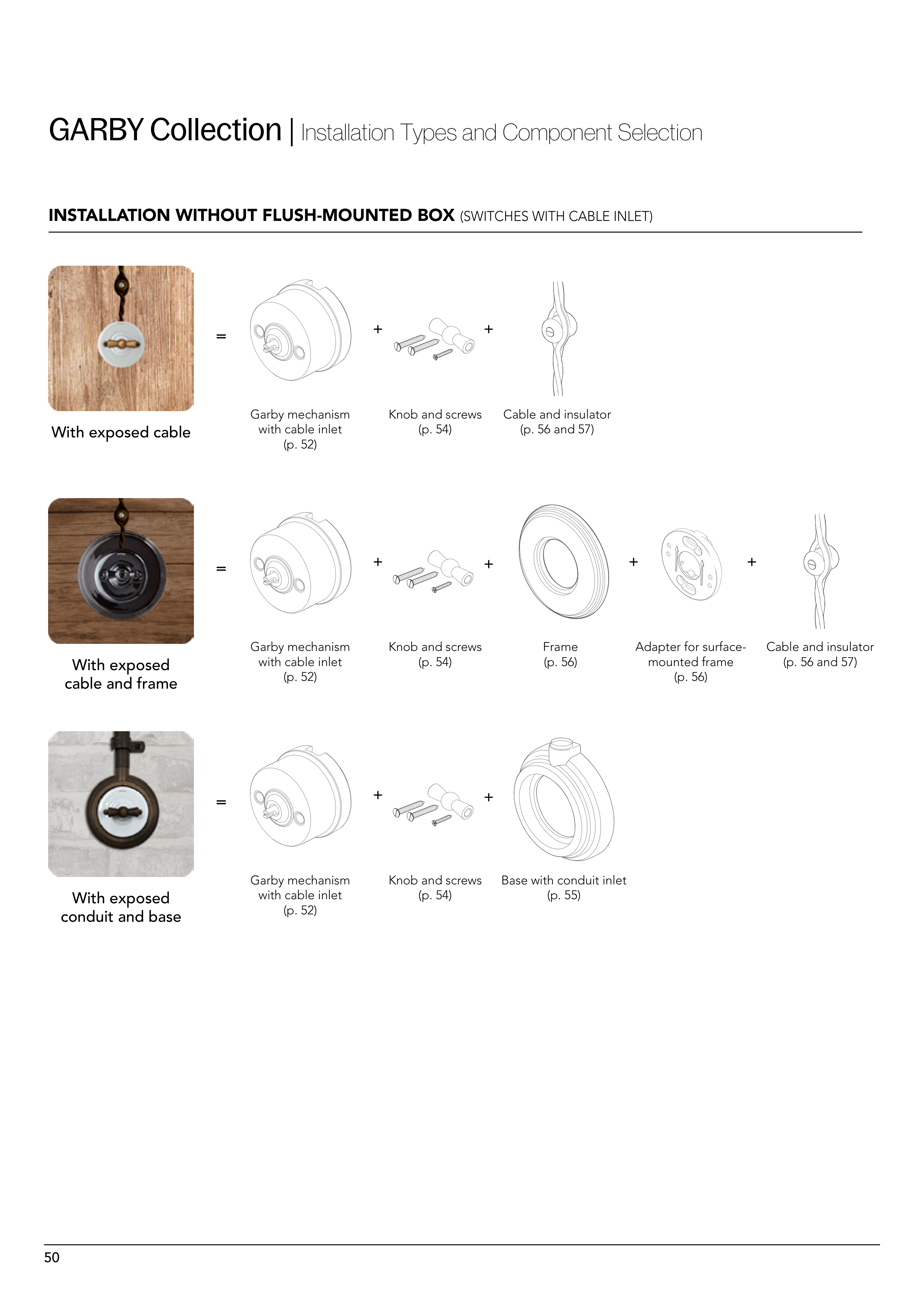

GARBY Collection | Installation Types and Component Selection
INSTALLATION WITHOUT FLUSH-MOUNTED BOX (SWITCHES WITH CABLE INLET)
+
+
+
=
=
=
+
+
+
+
+
With exposed cable
With exposed
cable and frame
With exposed
conduit and base
Garby mechanism
with cable inlet
(p. 52)
Garby mechanism
with cable inlet
(p. 52)
Garby mechanism
with cable inlet
(p. 52)
Knob and screws
(p. 54)
Knob and screws
(p. 54)
Knob and screws
(p. 54)
Cable and insulator
(p. 56 and 57)
Frame
(p. 56)
Base with conduit inlet
(p. 55)
Adapter for surface-
mounted frame
(p. 56)
Cable and insulator
(p. 56 and 57)
