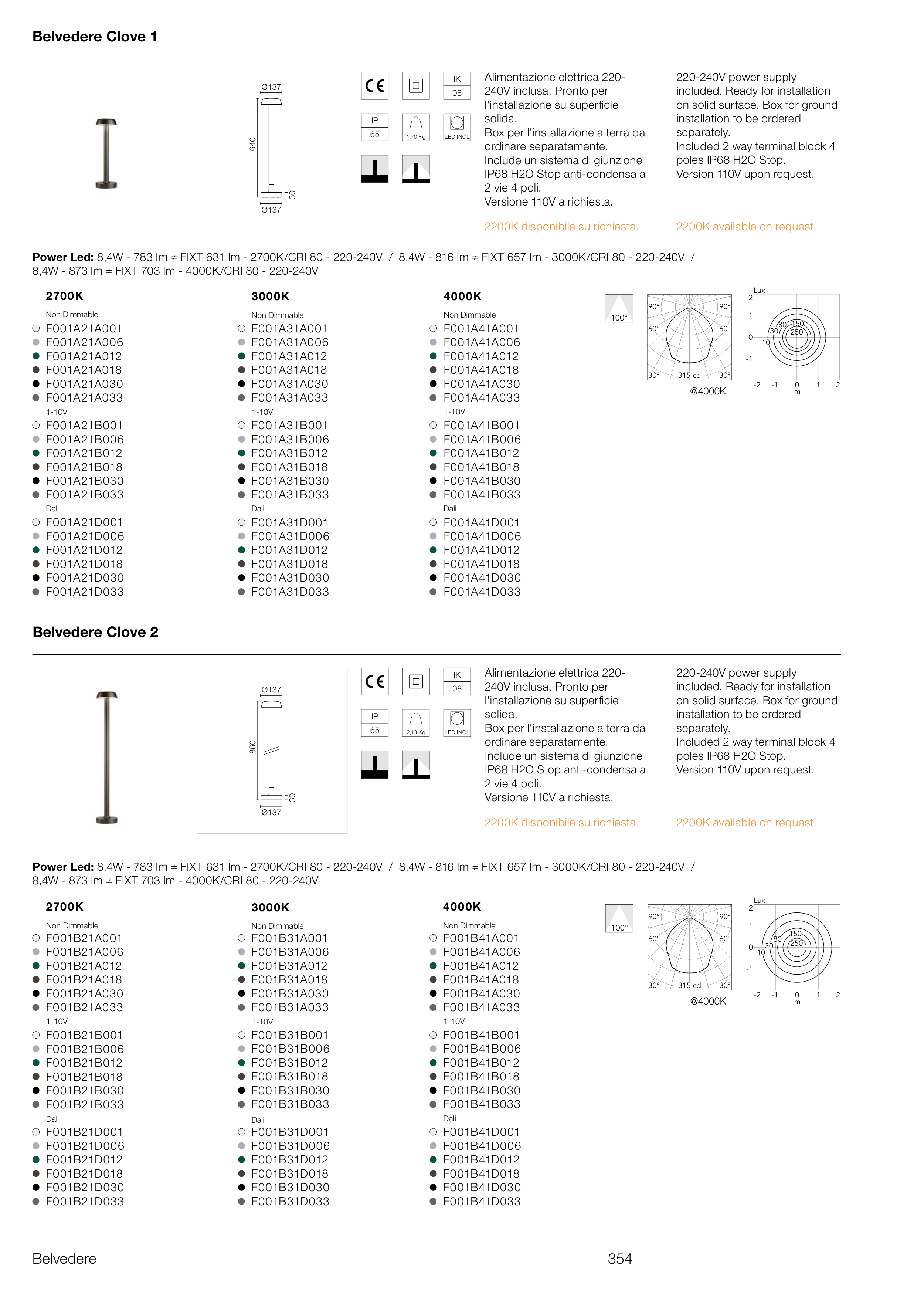

Belvedere
Belvedere Clove 1
Ø137
Ø137
640
30
65
IP
1,70 Kg
LED INCL
10
30
80
250
-2
-1
0
1
2
m
Lux
-1
0
1
2
100°
90º
60º
30º
90º
60º
30º
315 cd
150
-2
-1
0
1
2
m
Lux
-1
0
1
2
10
30
80
250
150
100°
90º
60º
30º
90º
60º
30º
315 cd
Power Led: 8,4W - 783 lm ≠ FIXT 631 lm - 2700K/CRI 80 - 220-240V / 8,4W - 816 lm ≠ FIXT 657 lm - 3000K/CRI 80 - 220-240V /
8,4W - 873 lm ≠ FIXT 703 lm - 4000K/CRI 80 - 220-240V
F001A21A001
F001A21A006
F001A21A012
F001A21A018
F001A21A030
F001A21A033
F001A21B001
F001A21B006
F001A21B012
F001A21B018
F001A21B030
F001A21B033
F001A21D001
F001A21D006
F001A21D012
F001A21D018
F001A21D030
F001A21D033
2700K
Non Dimmable
1-10V
Dali
F001A31D001
F001A31D006
F001A31D012
F001A31D018
F001A31D030
F001A31D033
F001A31A001
F001A31A006
F001A31A012
F001A31A018
F001A31A030
F001A31A033
F001A31B001
F001A31B006
F001A31B012
F001A31B018
F001A31B030
F001A31B033
3000K
Dali
Non Dimmable
1-10V
F001A41D001
F001A41D006
F001A41D012
F001A41D018
F001A41D030
F001A41D033
F001A41A001
F001A41A006
F001A41A012
F001A41A018
F001A41A030
F001A41A033
F001A41B001
F001A41B006
F001A41B012
F001A41B018
F001A41B030
F001A41B033
4000K
Dali
Non Dimmable
1-10V
Ø137
Ø137
860
30
Belvedere Clove 2
65
IP
2,10 Kg
LED INCL
F001B21A001
F001B21A006
F001B21A012
F001B21A018
F001B21A030
F001B21A033
F001B21B001
F001B21B006
F001B21B012
F001B21B018
F001B21B030
F001B21B033
F001B21D001
F001B21D006
F001B21D012
F001B21D018
F001B21D030
F001B21D033
F001B31D001
F001B31D006
F001B31D012
F001B31D018
F001B31D030
F001B31D033
F001B41D001
F001B41D006
F001B41D012
F001B41D018
F001B41D030
F001B41D033
F001B41A001
F001B41A006
F001B41A012
F001B41A018
F001B41A030
F001B41A033
F001B41B001
F001B41B006
F001B41B012
F001B41B018
F001B41B030
F001B41B033
F001B31A001
F001B31A006
F001B31A012
F001B31A018
F001B31A030
F001B31A033
F001B31B001
F001B31B006
F001B31B012
F001B31B018
F001B31B030
F001B31B033
2700K
Non Dimmable
Non Dimmable
Non Dimmable
1-10V
Dali
Dali
Dali
1-10V
1-10V
3000K
4000K
Power Led: 8,4W - 783 lm ≠ FIXT 631 lm - 2700K/CRI 80 - 220-240V / 8,4W - 816 lm ≠ FIXT 657 lm - 3000K/CRI 80 - 220-240V /
8,4W - 873 lm ≠ FIXT 703 lm - 4000K/CRI 80 - 220-240V
08
IK
08
IK
@4000K
@4000K
354
Alimentazione elettrica 220-
240V inclusa. Pronto per
l'installazione su superficie
solida.
Box per l'installazione a terra da
ordinare separatamente.
Include un sistema di giunzione
IP68 H2O Stop anti-condensa a
2 vie 4 poli.
Versione 110V a richiesta.
220-240V power supply
included. Ready for installation
on solid surface. Box for ground
installation to be ordered
separately.
Included 2 way terminal block 4
poles IP68 H2O Stop.
Version 110V upon request.
Alimentazione elettrica 220-
240V inclusa. Pronto per
l'installazione su superficie
solida.
Box per l'installazione a terra da
ordinare separatamente.
Include un sistema di giunzione
IP68 H2O Stop anti-condensa a
2 vie 4 poli.
Versione 110V a richiesta.
220-240V power supply
included. Ready for installation
on solid surface. Box for ground
installation to be ordered
separately.
Included 2 way terminal block 4
poles IP68 H2O Stop.
Version 110V upon request.
2200K available on request.
2200K disponibile su richiesta.
2200K available on request.
2200K disponibile su richiesta.
