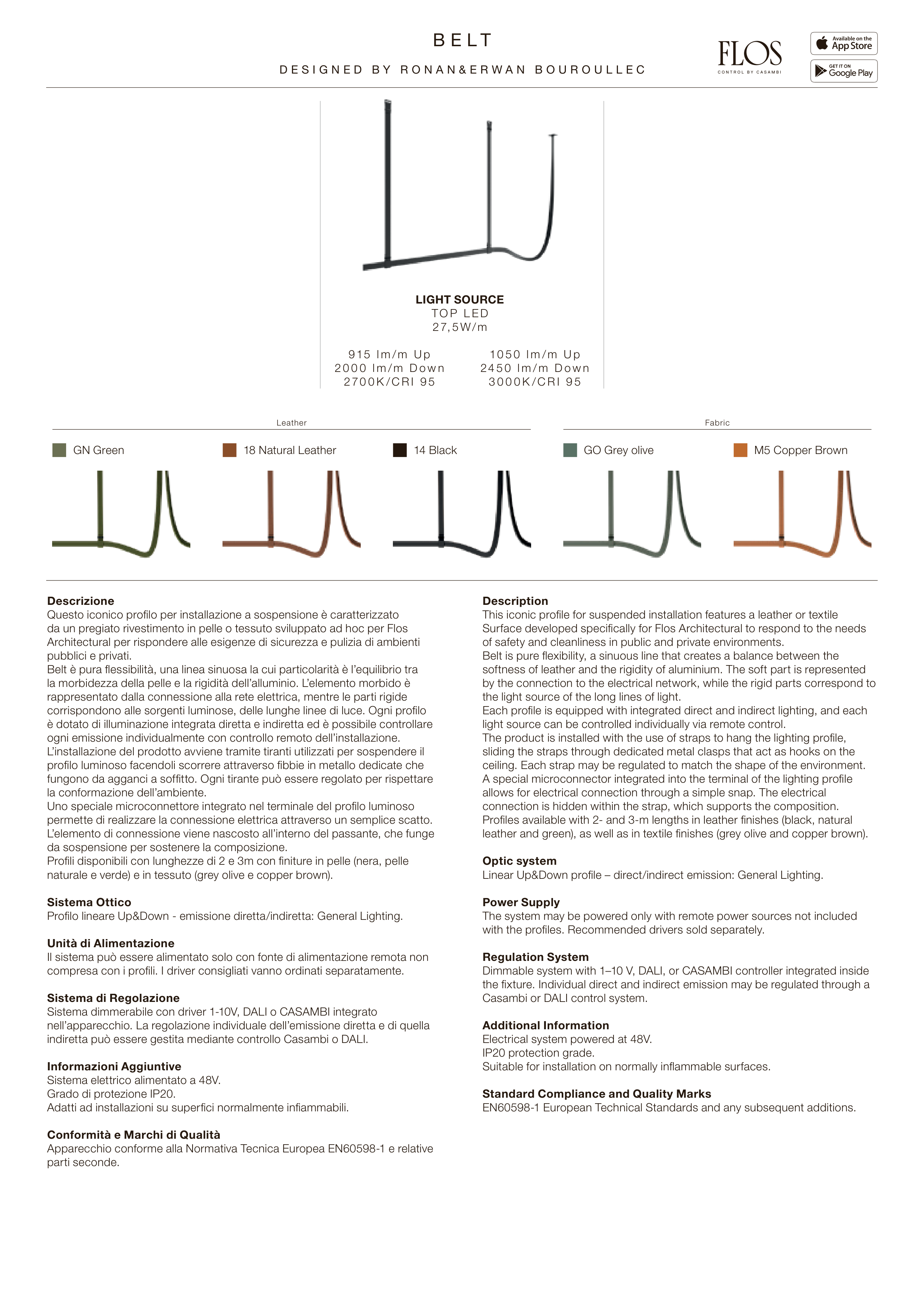

B E L T
D E S I G N E D B Y R O N A N & E R W A N B O U R O U L L E C
915 l m /m U p
2 0 0 0 l m /m D o w n
270 0 K /C R I 9 5
10 5 0 l m /m U p
24 5 0 l m /m D o w n
3 0 0 0 K /C R I 9 5
LIGHT SOURCE
TO P L E D
27, 5 W/m
Leather
Fabric
GN Green
18 Natural Leather
14 Black
GO Grey olive
M5 Copper Brown
Descrizione
Questo iconico profilo per installazione a sospensione è caratterizzato
da un pregiato rivestimento in pelle o tessuto sviluppato ad hoc per Flos
Architectural per rispondere alle esigenze di sicurezza e pulizia di ambienti
pubblici e privati.
Belt è pura flessibilità, una linea sinuosa la cui particolarità è l’equilibrio tra
la morbidezza della pelle e la rigidità dell’alluminio. L’elemento morbido è
rappresentato dalla connessione alla rete elettrica, mentre le parti rigide
corrispondono alle sorgenti luminose, delle lunghe linee di luce. Ogni profilo
è dotato di illuminazione integrata diretta e indiretta ed è possibile controllare
ogni emissione individualmente con controllo remoto dell’installazione.
L’installazione del prodotto avviene tramite tiranti utilizzati per sospendere il
profilo luminoso facendoli scorrere attraverso fibbie in metallo dedicate che
fungono da agganci a soffitto. Ogni tirante può essere regolato per rispettare
la conformazione dell’ambiente.
Uno speciale microconnettore integrato nel terminale del profilo luminoso
permette di realizzare la connessione elettrica attraverso un semplice scatto.
L’elemento di connessione viene nascosto all’interno del passante, che funge
da sospensione per sostenere la composizione.
Profili disponibili con lunghezze di 2 e 3m con finiture in pelle (nera, pelle
naturale e verde) e in tessuto (grey olive e copper brown).
Sistema Ottico
Profilo lineare Up&Down - emissione diretta/indiretta: General Lighting.
Unità di Alimentazione
Il sistema può essere alimentato solo con fonte di alimentazione remota non
compresa con i profili. I driver consigliati vanno ordinati separatamente.
Sistema di Regolazione
Sistema dimmerabile con driver 1-10V, DALI o CASAMBI integrato
nell’apparecchio. La regolazione individuale dell’emissione diretta e di quella
indiretta può essere gestita mediante controllo Casambi o DALI.
Informazioni Aggiuntive
Sistema elettrico alimentato a 48V.
Grado di protezione IP20.
Adatti ad installazioni su superfici normalmente infiammabili.
Conformità e Marchi di Qualità
Apparecchio conforme alla Normativa Tecnica Europea EN60598-1 e relative
parti seconde.
Description
This iconic profile for suspended installation features a leather or textile
Surface developed specifically for Flos Architectural to respond to the needs
of safety and cleanliness in public and private environments.
Belt is pure flexibility, a sinuous line that creates a balance between the
softness of leather and the rigidity of aluminium. The soft part is represented
by the connection to the electrical network, while the rigid parts correspond to
the light source of the long lines of light.
Each profile is equipped with integrated direct and indirect lighting, and each
light source can be controlled individually via remote control.
The product is installed with the use of straps to hang the lighting profile,
sliding the straps through dedicated metal clasps that act as hooks on the
ceiling. Each strap may be regulated to match the shape of the environment.
A special microconnector integrated into the terminal of the lighting profile
allows for electrical connection through a simple snap. The electrical
connection is hidden within the strap, which supports the composition.
Profiles available with 2- and 3-m lengths in leather finishes (black, natural
leather and green), as well as in textile finishes (grey olive and copper brown).
Optic system
Linear Up&Down profile – direct/indirect emission: General Lighting.
Power Supply
The system may be powered only with remote power sources not included
with the profiles. Recommended drivers sold separately.
Regulation System
Dimmable system with 1–10 V, DALI, or CASAMBI controller integrated inside
the fixture. Individual direct and indirect emission may be regulated through a
Casambi or DALI control system.
Additional Information
Electrical system powered at 48V.
IP20 protection grade.
Suitable for installation on normally inflammable surfaces.
Standard Compliance and Quality Marks
EN60598-1 European Technical Standards and any subsequent additions.
