368
L I G H T S H A D O W
Dali Version
05.1102.40A
05.1102.14A
05.1101.40A
05.1101.14A
05.1106.40BDA
05.1106.14BDA
05.1106.40A
05.1106.14A
05.1107.40A
05.1107.14A
Dali Version
05.1101.40BDA
05.1101.14BDA
Dali Version
05.1102.40BDA
05.1102.14BDA
Dali Version
05.1107.40BDA
05.1107.14BDA
Dali Version
Dali Version
Dali Version
2700K
Optic Spot
Optic Spot
E
I
3000K
E
I
Dali Version
Dali Version
Non Dimmable
Non Dimmable
Non Dimmable
Non Dimmable
Non Dimmable
Non Dimmable
Non Dimmable
Non Dimmable
Non Dimmable
Non Dimmable
05.1100.40A
05.1100.14A
05.1105.40BDA
05.1105.14BDA
05.1105.40A
05.1105.14A
Dali Version
05.1100.40BDA
05.1100.14BDA
@White (40)
@White (40)
55
42
147
37x142
25 max

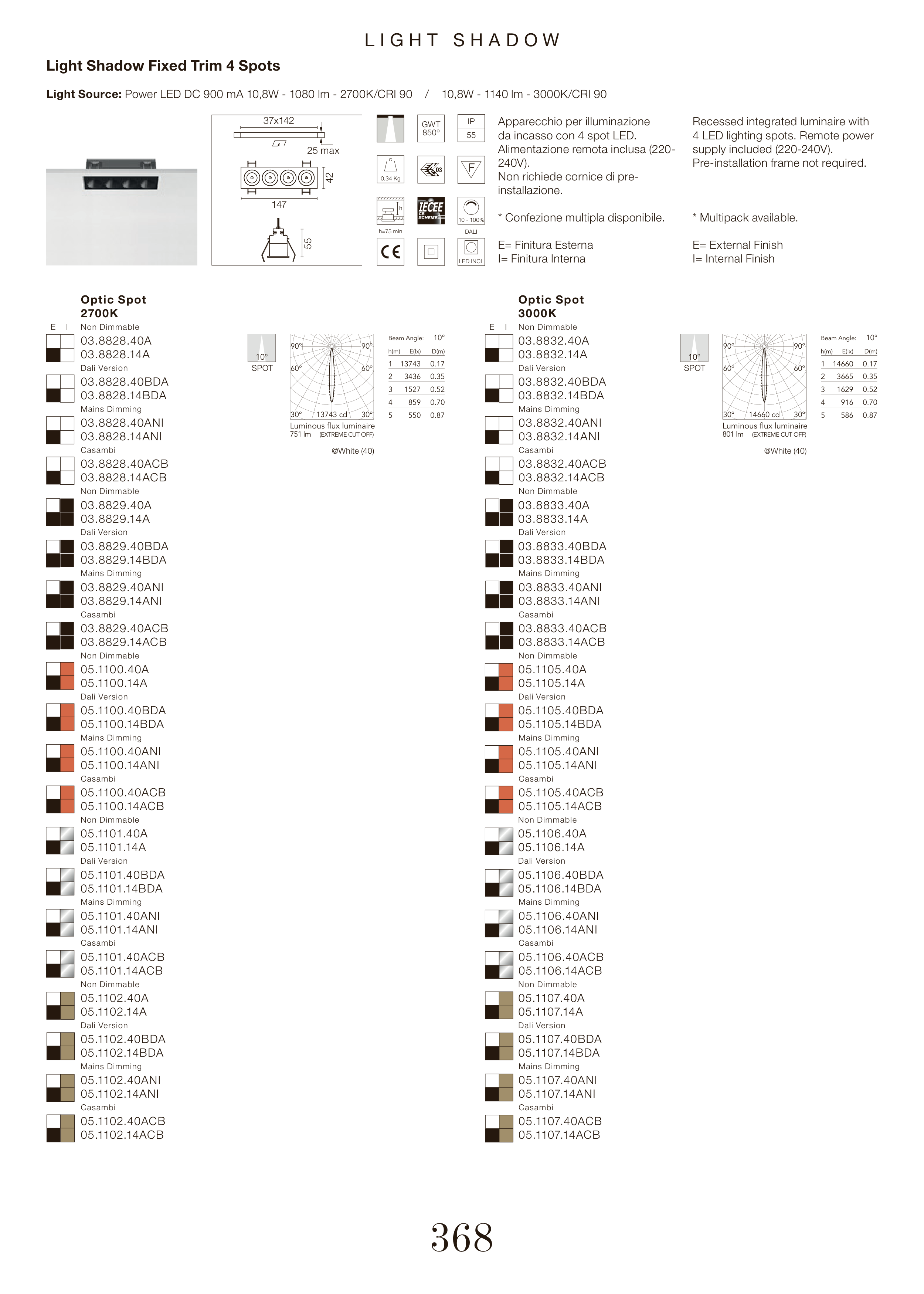

Light Shadow Fixed Trim 4 Spots
Light Source: Power LED DC 900 mA 10,8W - 1080 lm - 2700K/CRI 90 / 10,8W - 1140 lm - 3000K/CRI 90
0,34 Kg
GWT
850º
10 - 100%
DALI
h=75 min
LED INCL
55
IP
10°
90º
60º
30º
90º
60º
30º
14660 cd
Beam Angle:
10°
h(m)
E(lx)
D(m)
1
14660
0.17
2
3665
0.35
3
1629
0.52
4
916
0.70
5
586
0.87
Luminous flux luminaire
801 lm
(EXTREME CUT OFF)
10°
90º
60º
30º
90º
60º
30º
13743 cd
Beam Angle:
10°
h(m)
E(lx)
D(m)
1
13743
0.17
2
3436
0.35
3
1527
0.52
4
859
0.70
5
550
0.87
Luminous flux luminaire
751 lm
(EXTREME CUT OFF)
SPOT
SPOT
03.8829.40A
03.8829.14A
03.8833.40A
03.8833.14A
03.8833.40BDA
03.8833.14BDA
03.8829.40BDA
03.8829.14BDA
03.8828.40A
03.8828.14A
03.8832.40A
03.8832.14A
03.8832.40BDA
03.8832.14BDA
03.8828.40BDA
03.8828.14BDA
03.8828.40ANI
03.8828.14ANI
03.8829.40ANI
03.8829.14ANI
05.1100.40ANI
05.1100.14ANI
05.1101.40ANI
05.1101.14ANI
05.1102.40ANI
05.1102.14ANI
03.8828.40ACB
03.8828.14ACB
03.8829.40ACB
03.8829.14ACB
05.1100.40ACB
05.1100.14ACB
05.1101.40ACB
05.1101.14ACB
05.1102.40ACB
05.1102.14ACB
Casambi
Casambi
Casambi
Casambi
Casambi
Mains Dimming
Mains Dimming
Mains Dimming
Mains Dimming
Mains Dimming
03.8832.40ANI
03.8832.14ANI
03.8833.40ANI
03.8833.14ANI
05.1105.40ANI
05.1105.14ANI
05.1106.40ANI
05.1106.14ANI
05.1107.40ANI
05.1107.14ANI
03.8832.40ACB
03.8832.14ACB
03.8833.40ACB
03.8833.14ACB
05.1105.40ACB
05.1105.14ACB
05.1106.40ACB
05.1106.14ACB
05.1107.40ACB
05.1107.14ACB
Casambi
Casambi
Casambi
Casambi
Casambi
Mains Dimming
Mains Dimming
Mains Dimming
Mains Dimming
Mains Dimming
Apparecchio per illuminazione
da incasso con 4 spot LED.
Alimentazione remota inclusa (220-
240V).
Non richiede cornice di pre-
installazione.
* Confezione multipla disponibile.
E= Finitura Esterna
I= Finitura Interna
Recessed integrated luminaire with
4 LED lighting spots. Remote power
supply included (220-240V).
Pre-installation frame not required.
* Multipack available.
E= External Finish
I= Internal Finish
