T H E T R A C K I N G P O W E R E V O — I N S T A L L A T I O N
N E W
Per garantire la sicurezza elettrica dell’impianto, il profilo di Tracking Power EVO è asimmetrico e offre una forma unica per l’installazione degli apparecchi
d’illuminazione.

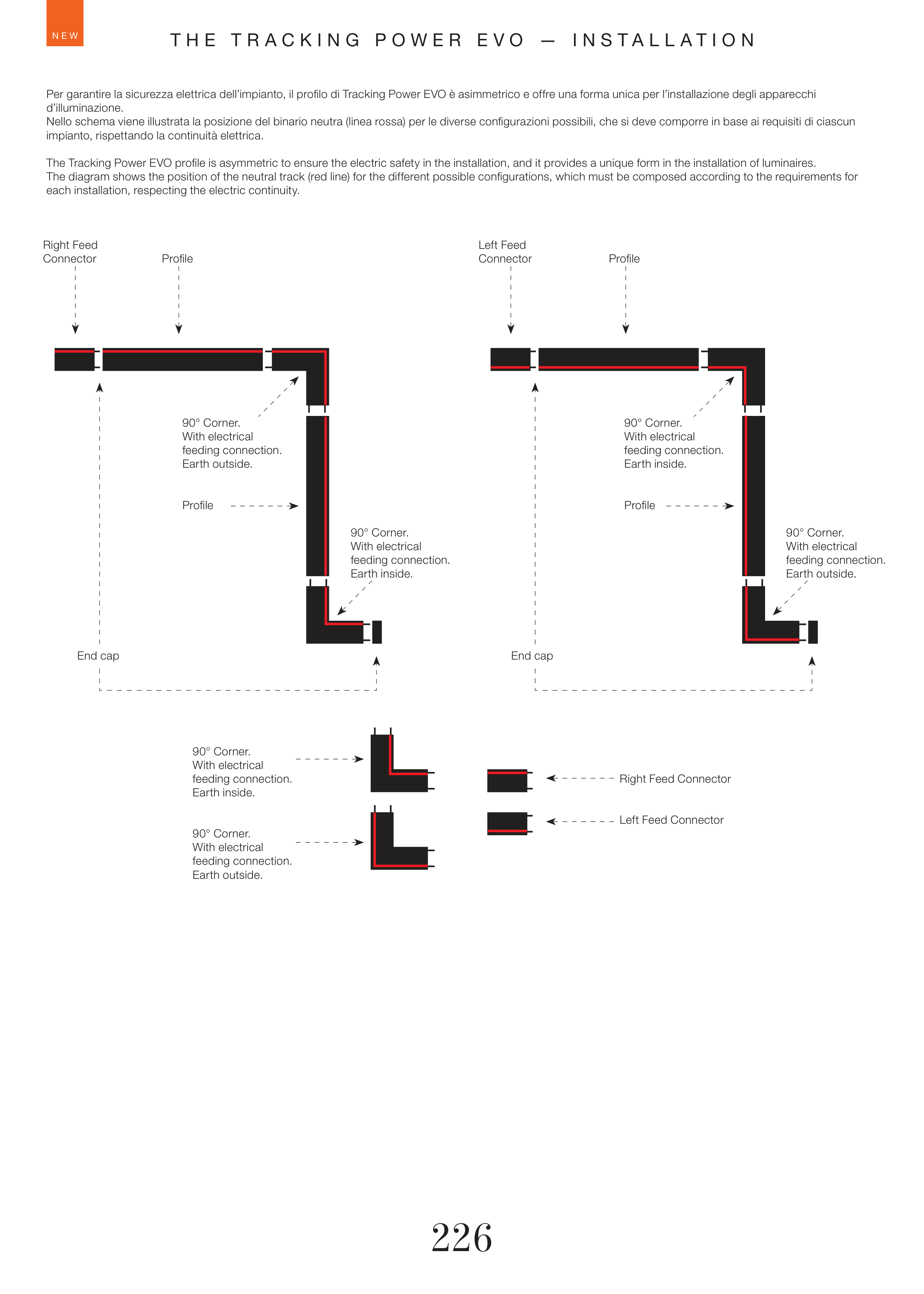

Nello schema viene illustrata la posizione del binario neutra (linea rossa) per le diverse configurazioni possibili, che si deve comporre in base ai requisiti di ciascun
impianto, rispettando la continuità elettrica.
The Tracking Power EVO profile is asymmetric to ensure the electric safety in the installation, and it provides a unique form in the installation of luminaires.
The diagram shows the position of the neutral track (red line) for the different possible configurations, which must be composed according to the requirements for
each installation, respecting the electric continuity.
