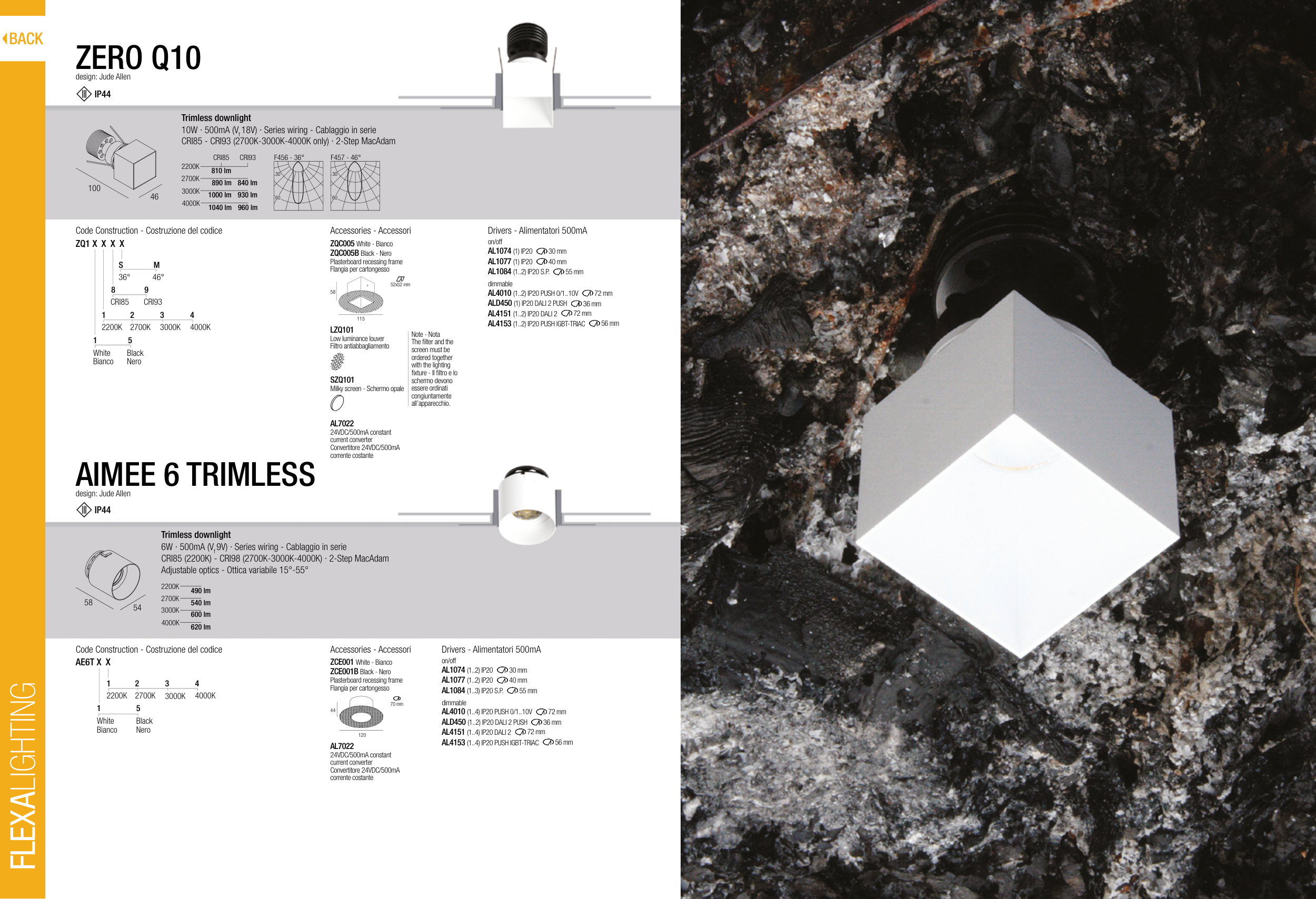

ZERO Q10
design: Jude Allen
IP44
Drivers - Alimentatori 500mA
on/off
dimmable
AL1074 (1) IP20
AL1077 (1) IP20
AL1084 (1..2) IP20 S.P.
AL4010 (1..2) IP20 PUSH 0/1..10V
ALD450 (1) IP20 DALI 2 PUSH
AL4151 (1..2) IP20 DALI 2
AL4153 (1..2) IP20 PUSH IGBT-TRIAC
30 mm
40 mm
55 mm
72 mm
72 mm
36 mm
56 mm
Code Construction - Costruzione del codice
S
36°
M
46°
ZQ1 X X X X
8
CRI85
9
CRI93
1
White
Bianco
5
Black
Nero
1
2200K
2
2700K
3
4
3000K
4000K
100
46
Accessories - Accessori
SZQ101
Milky screen - Schermo opale
LZQ101
Low luminance louver
Filtro antiabbagliamento
Note - Nota
The flter and the
screen must be
ordered together
with the lighting
fxture - Il fltro e lo
schermo devono
essere ordinati
congiuntamente
all’apparecchio.
AL7022
24VDC/500mA constant
current converter
Convertitore 24VDC/500mA
corrente costante
ZQC005 White - Bianco
ZQC005B Black - Nero
Plasterboard recessing frame
Flangia per cartongesso
115
58
52x52 mm
58
54
Drivers - Alimentatori 500mA
on/off
dimmable
AL1074 (1..2) IP20
AL1077 (1..2) IP20
AL1084 (1..3) IP20 S.P.
AL4010 (1..4) IP20 PUSH 0/1..10V
ALD450 (1..2) IP20 DALI 2 PUSH
AL4151 (1..4) IP20 DALI 2
AL4153 (1..4) IP20 PUSH IGBT-TRIAC
30 mm
40 mm
55 mm
72 mm
72 mm
36 mm
56 mm
Code Construction - Costruzione del codice
AIMEE 6 TRIMLESS
design: Jude Allen
IP44
AE6T X X
1
White
Bianco
5
Black
Nero
1
2200K
2
2700K
3
4
3000K
4000K
Accessories - Accessori
AL7022
24VDC/500mA constant
current converter
Convertitore 24VDC/500mA
corrente costante
70 mm
120
44
ZCE001 White - Bianco
ZCE001B Black - Nero
Plasterboard recessing frame
Flangia per cartongesso
Trimless downlight
10W · 500mA (Vf 18V) · Series wiring - Cablaggio in serie
CRI85 - CRI93 (2700K-3000K-4000K only) · 2-Step MacAdam
F456 - 36°
F457 - 46°
30
60
30
60
2200K
2700K
3000K
CRI85
CRI93
810 lm
890 lm
840 lm
1000 lm
930 lm
4000K
1040 lm
960 lm
Trimless downlight
6W · 500mA (Vf 9V) · Series wiring - Cablaggio in serie
CRI85 (2200K) - CRI98 (2700K-3000K-4000K) · 2-Step MacAdam
Adjustable optics - Ottica variabile 15°-55°
2700K
3000K
4000K
540 lm
600 lm
620 lm
2200K
490 lm
