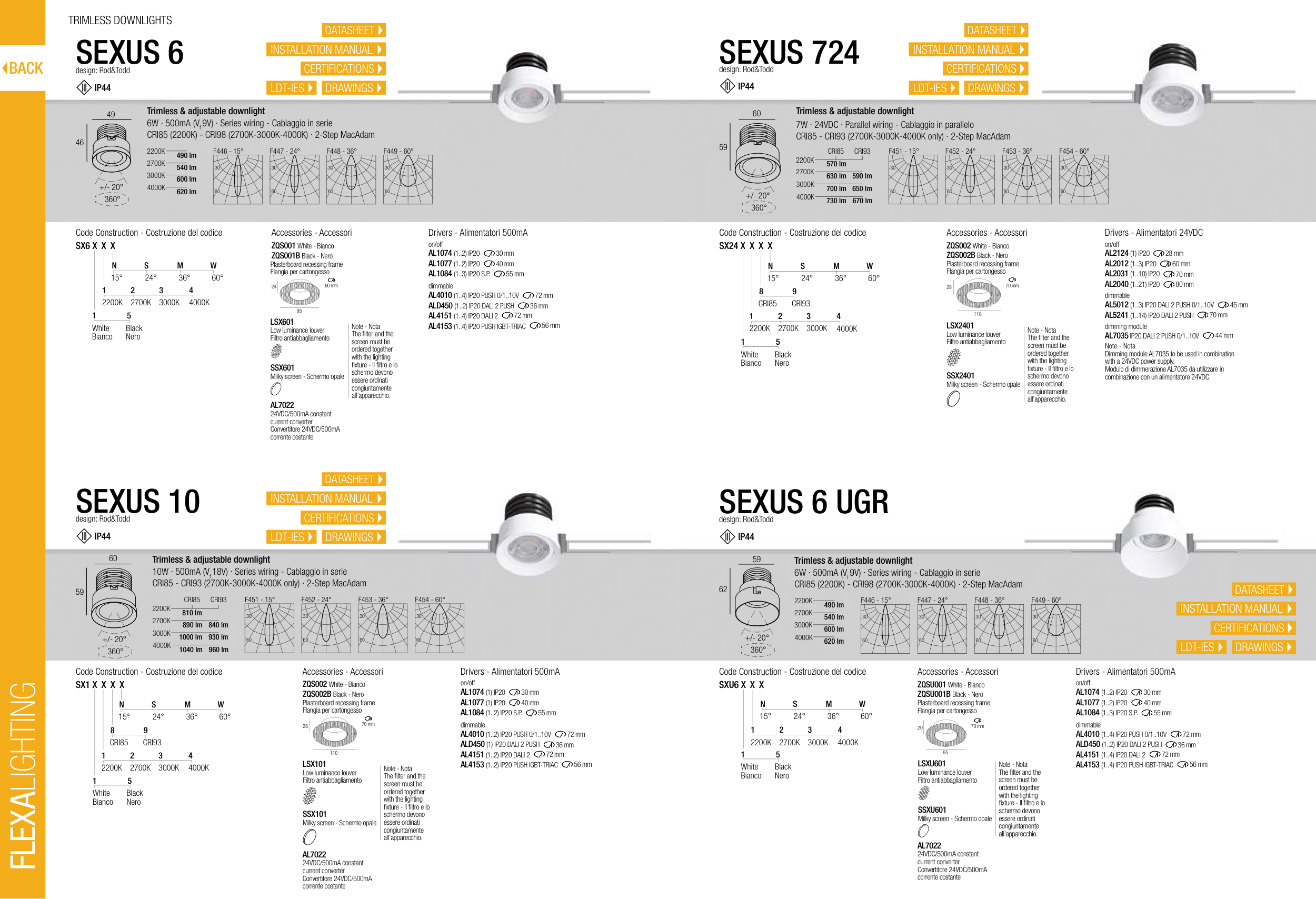

TRIMLESS DOWNLIGHTS
136
Drivers - Alimentatori 500mA
on/off
dimmable
AL1074 (1) IP20
AL1077 (1) IP20
AL1084 (1..2) IP20 S.P.
AL4010 (1..2) IP20 PUSH 0/1..10V
ALD450 (1) IP20 DALI 2 PUSH
AL4151 (1..2) IP20 DALI 2
AL4153 (1..2) IP20 PUSH IGBT-TRIAC
30 mm
40 mm
55 mm
72 mm
72 mm
36 mm
56 mm
ZQS002 White - Bianco
ZQS002B Black - Nero
Plasterboard recessing frame
Flangia per cartongesso
110
70 mm
28
SEXUS 10
design: Rod&Todd
Code Construction - Costruzione del codice
IP44
Trimless & adjustable downlight
10W · 500mA (Vf 18V) · Series wiring - Cablaggio in serie
CRI85 - CRI93 (2700K-3000K-4000K only) · 2-Step MacAdam
60
59
+/- 20°
360°
F451 - 15°
F452 - 24°
F453 - 36°
F454 - 60°
30
60
30
60
30
60
30
60
AL7022
24VDC/500mA constant
current converter
Convertitore 24VDC/500mA
corrente costante
Accessories - Accessori
SSX101
Milky screen - Schermo opale
LSX101
Low luminance louver
Filtro antiabbagliamento
Note - Nota
The f lter and the
screen must be
ordered together
with the lighting
f xture - Il f ltro e lo
schermo devono
essere ordinati
congiuntamente
all’apparecchio.
2200K
2700K
3000K
CRI85
CRI93
810 lm
890 lm
840 lm
1000 lm
930 lm
4000K
1040 lm
960 lm
SX1 X X X X
1
White
Bianco
5
Black
Nero
8
CRI85
9
CRI93
N
15°
S
M
W
24°
36°
60°
2
1
2700K
2200K
3
3000K
4
4000K
Drivers - Alimentatori 500mA
on/off
dimmable
AL1074 (1..2) IP20
AL1077 (1..2) IP20
AL1084 (1..3) IP20 S.P.
AL4010 (1..4) IP20 PUSH 0/1..10V
ALD450 (1..2) IP20 DALI 2 PUSH
AL4151 (1..4) IP20 DALI 2
AL4153 (1..4) IP20 PUSH IGBT-TRIAC
30 mm
40 mm
55 mm
72 mm
72 mm
36 mm
56 mm
F446 - 15°
F447 - 24°
F448 - 36°
F449 - 60°
30
60
30
60
30
60
30
60
SEXUS 6
design: Rod&Todd
Code Construction - Costruzione del codice
IP44
Trimless & adjustable downlight
6W · 500mA (Vf 9V) · Series wiring - Cablaggio in serie
CRI85 (2200K) - CRI98 (2700K-3000K-4000K) · 2-Step MacAdam
49
46
+/- 20°
360°
Accessories - Accessori
60 mm
95
24
ZQS001 White - Bianco
ZQS001B Black - Nero
Plasterboard recessing frame
Flangia per cartongesso
AL7022
24VDC/500mA constant
current converter
Convertitore 24VDC/500mA
corrente costante
LSX601
SSX601
Low luminance louver
Filtro antiabbagliamento
Milky screen - Schermo opale
Note - Nota
The f lter and the
screen must be
ordered together
with the lighting
f xture - Il f ltro e lo
schermo devono
essere ordinati
congiuntamente
all’apparecchio.
2700K
3000K
4000K
540 lm
600 lm
620 lm
2200K
490 lm
SX6 X X X
1
White
Bianco
5
Black
Nero
N
15°
S
M
W
24°
36°
60°
2
1
2700K
2200K
3
3000K
4
4000K
137
Drivers - Alimentatori 500mA
on/off
dimmable
AL1074 (1..2) IP20
AL1077 (1..2) IP20
AL1084 (1..3) IP20 S.P.
AL4010 (1..4) IP20 PUSH 0/1..10V
ALD450 (1..2) IP20 DALI 2 PUSH
AL4151 (1..4) IP20 DALI 2
AL4153 (1..4) IP20 PUSH IGBT-TRIAC
30 mm
40 mm
55 mm
72 mm
72 mm
36 mm
56 mm
F446 - 15°
F447 - 24°
F448 - 36°
F449 - 60°
30
60
30
60
30
60
30
60
design: Rod&Todd
Code Construction - Costruzione del codice
IP44
Trimless & adjustable downlight
6W · 500mA (Vf 9V) · Series wiring - Cablaggio in serie
CRI85 (2200K) - CRI98 (2700K-3000K-4000K) · 2-Step MacAdam
59
62
+/- 20°
360°
SEXUS 6 UGR
Accessories - Accessori
70 mm
95
20
ZQSU001 White - Bianco
ZQSU001B Black - Nero
Plasterboard recessing frame
Flangia per cartongesso
AL7022
24VDC/500mA constant
current converter
Convertitore 24VDC/500mA
corrente costante
SSXU601
Milky screen - Schermo opale
LSXU601
Low luminance louver
Filtro antiabbagliamento
Note - Nota
The f lter and the
screen must be
ordered together
with the lighting
f xture - Il f ltro e lo
schermo devono
essere ordinati
congiuntamente
all’apparecchio.
2700K
3000K
4000K
540 lm
600 lm
620 lm
2200K
490 lm
SXU6 X X X
1
White
Bianco
5
Black
Nero
N
15°
S
M
W
24°
36°
60°
2
1
2700K
2200K
3
3000K
4
4000K
design: Rod&Todd
Trimless & adjustable downlight
7W · 24VDC · Parallel wiring - Cablaggio in parallelo
CRI85 - CRI93 (2700K-3000K-4000K only) · 2-Step MacAdam
SEXUS 724
IP44
60
59
+/- 20°
360°
F451 - 15°
F452 - 24°
F453 - 36°
F454 - 60°
30
60
30
60
30
60
30
60
Code Construction - Costruzione del codice
ZQS002 White - Bianco
ZQS002B Black - Nero
Plasterboard recessing frame
Flangia per cartongesso
110
70 mm
28
Accessories - Accessori
SSX2401
Milky screen - Schermo opale
LSX2401
Low luminance louver
Filtro antiabbagliamento
Note - Nota
The f lter and the
screen must be
ordered together
with the lighting
f xture - Il f ltro e lo
schermo devono
essere ordinati
congiuntamente
all’apparecchio.
Drivers - Alimentatori 24VDC
on/off
dimmable
AL2124 (1) IP20
AL2012 (1..3) IP20
AL2031 (1..10) IP20
AL2040 (1..21) IP20
AL5012 (1..3) IP20 DALI 2 PUSH 0/1..10V
AL5241 (1..14) IP20 DALI 2 PUSH
60 mm
28 mm
70 mm
80 mm
45 mm
70 mm
dimming module
AL7035 IP20 DALI 2 PUSH 0/1..10V
Note - Nota
Dimming module AL7035 to be used in combination
with a 24VDC power supply.
Modulo di dimmerazione AL7035 da utilizzare in
combinazione con un alimentatore 24VDC.
44 mm
2200K
2700K
3000K
CRI85
CRI93
570 lm
630 lm
590 lm
700 lm
650 lm
4000K
730 lm
670 lm
SX24 X X X X
1
White
Bianco
5
Black
Nero
8
CRI85
9
CRI93
N
15°
S
M
W
24°
36°
60°
2
1
2700K
2200K
3
3000K
4
4000K
