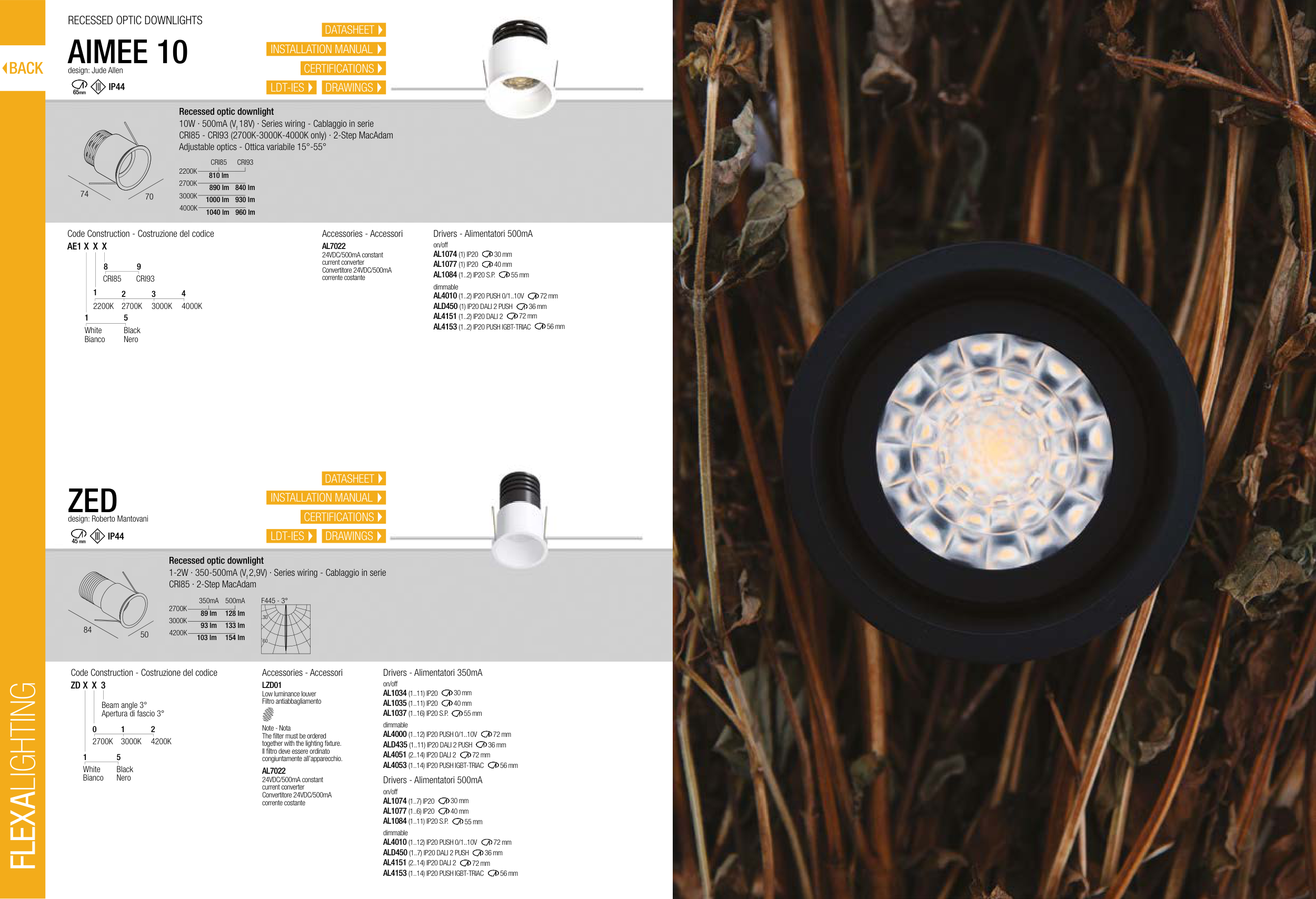

RECESSED OPTIC DOWNLIGHTS
96
Drivers - Alimentatori 350mA
on/off
dimmable
AL1034 (1..11) IP20
AL1035 (1..11) IP20
AL1037 (1..16) IP20 S.P.
AL4000 (1..12) IP20 PUSH 0/1..10V
ALD435 (1..11) IP20 DALI 2 PUSH
AL4051 (2..14) IP20 DALI 2
AL4053 (1..14) IP20 PUSH IGBT-TRIAC
30 mm
40 mm
55 mm
72 mm
72 mm
36 mm
56 mm
Drivers - Alimentatori 500mA
on/off
dimmable
AL1074 (1..7) IP20
AL1077 (1..6) IP20
AL1084 (1..11) IP20 S.P.
AL4010 (1..12) IP20 PUSH 0/1..10V
ALD450 (1..7) IP20 DALI 2 PUSH
AL4151 (2..14) IP20 DALI 2
AL4153 (1..14) IP20 PUSH IGBT-TRIAC
30 mm
40 mm
55 mm
72 mm
72 mm
36 mm
56 mm
0
2700K
1
3000K
2
4200K
ZD X X 3
1
White
Bianco
5
Black
Nero
Beam angle 3°
Apertura di fascio 3°
F445 - 3°
30
60
ZED
design: Roberto Mantovani
Code Construction - Costruzione del codice
IP44
45 mm
Recessed optic downlight
1-2W · 350-500mA (Vf 2,9V) · Series wiring - Cablaggio in serie
CRI85 · 2-Step MacAdam
LZD01
Low luminance louver
Filtro antiabbagliamento
The f lter must be ordered
together with the lighting f xture.
Il f ltro deve essere ordinato
congiuntamente all’apparecchio.
Note - Nota
AL7022
24VDC/500mA constant
current converter
Convertitore 24VDC/500mA
corrente costante
Accessories - Accessori
2700K
3000K
4200K
350mA
500mA
89 lm
128 lm
93 lm
133 lm
103 lm
154 lm
50
84
74
70
Code Construction - Costruzione del codice
Accessories - Accessori
AL7022
24VDC/500mA constant
current converter
Convertitore 24VDC/500mA
corrente costante
AIMEE 10
design: Jude Allen
IP44
65mm
Drivers - Alimentatori 500mA
on/off
dimmable
AL1074 (1) IP20
AL1077 (1) IP20
AL1084 (1..2) IP20 S.P.
AL4010 (1..2) IP20 PUSH 0/1..10V
ALD450 (1) IP20 DALI 2 PUSH
AL4151 (1..2) IP20 DALI 2
AL4153 (1..2) IP20 PUSH IGBT-TRIAC
30 mm
40 mm
55 mm
72 mm
72 mm
36 mm
56 mm
Recessed optic downlight
10W · 500mA (Vf 18V) · Series wiring - Cablaggio in serie
CRI85 - CRI93 (2700K-3000K-4000K only) · 2-Step MacAdam
Adjustable optics - Ottica variabile 15°-55°
2200K
2700K
3000K
CRI85
CRI93
810 lm
890 lm
840 lm
1000 lm
930 lm
4000K
1040 lm
960 lm
AE1 X X X
1
White
Bianco
5
Black
Nero
1
2200K
2
2700K
3
4
3000K
4000K
8
CRI85
9
CRI93
