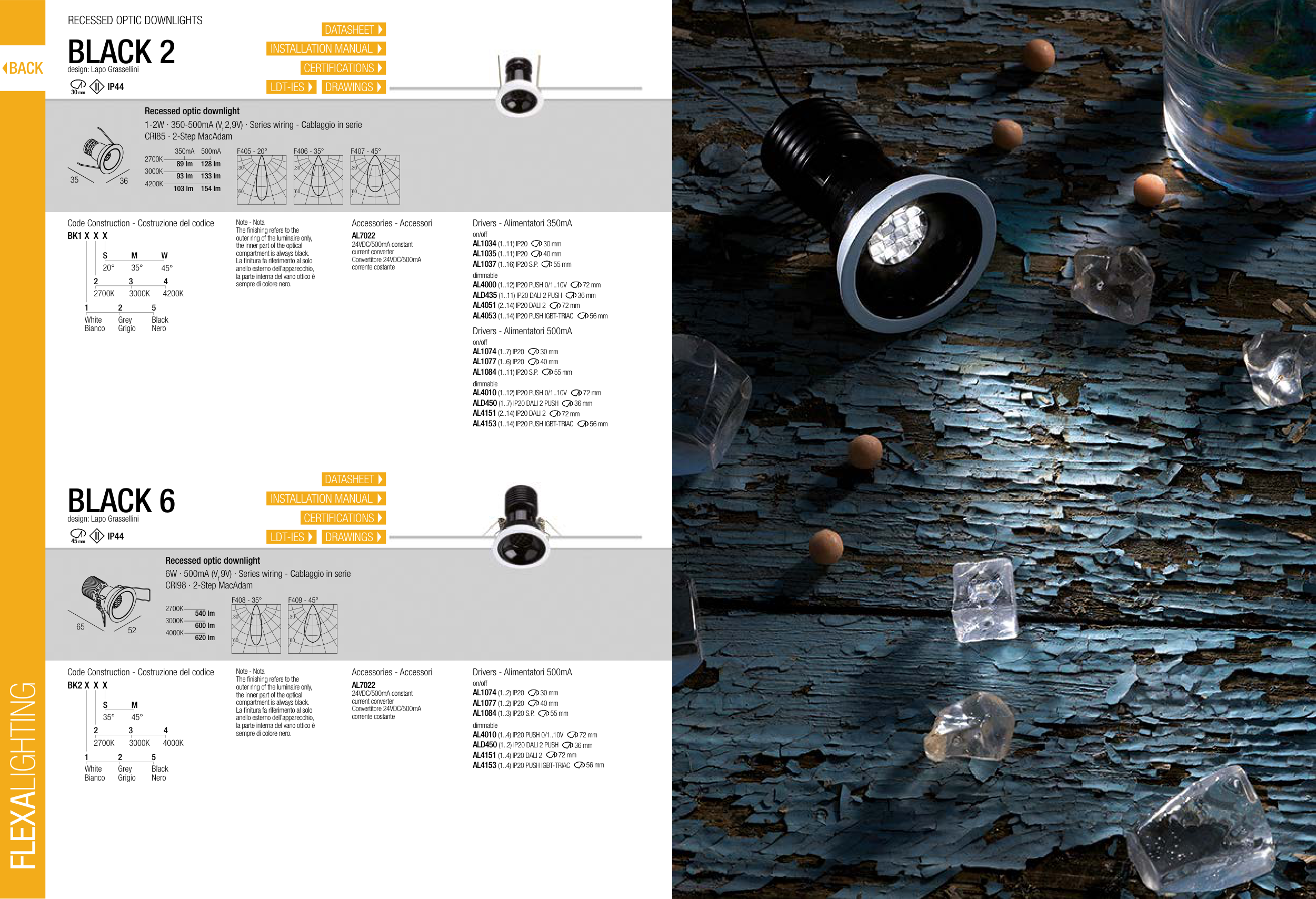

RECESSED OPTIC DOWNLIGHTS
86
Drivers - Alimentatori 350mA
on/off
dimmable
AL1034 (1..11) IP20
AL1035 (1..11) IP20
AL1037 (1..16) IP20 S.P.
AL4000 (1..12) IP20 PUSH 0/1..10V
ALD435 (1..11) IP20 DALI 2 PUSH
AL4051 (2..14) IP20 DALI 2
AL4053 (1..14) IP20 PUSH IGBT-TRIAC
30 mm
40 mm
55 mm
72 mm
72 mm
36 mm
56 mm
Drivers - Alimentatori 500mA
on/off
dimmable
AL1074 (1..7) IP20
AL1077 (1..6) IP20
AL1084 (1..11) IP20 S.P.
AL4010 (1..12) IP20 PUSH 0/1..10V
ALD450 (1..7) IP20 DALI 2 PUSH
AL4151 (2..14) IP20 DALI 2
AL4153 (1..14) IP20 PUSH IGBT-TRIAC
30 mm
40 mm
55 mm
72 mm
72 mm
36 mm
56 mm
30
60
F405 - 20°
F406 - 35°
F407 - 45°
30
60
30
60
BLACK 2
design: Lapo Grassellini
Code Construction - Costruzione del codice
IP44
30 mm
Recessed optic downlight
1-2W · 350-500mA (Vf 2,9V) · Series wiring - Cablaggio in serie
CRI85 · 2-Step MacAdam
2700K
3000K
4200K
350mA
500mA
89 lm
128 lm
93 lm
133 lm
103 lm
154 lm
BK1 X X X
S
20°
M
35°
W
45°
1
White
Bianco
2
5
Grey
Grigio
Black
Nero
2
2700K
4
3
3000K
4200K
35
36
Accessories - Accessori
AL7022
24VDC/500mA constant
current converter
Convertitore 24VDC/500mA
corrente costante
The f nishing refers to the
outer ring of the luminaire only,
the inner part of the optical
compartment is always black.
La f nitura fa riferimento al solo
anello esterno dell’apparecchio,
la parte interna del vano ottico è
sempre di colore nero.
Note - Nota
Drivers - Alimentatori 500mA
on/off
dimmable
AL1074 (1..2) IP20
AL1077 (1..2) IP20
AL1084 (1..3) IP20 S.P.
AL4010 (1..4) IP20 PUSH 0/1..10V
ALD450 (1..2) IP20 DALI 2 PUSH
AL4151 (1..4) IP20 DALI 2
AL4153 (1..4) IP20 PUSH IGBT-TRIAC
30 mm
40 mm
55 mm
72 mm
72 mm
36 mm
56 mm
BK2 X X X
S
35°
M
45°
1
White
Bianco
2
5
Grey
Grigio
Black
Nero
2
2700K
4
3
3000K
4000K
F408 - 35°
F409 - 45°
30
60
30
60
2700K
3000K
4000K
540 lm
600 lm
620 lm
BLACK 6
design: Lapo Grassellini
Code Construction - Costruzione del codice
IP44
45 mm
Recessed optic downlight
6W · 500mA (Vf 9V) · Series wiring - Cablaggio in serie
CRI98 · 2-Step MacAdam
AL7022
24VDC/500mA constant
current converter
Convertitore 24VDC/500mA
corrente costante
Accessories - Accessori
65
52
The f nishing refers to the
outer ring of the luminaire only,
the inner part of the optical
compartment is always black.
La f nitura fa riferimento al solo
anello esterno dell’apparecchio,
la parte interna del vano ottico è
sempre di colore nero.
Note - Nota
