RECESSED OPTIC DOWNLIGHTS
84
55
105
C1 X X X X
1
White
Bianco
2
5
Grey
Grigio
Black
Nero
8
CRI85
9
CRI93
S
36°
M
46°
W
60°
2
2700K
4
3
3000K
4000K
F971 - 36°
F972 - 46°
F973 - 60°
30
60
30
60
30
60
2700K
3000K
4000K
CRI85
CRI93
890 lm
840 lm
1000 lm
930 lm
1040 lm
960 lm

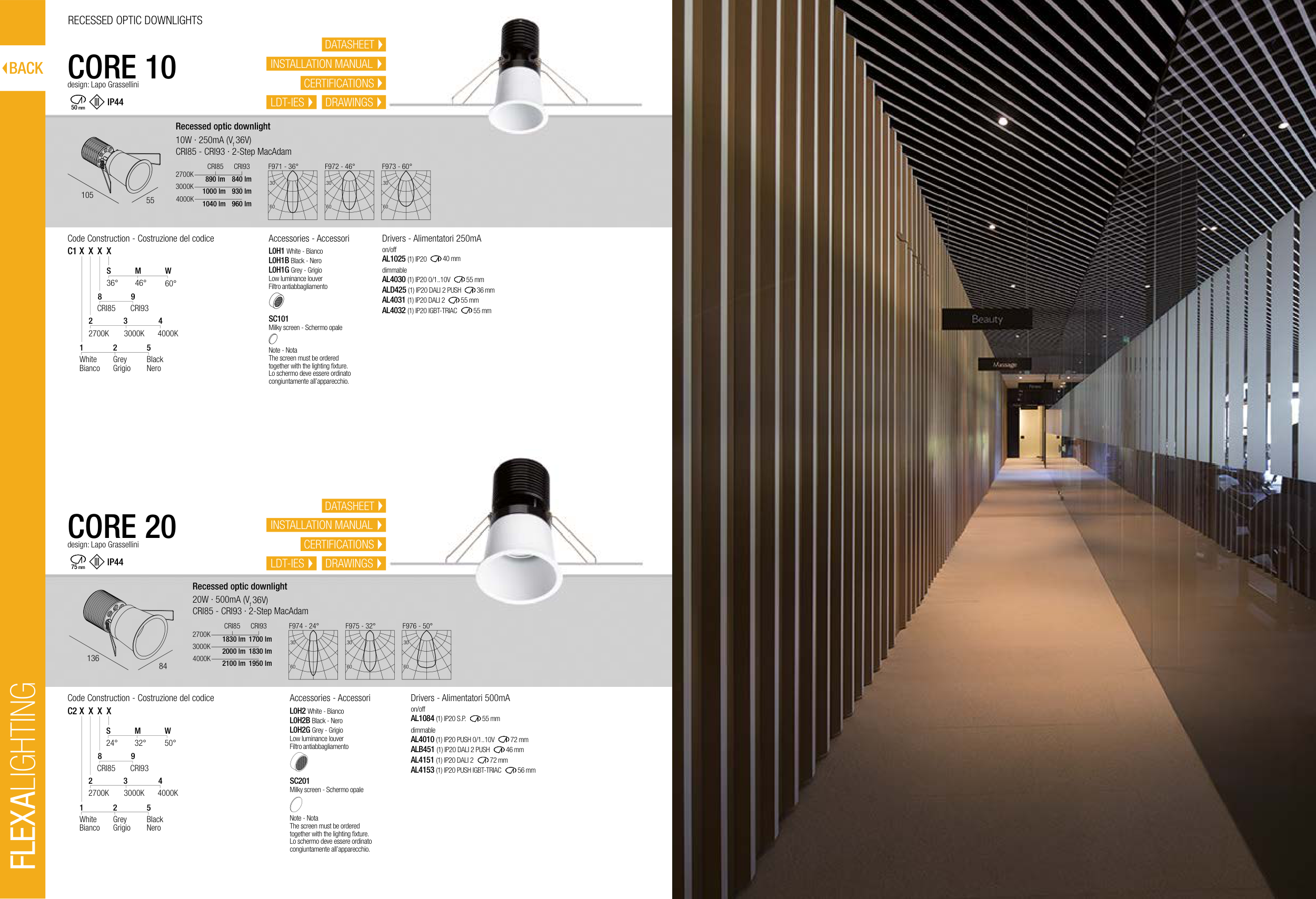

CORE 10
design: Lapo Grassellini
Code Construction - Costruzione del codice
IP44
50 mm
Recessed optic downlight
10W · 250mA (Vf 36V)
CRI85 - CRI93 · 2-Step MacAdam
Accessories - Accessori
SC101
Milky screen - Schermo opale
L0H1 White - Bianco
L0H1B Black - Nero
L0H1G Grey - Grigio
Low luminance louver
Filtro antiabbagliamento
The screen must be ordered
together with the lighting f xture.
Lo schermo deve essere ordinato
congiuntamente all’apparecchio.
Note - Nota
Drivers - Alimentatori 250mA
on/off
dimmable
AL1025 (1) IP20
AL4030 (1) IP20 0/1..10V
ALD425 (1) IP20 DALI 2 PUSH
AL4031 (1) IP20 DALI 2
AL4032 (1) IP20 IGBT-TRIAC
40 mm
55 mm
55 mm
36 mm
55 mm
Drivers - Alimentatori 500mA
on/off
dimmable
AL1084 (1) IP20 S.P.
AL4010 (1) IP20 PUSH 0/1..10V
ALB451 (1) IP20 DALI 2 PUSH
AL4151 (1) IP20 DALI 2
AL4153 (1) IP20 PUSH IGBT-TRIAC
55 mm
72 mm
72 mm
46 mm
56 mm
84
136
2700K
3000K
4000K
CRI85
CRI93
1830 lm 1700 lm
2000 lm 1830 lm
2100 lm 1950 lm
C2 X X X X
1
White
Bianco
2
5
Grey
Grigio
Black
Nero
8
CRI85
9
CRI93
S
24°
M
32°
W
50°
2
2700K
4
3
3000K
4000K
F974 - 24°
F975 - 32°
F976 - 50°
30
60
30
60
30
60
CORE 20
design: Lapo Grassellini
Code Construction - Costruzione del codice
IP44
75 mm
Recessed optic downlight
20W · 500mA (Vf 36V)
CRI85 - CRI93 · 2-Step MacAdam
The screen must be ordered
together with the lighting f xture.
Lo schermo deve essere ordinato
congiuntamente all’apparecchio.
Note - Nota
SC201
Milky screen - Schermo opale
L0H2 White - Bianco
L0H2B Black - Nero
L0H2G Grey - Grigio
Low luminance louver
Filtro antiabbagliamento
Accessories - Accessori
