RECESSED OPTIC DOWNLIGHTS
78
Drivers - Alimentatori 500mA
on/off
dimmable
AL1074 (1..2) IP20
AL1077 (1..2) IP20
AL1084 (1..3) IP20 S.P.
AL4010 (1..4) IP20 PUSH 0/1..10V
ALD450 (1..2) IP20 DALI 2 PUSH
AL4151 (1..4) IP20 DALI 2
AL4153 (1..4) IP20 PUSH IGBT-TRIAC
30 mm
40 mm
55 mm
72 mm
72 mm
36 mm
56 mm
45
81
LLFU601
SLFU601
Low luminance louver
Filtro antiabbagliamento
Milky screen - Schermo opale
AL7022
24VDC/500mA constant
current converter
Convertitore 24VDC/500mA
corrente costante
Note - Nota
The f lter and the
screen must be
ordered together
with the lighting
f xture - Il f ltro e lo
schermo devono
essere ordinati
congiuntamente
all’apparecchio.
design: Roberto Mantovani
Code Construction - Costruzione del codice
F408 - 35°
F409 - 45°
30
60
30
60

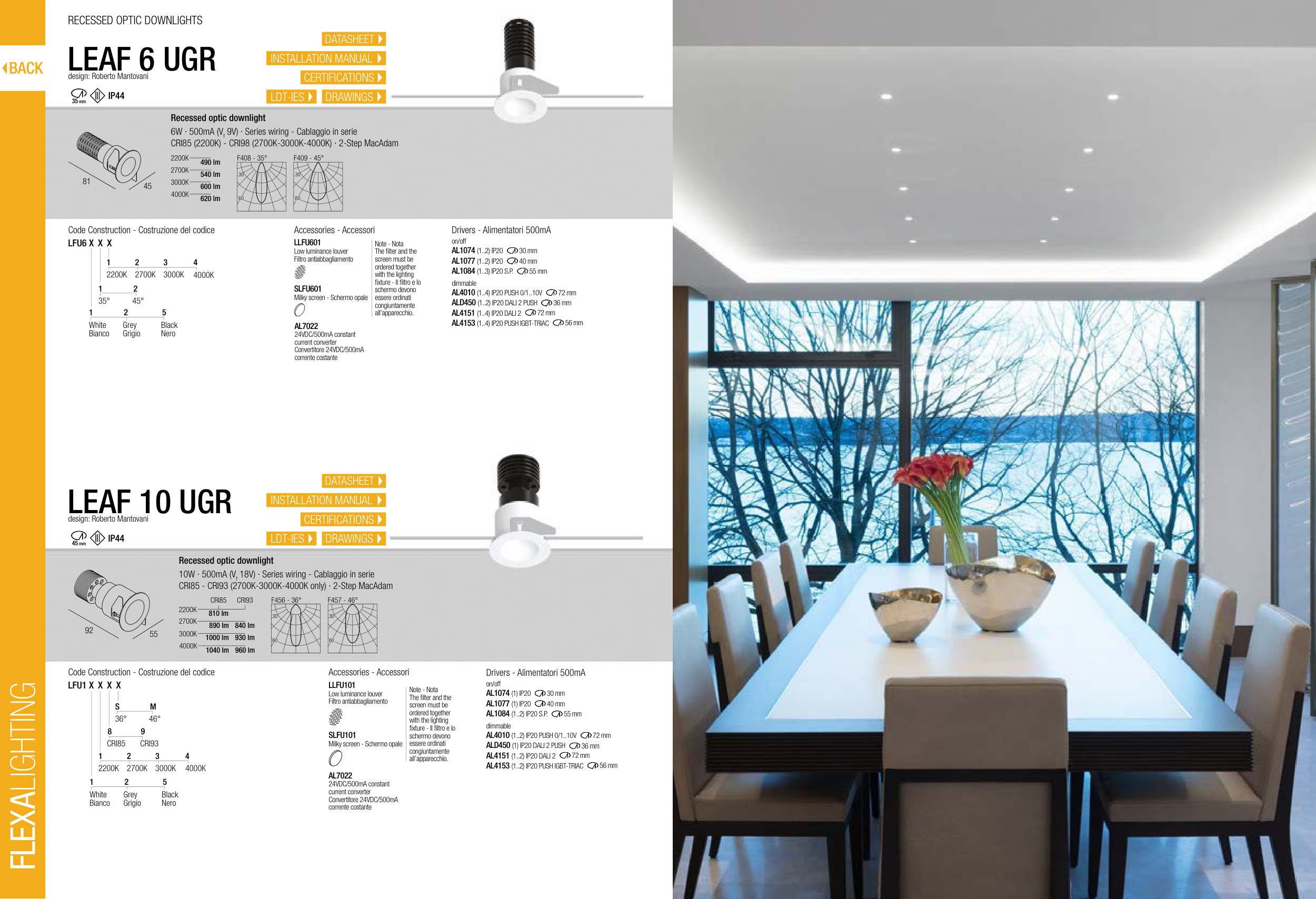

Recessed optic downlight
6W · 500mA (Vf 9V) · Series wiring - Cablaggio in serie
CRI85 (2200K) - CRI98 (2700K-3000K-4000K) · 2-Step MacAdam
LEAF 6 UGR
IP44
35 mm
Accessories - Accessori
2700K
3000K
4000K
540 lm
600 lm
620 lm
2200K
490 lm
LFU6 X X X
1
35°
2
45°
1
White
Bianco
2
5
Grey
Grigio
Black
Nero
2
1
2700K
2200K
3
3000K
4
4000K
Drivers - Alimentatori 500mA
on/off
dimmable
AL1074 (1) IP20
AL1077 (1) IP20
AL1084 (1..2) IP20 S.P.
AL4010 (1..2) IP20 PUSH 0/1..10V
ALD450 (1) IP20 DALI 2 PUSH
AL4151 (1..2) IP20 DALI 2
AL4153 (1..2) IP20 PUSH IGBT-TRIAC
30 mm
40 mm
55 mm
72 mm
72 mm
36 mm
56 mm
55
92
SLFU101
Milky screen - Schermo opale
LLFU101
Low luminance louver
Filtro antiabbagliamento
AL7022
24VDC/500mA constant
current converter
Convertitore 24VDC/500mA
corrente costante
Note - Nota
The f lter and the
screen must be
ordered together
with the lighting
f xture - Il f ltro e lo
schermo devono
essere ordinati
congiuntamente
all’apparecchio.
design: Roberto Mantovani
Code Construction - Costruzione del codice
LEAF 10 UGR
IP44
45 mm
Accessories - Accessori
F456 - 36°
F457 - 46°
30
60
30
60
Recessed optic downlight
10W · 500mA (Vf 18V) · Series wiring - Cablaggio in serie
CRI85 - CRI93 (2700K-3000K-4000K only) · 2-Step MacAdam
2200K
2700K
3000K
CRI85
CRI93
810 lm
890 lm
840 lm
1000 lm
930 lm
4000K
1040 lm
960 lm
S
36°
M
46°
1
White
Bianco
2
5
Grey
Grigio
Black
Nero
LFU1 X X X X
8
CRI85
9
CRI93
2
1
2700K
2200K
3
3000K
4
4000K
