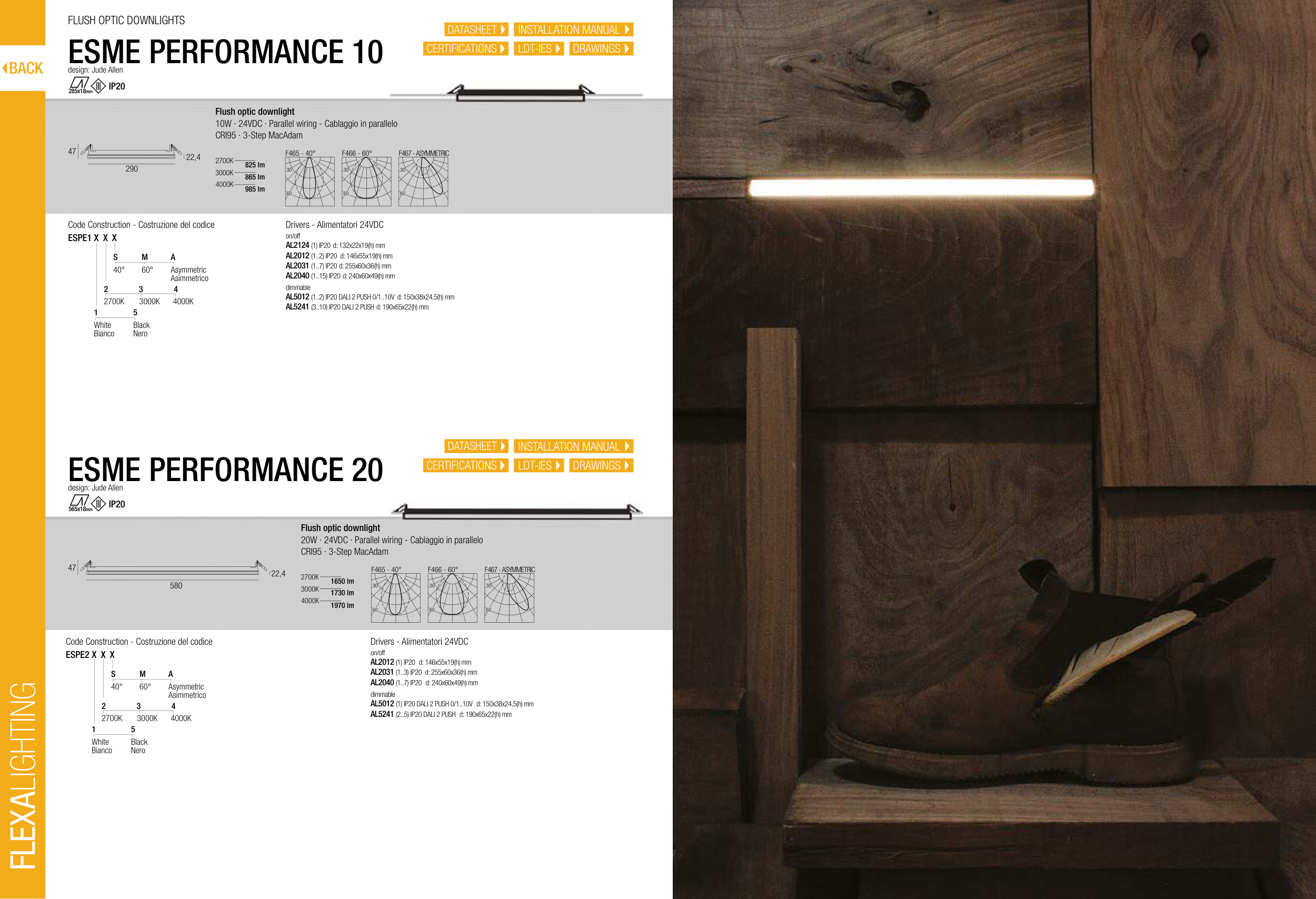

FLUSH OPTIC DOWNLIGHTS
60
design: Jude Allen
IP20
285x18mm
ESME PERFORMANCE 10
Code Construction - Costruzione del codice
ESPE1 X X X
1
White
Bianco
5
Black
Nero
S
40°
M
A
60°
Asymmetric
Asimmetrico
2
2700K
4
3
3000K
4000K
ESME PERFORMANCE 20
design: Jude Allen
IP20
565x18mm
Code Construction - Costruzione del codice
ESPE2 X X X
1
White
Bianco
5
Black
Nero
S
40°
M
A
60°
Asymmetric
Asimmetrico
2
2700K
4
3
3000K
4000K
2700K
3000K
4000K
825 lm
865 lm
985 lm
Flush optic downlight
10W · 24VDC · Parallel wiring - Cablaggio in parallelo
CRI95 · 3-Step MacAdam
F465 - 40°
F466 - 60°
F467 - ASYMMETRIC
30
60
30
60
30
60
2700K
3000K
4000K
1650 lm
1730 lm
1970 lm
Flush optic downlight
20W · 24VDC · Parallel wiring - Cablaggio in parallelo
CRI95 · 3-Step MacAdam
F465 - 40°
F466 - 60°
F467 - ASYMMETRIC
30
60
30
60
30
60
290
47
22,4
580
47
22,4
Drivers - Alimentatori 24VDC
on/off
dimmable
AL2124 (1) IP20
AL2012 (1..2) IP20
AL2031 (1..7) IP20
AL2040 (1..15) IP20
AL5012 (1..2) IP20 DALI 2 PUSH 0/1..10V
AL5241 (3..10) IP20 DALI 2 PUSH
d: 132x22x19(h) mm
d: 255x60x36(h) mm
d: 150x38x24,5(h) mm
d: 240x60x49(h) mm
d: 190x65x22(h) mm
d: 146x55x19(h) mm
Drivers - Alimentatori 24VDC
on/off
dimmable
AL2012 (1) IP20
AL2031 (1..3) IP20
AL2040 (1..7) IP20
AL5012 (1) IP20 DALI 2 PUSH 0/1..10V
AL5241 (2..5) IP20 DALI 2 PUSH
d: 255x60x36(h) mm
d: 150x38x24,5(h) mm
d: 240x60x49(h) mm
d: 190x65x22(h) mm
d: 146x55x19(h) mm
