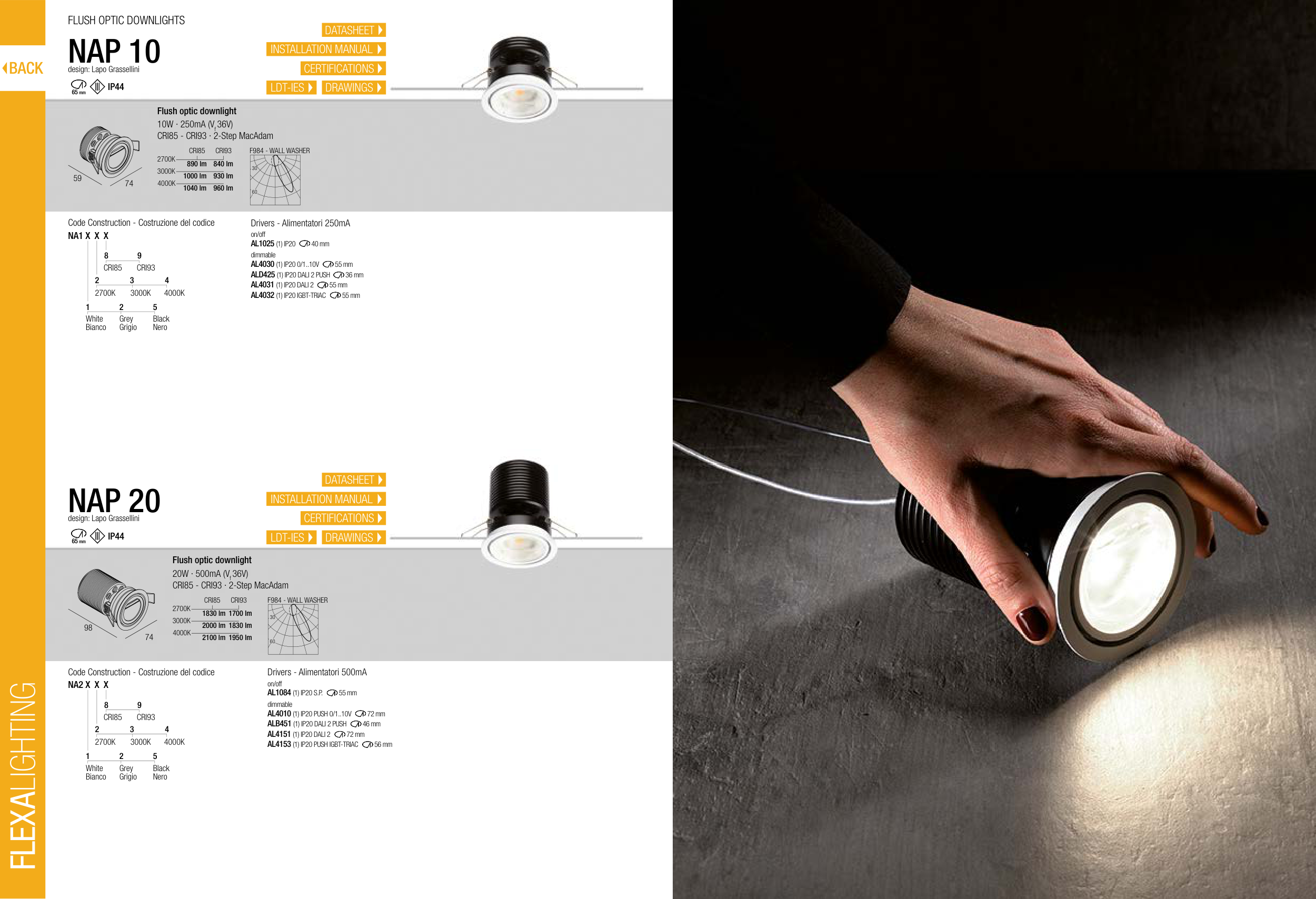

FLUSH OPTIC DOWNLIGHTS
43
56
Drivers - Alimentatori 500mA
on/off
dimmable
AL1084 (1) IP20 S.P.
AL4010 (1) IP20 PUSH 0/1..10V
ALB451 (1) IP20 DALI 2 PUSH
AL4151 (1) IP20 DALI 2
AL4153 (1) IP20 PUSH IGBT-TRIAC
55 mm
72 mm
72 mm
46 mm
56 mm
F984 - WALL WASHER
30
60
NA2 X X X
1
White
Bianco
2
5
Grey
Grigio
Black
Nero
8
CRI85
9
CRI93
2
2700K
4
3
3000K
4000K
NAP 20
design: Lapo Grassellini
Code Construction - Costruzione del codice
Flush optic downlight
20W · 500mA (Vf 36V)
CRI85 - CRI93 · 2-Step MacAdam
IP44
65 mm
74
98
2700K
3000K
4000K
CRI85
CRI93
1830 lm 1700 lm
2000 lm 1830 lm
2100 lm 1950 lm
F984 - WALL WASHER
30
60
2700K
3000K
4000K
CRI85
CRI93
890 lm
840 lm
1000 lm
930 lm
1040 lm
960 lm
NA1 X X X
1
White
Bianco
2
5
Grey
Grigio
Black
Nero
8
CRI85
9
CRI93
2
2700K
4
3
3000K
4000K
NAP 10
design: Lapo Grassellini
Code Construction - Costruzione del codice
Flush optic downlight
10W · 250mA (Vf 36V)
CRI85 - CRI93 · 2-Step MacAdam
59
74
IP44
65 mm
Drivers - Alimentatori 250mA
on/off
dimmable
AL1025 (1) IP20
AL4030 (1) IP20 0/1..10V
ALD425 (1) IP20 DALI 2 PUSH
AL4031 (1) IP20 DALI 2
AL4032 (1) IP20 IGBT-TRIAC
40 mm
55 mm
55 mm
36 mm
55 mm
