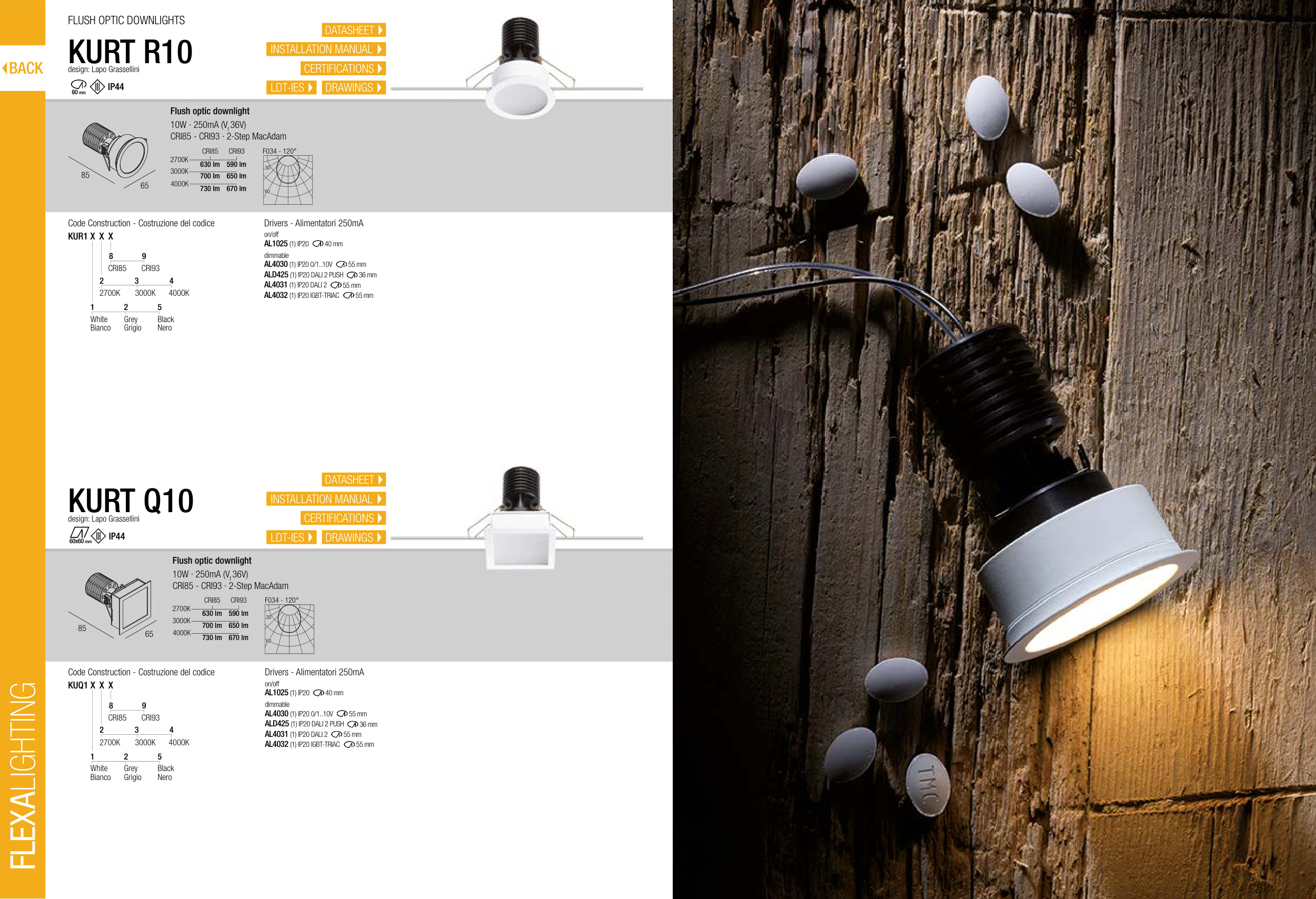

FLUSH OPTIC DOWNLIGHTS
54
F034 - 120°
30
60
KUQ1 X X X
1
White
Bianco
2
5
Grey
Grigio
Black
Nero
8
CRI85
9
CRI93
2
2700K
4
3
3000K
4000K
2700K
3000K
4000K
CRI85
CRI93
630 lm
590 lm
700 lm
650 lm
730 lm
670 lm
KURT Q10
design: Lapo Grassellini
Code Construction - Costruzione del codice
Flush optic downlight
10W · 250mA (Vf 36V)
CRI85 - CRI93 · 2-Step MacAdam
65
85
IP44
60x60 mm
Drivers - Alimentatori 250mA
on/off
dimmable
AL1025 (1) IP20
AL4030 (1) IP20 0/1..10V
ALD425 (1) IP20 DALI 2 PUSH
AL4031 (1) IP20 DALI 2
AL4032 (1) IP20 IGBT-TRIAC
40 mm
55 mm
55 mm
36 mm
55 mm
F034 - 120°
30
60
65
85
KUR1 X X X
1
White
Bianco
2
5
Grey
Grigio
Black
Nero
8
CRI85
9
CRI93
2
2700K
4
3
3000K
4000K
2700K
3000K
4000K
CRI85
CRI93
630 lm
590 lm
700 lm
650 lm
730 lm
670 lm
KURT R10
design: Lapo Grassellini
Code Construction - Costruzione del codice
Flush optic downlight
10W · 250mA (Vf 36V)
CRI85 - CRI93 · 2-Step MacAdam
IP44
60 mm
Drivers - Alimentatori 250mA
on/off
dimmable
AL1025 (1) IP20
AL4030 (1) IP20 0/1..10V
ALD425 (1) IP20 DALI 2 PUSH
AL4031 (1) IP20 DALI 2
AL4032 (1) IP20 IGBT-TRIAC
40 mm
55 mm
55 mm
36 mm
55 mm
