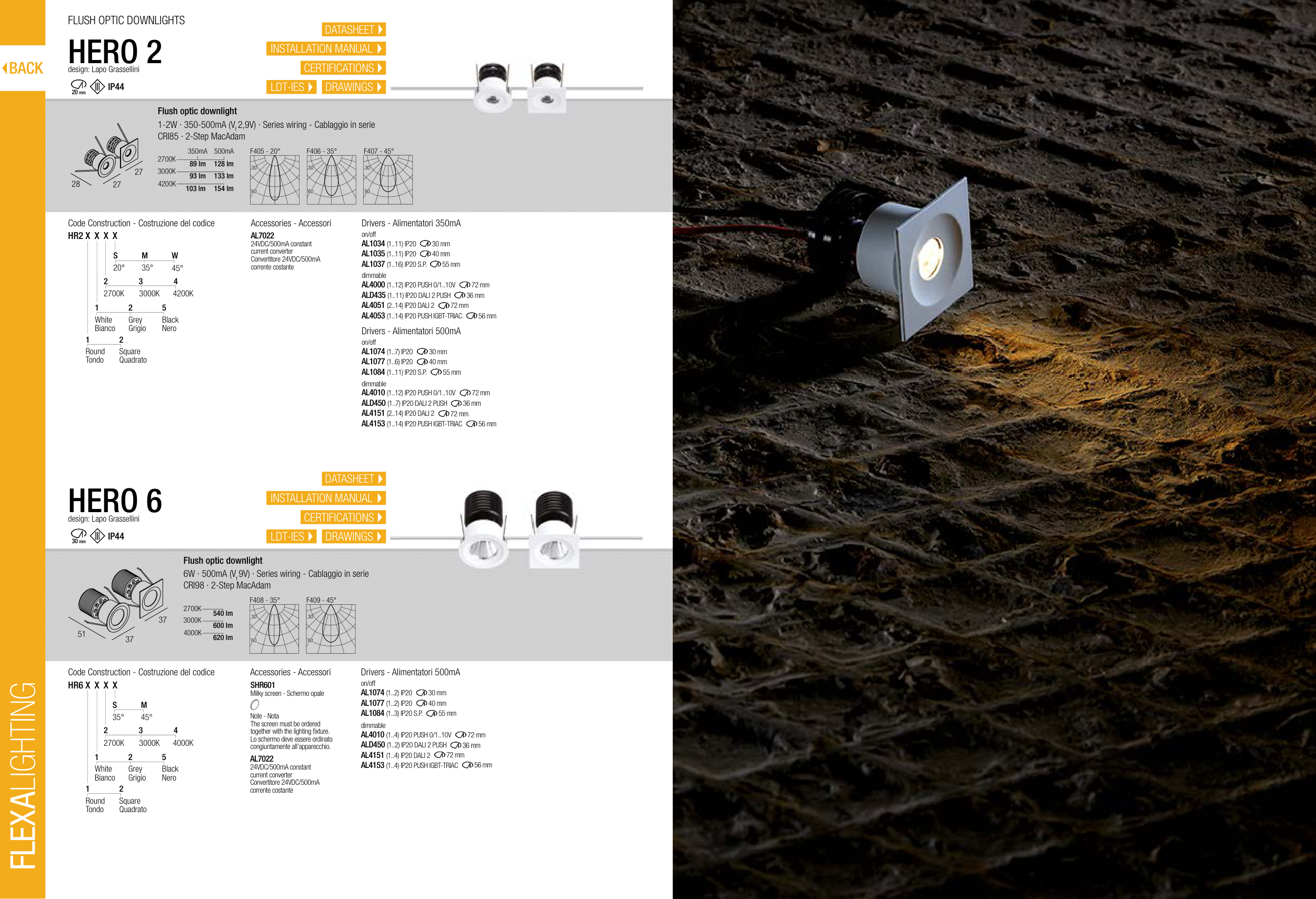

FLUSH OPTIC DOWNLIGHTS
46
Drivers - Alimentatori 500mA
on/off
dimmable
AL1074 (1..2) IP20
AL1077 (1..2) IP20
AL1084 (1..3) IP20 S.P.
AL4010 (1..4) IP20 PUSH 0/1..10V
ALD450 (1..2) IP20 DALI 2 PUSH
AL4151 (1..4) IP20 DALI 2
AL4153 (1..4) IP20 PUSH IGBT-TRIAC
30 mm
40 mm
55 mm
72 mm
72 mm
36 mm
56 mm
51
37
37
F408 - 35°
F409 - 45°
30
60
30
60
HERO 6
design: Lapo Grassellini
Code Construction - Costruzione del codice
IP44
30 mm
Flush optic downlight
6W · 500mA (Vf 9V) · Series wiring - Cablaggio in serie
CRI98 · 2-Step MacAdam
2700K
3000K
4000K
540 lm
600 lm
620 lm
Accessories - Accessori
AL7022
24VDC/500mA constant
current converter
Convertitore 24VDC/500mA
corrente costante
SHR601
Milky screen - Schermo opale
Note - Nota
The screen must be ordered
together with the lighting f xture.
Lo schermo deve essere ordinato
congiuntamente all’apparecchio.
HR6 X X X X
S
35°
M
45°
1
1
White
Bianco
Round
Tondo
2
5
2
Grey
Grigio
Black
Nero
Square
Quadrato
2
2700K
4
3
3000K
4000K
Drivers - Alimentatori 350mA
on/off
dimmable
AL1034 (1..11) IP20
AL1035 (1..11) IP20
AL1037 (1..16) IP20 S.P.
AL4000 (1..12) IP20 PUSH 0/1..10V
ALD435 (1..11) IP20 DALI 2 PUSH
AL4051 (2..14) IP20 DALI 2
AL4053 (1..14) IP20 PUSH IGBT-TRIAC
30 mm
40 mm
55 mm
72 mm
72 mm
36 mm
56 mm
Drivers - Alimentatori 500mA
on/off
dimmable
AL1074 (1..7) IP20
AL1077 (1..6) IP20
AL1084 (1..11) IP20 S.P.
AL4010 (1..12) IP20 PUSH 0/1..10V
ALD450 (1..7) IP20 DALI 2 PUSH
AL4151 (2..14) IP20 DALI 2
AL4153 (1..14) IP20 PUSH IGBT-TRIAC
30 mm
40 mm
55 mm
72 mm
72 mm
36 mm
56 mm
28
27
27
30
60
F405 - 20°
F406 - 35°
F407 - 45°
30
60
30
60
HERO 2
design: Lapo Grassellini
Code Construction - Costruzione del codice
IP44
20 mm
Flush optic downlight
1-2W · 350-500mA (Vf 2,9V) · Series wiring - Cablaggio in serie
CRI85 · 2-Step MacAdam
2700K
3000K
4200K
350mA
500mA
89 lm
128 lm
93 lm
133 lm
103 lm
154 lm
HR2 X X X X
S
20°
M
35°
W
45°
1
1
White
Bianco
Round
Tondo
2
5
2
Grey
Grigio
Black
Nero
Square
Quadrato
2
2700K
4
3
3000K
4200K
AL7022
24VDC/500mA constant
current converter
Convertitore 24VDC/500mA
corrente costante
Accessories - Accessori
