IP RATED PROJECTORS
432
72 mm
Drivers - Alimentatori 500mA
on/off
dimmable
AL1074 (1) IP20
AL1077 (1) IP20
AL1084 (1..2) IP20 S.P.
AL9051 (1..2) IP67
AL4010 (1..2) IP20 PUSH 0/1..10V
ALD450 (1) IP20 DALI 2 PUSH
AL4151 (1..2) IP20 DALI 2
AL4153 (1..2) IP20 PUSH IGBT-TRIAC
AL6050 (1) IP67 DALI 2
AL8050 (1..2) IP67 DALI 2
30 mm
40 mm
55 mm
44 mm
72 mm
36 mm
56 mm
44 mm
48 mm
Code Construction - Costruzione del codice

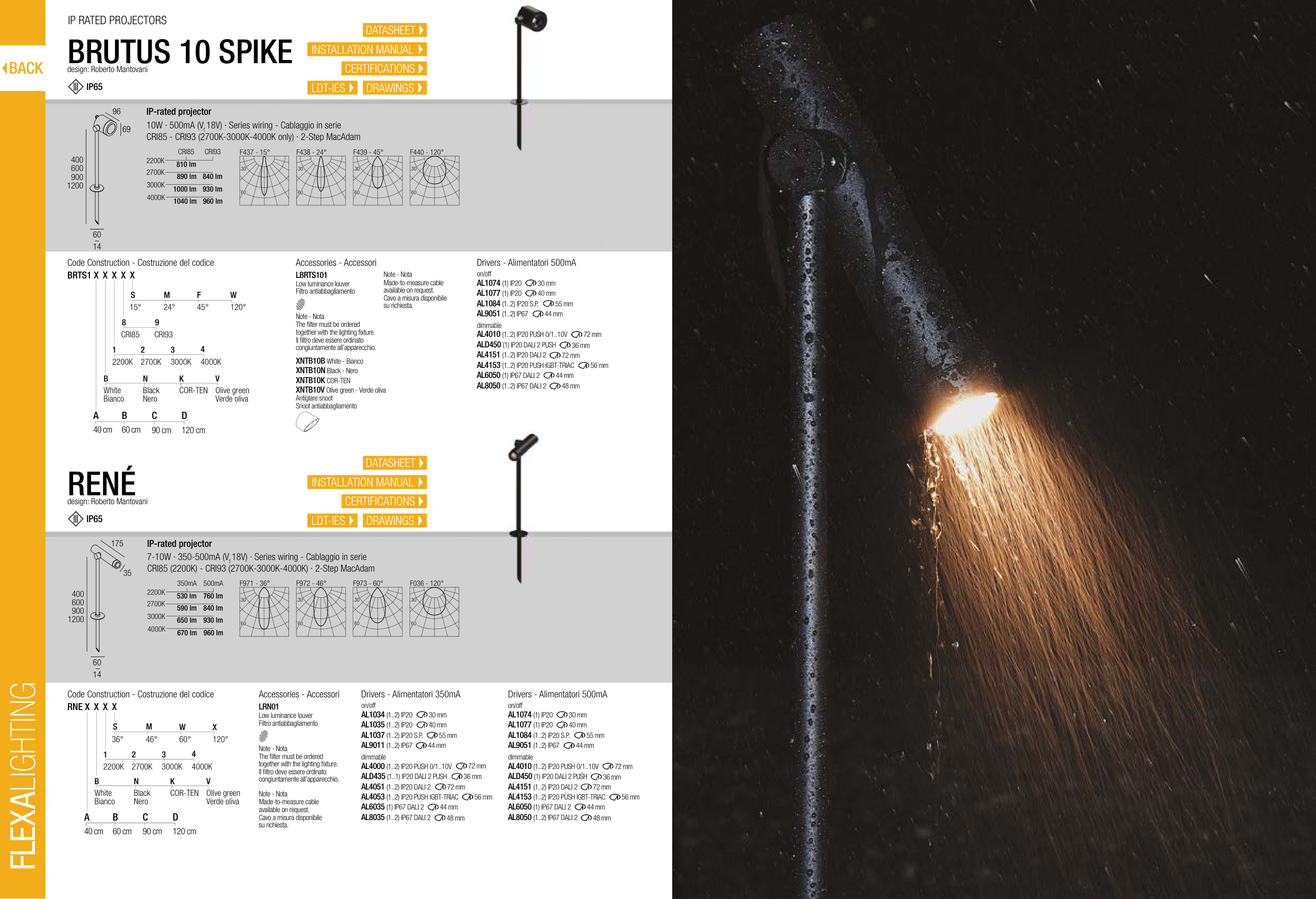

BRUTUS 10 SPIKE
design: Roberto Mantovani
IP65
Accessories - Accessori
LRN01
Low luminance louver
Filtro antiabbagliamento
The f lter must be ordered
together with the lighting f xture.
Il f ltro deve essere ordinato
congiuntamente all’apparecchio.
Note - Nota
Made-to-measure cable
available on request.
Cavo a misura disponibile
su richiesta.
Note - Nota
Code Construction - Costruzione del codice
RENÉ
design: Roberto Mantovani
IP65
35
175
60
14
400
600
900
1200
72 mm
Drivers - Alimentatori 500mA
on/off
dimmable
AL1074 (1) IP20
AL1077 (1) IP20
AL1084 (1..2) IP20 S.P.
AL9051 (1..2) IP67
AL4010 (1..2) IP20 PUSH 0/1..10V
ALD450 (1) IP20 DALI 2 PUSH
AL4151 (1..2) IP20 DALI 2
AL4153 (1..2) IP20 PUSH IGBT-TRIAC
AL6050 (1) IP67 DALI 2
AL8050 (1..2) IP67 DALI 2
30 mm
40 mm
55 mm
44 mm
72 mm
36 mm
56 mm
44 mm
48 mm
Accessories - Accessori
LBRTS101
Low luminance louver
Filtro antiabbagliamento
The f lter must be ordered
together with the lighting f xture.
Il f ltro deve essere ordinato
congiuntamente all’apparecchio.
Note - Nota
Made-to-measure cable
available on request.
Cavo a misura disponibile
su richiesta.
Note - Nota
XNTB10B White - Bianco
XNTB10N Black - Nero
XNTB10K COR-TEN
XNTB10V Olive green - Verde oliva
Antiglare snoot
Snoot antiabbagliamento
69
96
60
14
400
600
900
1200
Drivers - Alimentatori 350mA
on/off
dimmable
AL1034 (1..2) IP20
AL1035 (1..2) IP20
AL1037 (1..2) IP20 S.P.
AL9011 (1..2) IP67
AL4000 (1..2) IP20 PUSH 0/1..10V
ALD435 (1..1) IP20 DALI 2 PUSH
AL4051 (1..2) IP20 DALI 2
AL4053 (1..2) IP20 PUSH IGBT-TRIAC
AL6035 (1) IP67 DALI 2
AL8035 (1..2) IP67 DALI 2
30 mm
40 mm
55 mm
44 mm
72 mm
72 mm
36 mm
56 mm
44 mm
48 mm
BRTS1 X X X X X
S
15°
M
F
W
24°
45°
120°
8
CRI85
9
CRI93
1
2200K
2
2700K
3
4
3000K
4000K
B
White
Bianco
N
K
Black
Nero
COR-TEN
V
Olive green
Verde oliva
A
40 cm
B
60 cm
C
90 cm
D
120 cm
RNE X X X X
S
36°
M
W
X
46°
60°
120°
B
White
Bianco
N
K
Black
Nero
COR-TEN
V
Olive green
Verde oliva
1
2200K
2
2700K
3
4
3000K
4000K
A
40 cm
B
60 cm
C
90 cm
D
120 cm
IP-rated projector
10W · 500mA (Vf 18V) · Series wiring - Cablaggio in serie
CRI85 - CRI93 (2700K-3000K-4000K only) · 2-Step MacAdam
F437 - 15°
F438 - 24°
F439 - 45°
F440 - 120°
30
60
30
60
30
60
30
60
2200K
2700K
3000K
CRI85
CRI93
810 lm
890 lm
840 lm
1000 lm
930 lm
4000K
1040 lm
960 lm
IP-rated projector
7-10W · 350-500mA (Vf 18V) · Series wiring - Cablaggio in serie
CRI85 (2200K) - CRI93 (2700K-3000K-4000K) · 2-Step MacAdam
F971 - 36°
F972 - 46°
F973 - 60°
F036 - 120°
30
60
30
60
30
60
30
60
2200K
2700K
3000K
350mA
530 lm
760 lm
590 lm
840 lm
650 lm
930 lm
500mA
4000K
670 lm
960 lm
