UPLIGHTS & PATHLIGHTS
394
XJ11 X X X
0
2700K
1
3000K
2
4200K
3
6000K
6
Blue
Blu
7
Green
Verde
8
Red
Rosso
0
10°
1
2
25°
60°
N
G
Grey
Grigio
Black
Nero
K
COR-TEN
Z
INOX Steel
AISI 316L
F001 - 10°
F002 - 25°
F003 - 60°
60
30
60
30
60
30

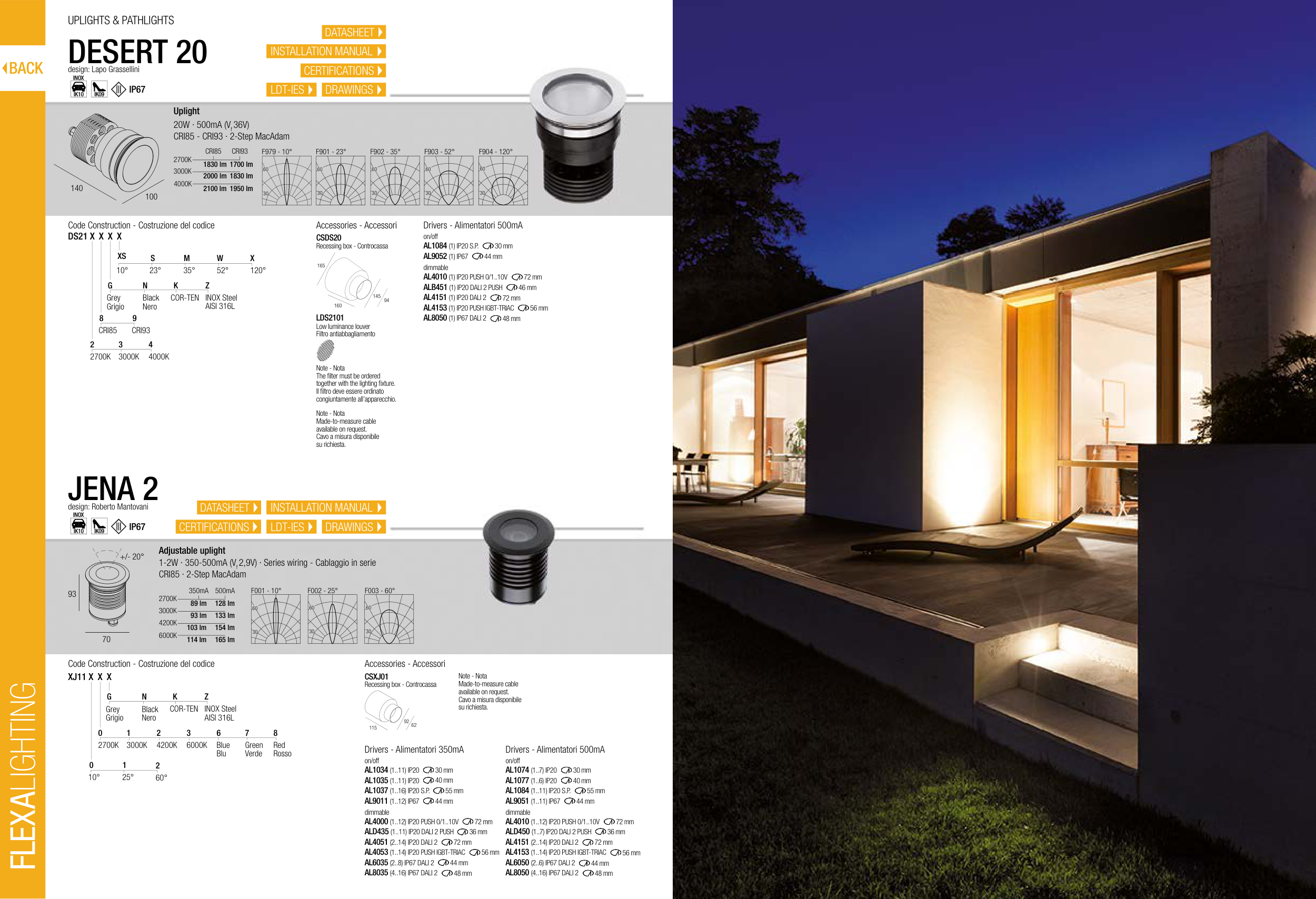

JENA 2
design: Roberto Mantovani
Code Construction - Costruzione del codice
Adjustable uplight
1-2W · 350-500mA (Vf 2,9V) · Series wiring - Cablaggio in serie
CRI85 · 2-Step MacAdam
2700K
3000K
4200K
6000K
350mA
500mA
89 lm
128 lm
93 lm
133 lm
103 lm
154 lm
114 lm
165 lm
IP67
IK09
IK10
INOX
70
93
+/- 20°
Accessories - Accessori
CSXJ01
Recessing box - Controcassa
62
115
92
Made-to-measure cable
available on request.
Cavo a misura disponibile
su richiesta.
Note - Nota
Drivers - Alimentatori 350mA
on/off
dimmable
AL1034 (1..11) IP20
AL1035 (1..11) IP20
AL1037 (1..16) IP20 S.P.
AL9011 (1..12) IP67
AL4000 (1..12) IP20 PUSH 0/1..10V
ALD435 (1..11) IP20 DALI 2 PUSH
AL4051 (2..14) IP20 DALI 2
AL4053 (1..14) IP20 PUSH IGBT-TRIAC
AL6035 (2..8) IP67 DALI 2
AL8035 (4..16) IP67 DALI 2
30 mm
40 mm
55 mm
44 mm
72 mm
72 mm
36 mm
56 mm
44 mm
48 mm
Drivers - Alimentatori 500mA
on/off
dimmable
AL1074 (1..7) IP20
AL1077 (1..6) IP20
AL1084 (1..11) IP20 S.P.
AL9051 (1..11) IP67
AL4010 (1..12) IP20 PUSH 0/1..10V
ALD450 (1..7) IP20 DALI 2 PUSH
AL4151 (2..14) IP20 DALI 2
AL4153 (1..14) IP20 PUSH IGBT-TRIAC
AL6050 (2..6) IP67 DALI 2
AL8050 (4..16) IP67 DALI 2
44 mm
48 mm
30 mm
40 mm
55 mm
44 mm
72 mm
72 mm
36 mm
56 mm
Drivers - Alimentatori 500mA
on/off
dimmable
AL1084 (1) IP20 S.P.
AL9052 (1) IP67
AL4010 (1) IP20 PUSH 0/1..10V
ALB451 (1) IP20 DALI 2 PUSH
AL4151 (1) IP20 DALI 2
AL4153 (1) IP20 PUSH IGBT-TRIAC
AL8050 (1) IP67 DALI 2
30 mm
44 mm
72 mm
72 mm
46 mm
56 mm
48 mm
2700K
3000K
4000K
CRI85
CRI93
1830 lm 1700 lm
2000 lm 1830 lm
2100 lm 1950 lm
DESERT 20
design: Lapo Grassellini
Uplight
20W · 500mA (Vf 36V)
CRI85 - CRI93 · 2-Step MacAdam
Code Construction - Costruzione del codice
DS21 X X X X
2
2700K
3
3000K
4
4000K
S
XS
23°
10°
M
W
X
35°
52°
120°
N
G
Grey
Grigio
Black
Nero
K
COR-TEN
Z
INOX Steel
AISI 316L
8
CRI85
9
CRI93
100
140
IP67
IK09
IK10
INOX
F901 - 23°
60
30
F979 - 10°
60
30
F902 - 35°
60
30
F903 - 52°
60
30
60
30
F904 - 120°
Accessories - Accessori
94
145
165
160
CSDS20
Recessing box - Controcassa
The f lter must be ordered
together with the lighting f xture.
Il f ltro deve essere ordinato
congiuntamente all’apparecchio.
Note - Nota
LDS2101
Low luminance louver
Filtro antiabbagliamento
Made-to-measure cable
available on request.
Cavo a misura disponibile
su richiesta.
Note - Nota
