UPLIGHTS & PATHLIGHTS
388
Drivers - Alimentatori 350mA
on/off
dimmable
AL1034 (1..11) IP20
AL1035 (1..11) IP20
AL1037 (1..16) IP20 S.P.
AL9011 (1..12) IP67
AL4000 (1..12) IP20 PUSH 0/1..10V
ALD435 (1..11) IP20 DALI 2 PUSH
AL4051 (2..14) IP20 DALI 2
AL4053 (1..14) IP20 PUSH IGBT-TRIAC
AL6035 (2..8) IP67 DALI 2
AL8035 (4..16) IP67 DALI 2
30 mm
40 mm
55 mm
44 mm
72 mm
72 mm
36 mm
56 mm
44 mm
48 mm
Drivers - Alimentatori 500mA
on/off
dimmable
AL1074 (1..7) IP20
AL1077 (1..6) IP20
AL1084 (1..11) IP20 S.P.
AL9051 (1..11) IP67
AL4010 (1..12) IP20 PUSH 0/1..10V
ALD450 (1..7) IP20 DALI 2 PUSH
AL4151 (2..14) IP20 DALI 2
AL4153 (1..14) IP20 PUSH IGBT-TRIAC
AL6050 (2..6) IP67 DALI 2
AL8050 (4..16) IP67 DALI 2
44 mm
48 mm
30 mm
40 mm
55 mm
44 mm
72 mm
72 mm
36 mm
56 mm
N
G
Grey
Grigio
Black
Nero
K
COR-TEN
Z
INOX Steel
AISI 316L
1
Round
Tondo
2
Square
Quadrato
0
2700K
1
3000K
2
4200K
3
6000K
6
Blue
Blu
7
Green
Verde
8
Red
Rosso
JN1 X X X 5
Beam angle 5°
Apertura di fascio 5°
F400 - 5°
60
30
50
50
90
JAN 2
design: Roberto Mantovani
Code Construction - Costruzione del codice
Uplight
1-2W · 350-500mA (Vf 2,9V) · Series wiring - Cablaggio in serie
CRI85 · 2-Step MacAdam
2700K
3000K
4200K
6000K
350mA
500mA
89 lm
128 lm
93 lm
133 lm
103 lm
154 lm
114 lm
165 lm
IP67
IK09
IK10
INOX
CSBU01
Recessing box - Controcassa
140
103
83 43
Accessories - Accessori
Made-to-measure cable
available on request.
Cavo a misura disponibile
su richiesta.
Note - Nota
F971 - 36°
F972 - 46°
F973 - 60°
60
30
60
30
60
30

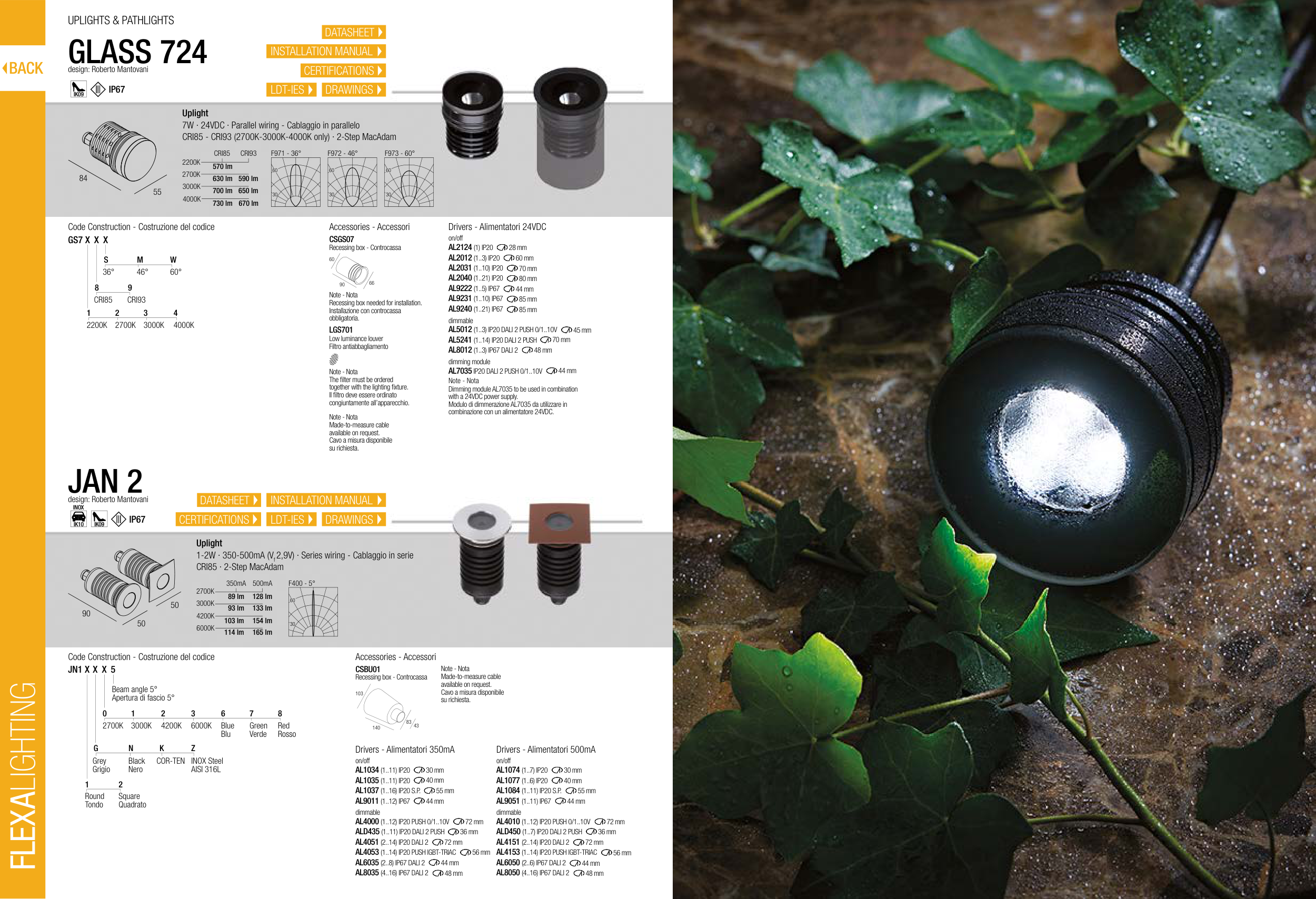

GLASS 724
design: Roberto Mantovani
Code Construction - Costruzione del codice
Uplight
IP67
IK09
7W · 24VDC · Parallel wiring - Cablaggio in parallelo
CRI85 - CRI93 (2700K-3000K-4000K only) · 2-Step MacAdam
55
84
Recessing box needed for installation.
Installazione con controcassa
obbligatoria.
Note - Nota
66
90
60
CSGS07
Recessing box - Controcassa
LGS701
Low luminance louver
Filtro antiabbagliamento
The f lter must be ordered
together with the lighting f xture.
Il f ltro deve essere ordinato
congiuntamente all’apparecchio.
Note - Nota
Accessories - Accessori
Made-to-measure cable
available on request.
Cavo a misura disponibile
su richiesta.
Note - Nota
Drivers - Alimentatori 24VDC
on/off
dimmable
AL2124 (1) IP20
AL2012 (1..3) IP20
AL2031 (1..10) IP20
AL2040 (1..21) IP20
AL9222 (1..5) IP67
AL9231 (1..10) IP67
AL9240 (1..21) IP67
AL5012 (1..3) IP20 DALI 2 PUSH 0/1..10V
AL5241 (1..14) IP20 DALI 2 PUSH
AL8012 (1..3) IP67 DALI 2
60 mm
28 mm
70 mm
80 mm
44 mm
85 mm
85 mm
45 mm
70 mm
44 mm
dimming module
AL7035 IP20 DALI 2 PUSH 0/1..10V
Note - Nota
Dimming module AL7035 to be used in combination
with a 24VDC power supply.
Modulo di dimmerazione AL7035 da utilizzare in
combinazione con un alimentatore 24VDC.
48 mm
2200K
2700K
3000K
CRI85
CRI93
570 lm
630 lm
590 lm
700 lm
650 lm
4000K
730 lm
670 lm
GS7 X X X
S
36°
M
W
46°
60°
8
CRI85
9
CRI93
2
1
2700K
2200K
3
3000K
4
4000K
