UPLIGHTS & PATHLIGHTS
386
GS5 X X
0
2700K
1
3000K
2
4200K
3
6000K
6
Blue
Blu
7
Green
Verde
8
Red
Rosso
0
10°
1
2
20°
40°
GLASS 524
design: Roberto Mantovani
Code Construction - Costruzione del codice
IP67
IK09
Uplight
F201 - 10°
F202 - 20°
F203 - 40°
60
30
60
30
60
30
6W · 24VDC · Parallel wiring - Cablaggio in parallelo
CRI85 · 2-Step MacAdam
2700K
3000K
4200K
6000K
384 lm
400 lm
462 lm
495 lm
69
77
79
83
73
Recessing box needed for installation.
Installazione con controcassa
obbligatoria.
Note - Nota
CSGS05
Recessing box - Controcassa
LGS501
Low luminance louver
Filtro antiabbagliamento
The f lter must be ordered
together with the lighting f xture.
Il f ltro deve essere ordinato
congiuntamente all’apparecchio.
Note - Nota
Accessories - Accessori
Made-to-measure cable
available on request.
Cavo a misura disponibile
su richiesta.
Note - Nota
Drivers - Alimentatori 24VDC
on/off
dimmable
AL2124 (1) IP20
AL2012 (1..4) IP20
AL2031 (1..11) IP20
AL2040 (1..25) IP20
AL9222 (1..6) IP67
AL9231 (1..11) IP67
AL9240 (1..25) IP67
AL5012 (1..4) IP20 DALI 2 PUSH 0/1..10V
AL5241 (1..16) IP20 DALI 2 PUSH
AL8012 (1..4) IP67 DALI 2
60 mm
28 mm
70 mm
80 mm
44 mm
85 mm
85 mm
45 mm
70 mm
44 mm
dimming module
AL7035 IP20 DALI 2 PUSH 0/1..10V
Note - Nota
Dimming module AL7035 to be used in combination
with a 24VDC power supply.
Modulo di dimmerazione AL7035 da utilizzare in
combinazione con un alimentatore 24VDC.
48 mm
44 mm
48 mm
72 mm
Drivers - Alimentatori 350mA
on/off
dimmable
AL1034 (1..3) IP20
AL1035 (1..3) IP20
AL1037 (1..5) IP20 S.P.
AL9011 (1..4) IP67
AL4000 (1..4) IP20 PUSH 0/1..10V
ALD435 (1..3) IP20 DALI 2 PUSH
AL4051 (1..4) IP20 DALI 2
AL4053 (1..4) IP20 PUSH IGBT-TRIAC
AL6035 (1..3) IP67 DALI 2
AL8035 (2..4) IP67 DALI 2
30 mm
40 mm
55 mm
44 mm
72 mm
36 mm
56 mm
44 mm
48 mm
72 mm
Drivers - Alimentatori 500mA
on/off
dimmable
AL1074 (1..2) IP20
AL1077 (1..2) IP20
AL1084 (1..3) IP20 S.P.
AL9051 (1..3) IP67
AL4010 (1..4) IP20 PUSH 0/1..10V
ALD450 (1..2) IP20 DALI 2 PUSH
AL4151 (1..4) IP20 DALI 2
AL4153 (1..4) IP20 PUSH IGBT-TRIAC
AL6050 (1..2) IP67 DALI 2
AL8050 (2..4) IP67 DALI 2
30 mm
40 mm
55 mm
44 mm
72 mm
36 mm
56 mm

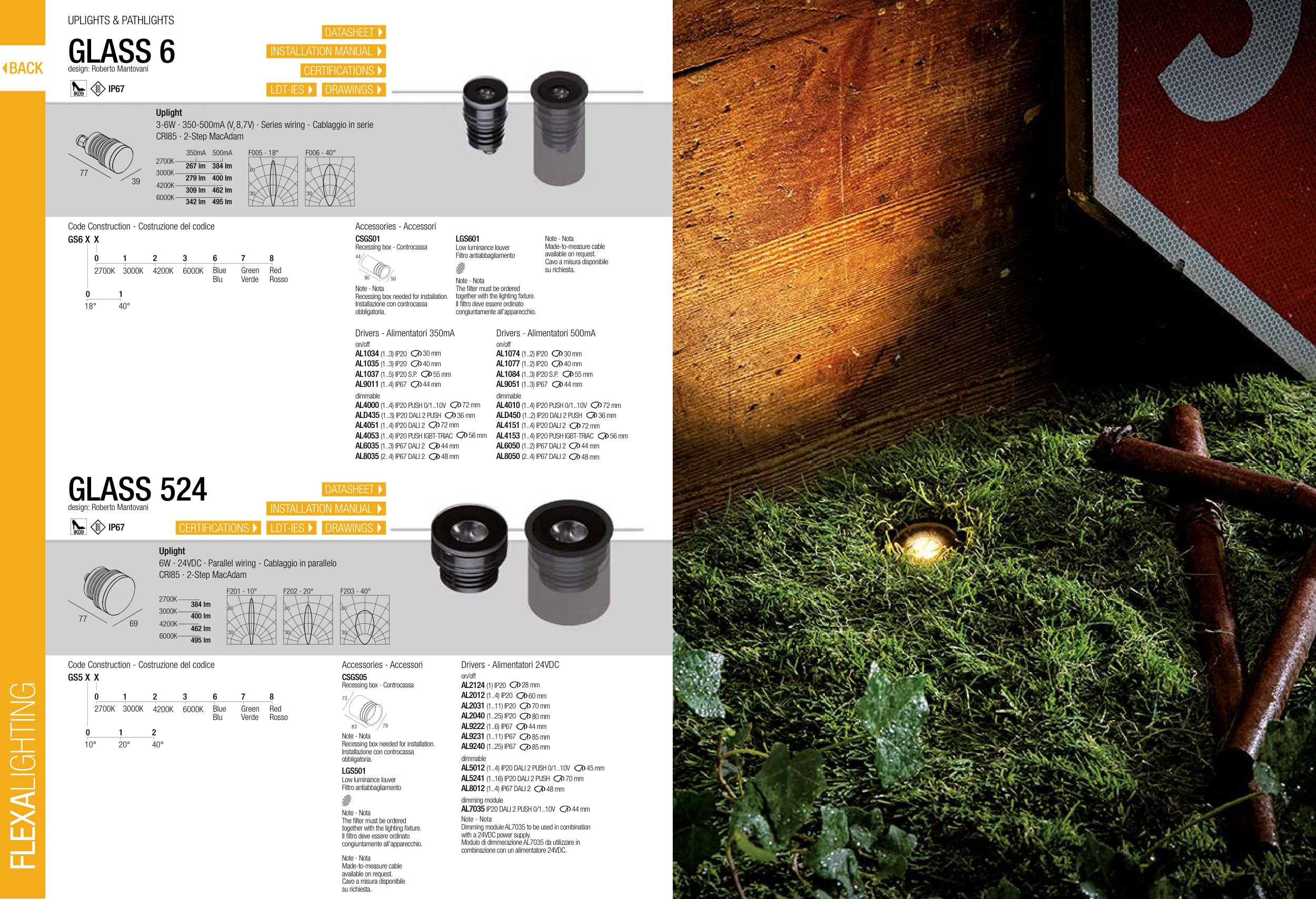

GLASS 6
design: Roberto Mantovani
Code Construction - Costruzione del codice
IP67
IK09
2700K
3000K
4200K
6000K
350mA
500mA
267 lm
384 lm
279 lm
400 lm
309 lm
462 lm
342 lm
495 lm
Uplight
3-6W · 350-500mA (Vf 8,7V) · Series wiring - Cablaggio in serie
CRI85 · 2-Step MacAdam
F005 - 18°
F006 - 40°
60
30
60
30
39
77
GS6 X X
0
2700K
1
3000K
2
4200K
3
6000K
6
Blue
Blu
7
Green
Verde
8
Red
Rosso
0
18°
1
40°
Recessing box needed for installation.
Installazione con controcassa
obbligatoria.
Note - Nota
CSGS01
Recessing box - Controcassa
50
90
44
LGS601
Low luminance louver
Filtro antiabbagliamento
The f lter must be ordered
together with the lighting f xture.
Il f ltro deve essere ordinato
congiuntamente all’apparecchio.
Note - Nota
Accessories - Accessori
Made-to-measure cable
available on request.
Cavo a misura disponibile
su richiesta.
Note - Nota
