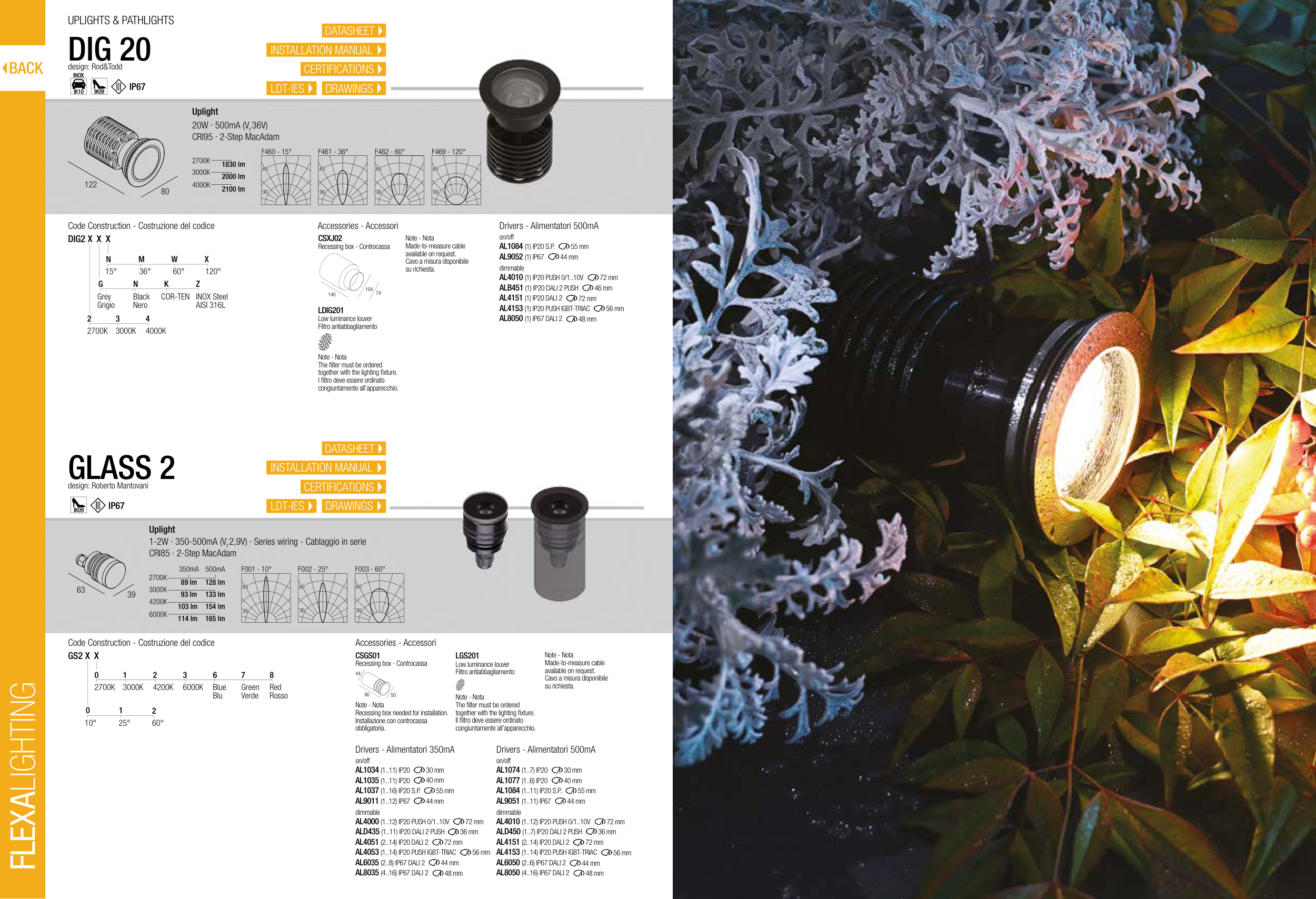

UPLIGHTS & PATHLIGHTS
384
GS2 X X
0
2700K
1
3000K
2
4200K
3
6000K
6
Blue
Blu
7
Green
Verde
8
Red
Rosso
0
10°
1
2
25°
60°
GLASS 2
design: Roberto Mantovani
Code Construction - Costruzione del codice
F001 - 10°
F002 - 25°
F003 - 60°
60
30
60
30
60
30
Uplight
1-2W · 350-500mA (Vf 2,9V) · Series wiring - Cablaggio in serie
CRI85 · 2-Step MacAdam
2700K
3000K
4200K
6000K
350mA
500mA
89 lm
128 lm
93 lm
133 lm
103 lm
154 lm
114 lm
165 lm
IP67
IK09
39
63
Recessing box needed for installation.
Installazione con controcassa
obbligatoria.
Note - Nota
CSGS01
Recessing box - Controcassa
50
90
44
LGS201
Low luminance louver
Filtro antiabbagliamento
The f lter must be ordered
together with the lighting f xture.
Il f ltro deve essere ordinato
congiuntamente all’apparecchio.
Note - Nota
Accessories - Accessori
Made-to-measure cable
available on request.
Cavo a misura disponibile
su richiesta.
Note - Nota
Drivers - Alimentatori 350mA
on/off
dimmable
AL1034 (1..11) IP20
AL1035 (1..11) IP20
AL1037 (1..16) IP20 S.P.
AL9011 (1..12) IP67
AL4000 (1..12) IP20 PUSH 0/1..10V
ALD435 (1..11) IP20 DALI 2 PUSH
AL4051 (2..14) IP20 DALI 2
AL4053 (1..14) IP20 PUSH IGBT-TRIAC
AL6035 (2..8) IP67 DALI 2
AL8035 (4..16) IP67 DALI 2
30 mm
40 mm
55 mm
44 mm
72 mm
72 mm
36 mm
56 mm
44 mm
48 mm
Drivers - Alimentatori 500mA
on/off
dimmable
AL1074 (1..7) IP20
AL1077 (1..6) IP20
AL1084 (1..11) IP20 S.P.
AL9051 (1..11) IP67
AL4010 (1..12) IP20 PUSH 0/1..10V
ALD450 (1..7) IP20 DALI 2 PUSH
AL4151 (2..14) IP20 DALI 2
AL4153 (1..14) IP20 PUSH IGBT-TRIAC
AL6050 (2..6) IP67 DALI 2
AL8050 (4..16) IP67 DALI 2
44 mm
48 mm
30 mm
40 mm
55 mm
44 mm
72 mm
72 mm
36 mm
56 mm
80
122
Code Construction - Costruzione del codice
DIG2 X X X
2
2700K
3
3000K
4
4000K
N
G
Grey
Grigio
Black
Nero
K
COR-TEN
Z
INOX Steel
AISI 316L
N
15°
M
W
X
36°
60°
120°
Drivers - Alimentatori 500mA
on/off
dimmable
AL1084 (1) IP20 S.P.
AL9052 (1) IP67
AL4010 (1) IP20 PUSH 0/1..10V
ALB451 (1) IP20 DALI 2 PUSH
AL4151 (1) IP20 DALI 2
AL4153 (1) IP20 PUSH IGBT-TRIAC
AL8050 (1) IP67 DALI 2
55 mm
44 mm
72 mm
72 mm
46 mm
56 mm
48 mm
Made-to-measure cable
available on request.
Cavo a misura disponibile
su richiesta.
Note - Nota
2700K
3000K
4000K
1830 lm
2000 lm
2100 lm
Uplight
20W · 500mA (Vf 36V)
CRI95 · 2-Step MacAdam
F460 - 15°
F461 - 36°
F462 - 60°
F469 - 120°
60
30
60
30
60
30
60
30
Accessories - Accessori
The f lter must be ordered
together with the lighting f xture.
l f ltro deve essere ordinato
congiuntamente all’apparecchio.
Note - Nota
LDIG201
Low luminance louver
Filtro antiabbagliamento
CSXJ02
Recessing box - Controcassa
140
74
104
DIG 20
design: Rod&Todd
IP67
IK09
IK10
INOX
