IP RATED DOWNLIGHTS
366
2700K
3000K
4000K
CRI85
CRI93
890 lm
840 lm
1000 lm
930 lm
1040 lm
960 lm

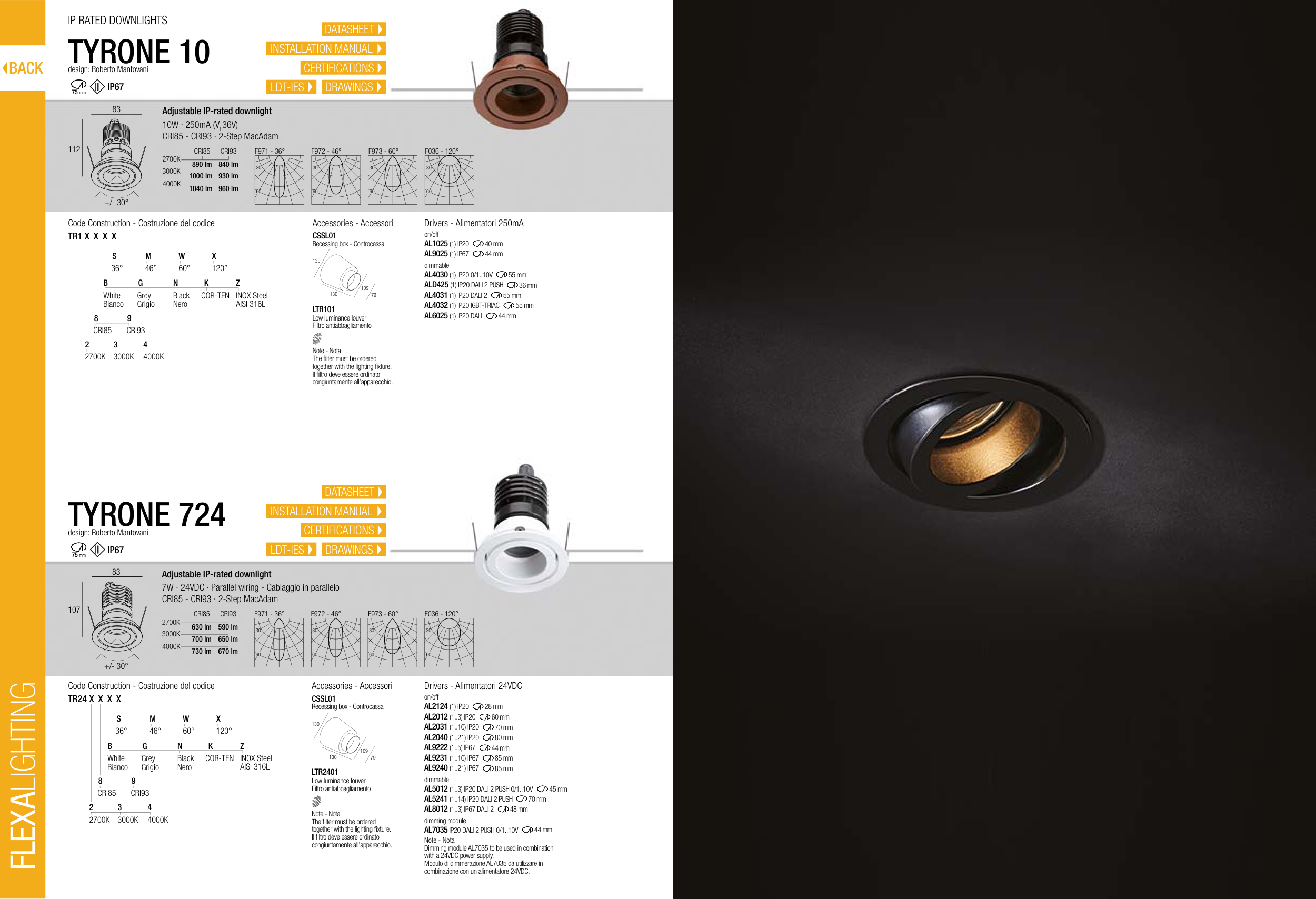

TYRONE 10
Code Construction - Costruzione del codice
Adjustable IP-rated downlight
10W · 250mA (Vf 36V)
CRI85 - CRI93 · 2-Step MacAdam
130
130
79
109
LTR101
Low luminance louver
Filtro antiabbagliamento
The f lter must be ordered
together with the lighting f xture.
Il f ltro deve essere ordinato
congiuntamente all’apparecchio.
Note - Nota
CSSL01
Recessing box - Controcassa
Accessories - Accessori
F971 - 36°
F972 - 46°
F973 - 60°
30
60
30
60
30
60
F036 - 120°
30
60
TR1 X X X X
2
2700K
3
3000K
4
4000K
S
36°
M
W
X
46°
60°
120°
B
White
Bianco
N
G
Grey
Grigio
Black
Nero
K
COR-TEN
Z
INOX Steel
AISI 316L
8
CRI85
9
CRI93
design: Roberto Mantovani
IP67
75 mm
+/- 30°
83
112
Drivers - Alimentatori 250mA
on/off
dimmable
AL1025 (1) IP20
AL9025 (1) IP67
AL4030 (1) IP20 0/1..10V
ALD425 (1) IP20 DALI 2 PUSH
AL4031 (1) IP20 DALI 2
AL4032 (1) IP20 IGBT-TRIAC
AL6025 (1) IP20 DALI
40 mm
44 mm
55 mm
55 mm
36 mm
55 mm
44 mm
2700K
3000K
4000K
CRI85
CRI93
630 lm
590 lm
700 lm
650 lm
730 lm
670 lm
TYRONE 724
design: Roberto Mantovani
Code Construction - Costruzione del codice
IP67
75 mm
Adjustable IP-rated downlight
7W · 24VDC · Parallel wiring - Cablaggio in parallelo
CRI85 - CRI93 · 2-Step MacAdam
F971 - 36°
F972 - 46°
F973 - 60°
30
60
30
60
30
60
F036 - 120°
30
60
TR24 X X X X
2
2700K
3
3000K
4
4000K
S
36°
M
W
X
46°
60°
120°
B
White
Bianco
N
G
Grey
Grigio
Black
Nero
K
COR-TEN
Z
INOX Steel
AISI 316L
8
CRI85
9
CRI93
Accessories - Accessori
130
130
79
109
LTR2401
Low luminance louver
Filtro antiabbagliamento
The f lter must be ordered
together with the lighting f xture.
Il f ltro deve essere ordinato
congiuntamente all’apparecchio.
Note - Nota
CSSL01
Recessing box - Controcassa
83
+/- 30°
107
Drivers - Alimentatori 24VDC
on/off
dimmable
AL2124 (1) IP20
AL2012 (1..3) IP20
AL2031 (1..10) IP20
AL2040 (1..21) IP20
AL9222 (1..5) IP67
AL9231 (1..10) IP67
AL9240 (1..21) IP67
AL5012 (1..3) IP20 DALI 2 PUSH 0/1..10V
AL5241 (1..14) IP20 DALI 2 PUSH
AL8012 (1..3) IP67 DALI 2
60 mm
28 mm
70 mm
80 mm
44 mm
85 mm
85 mm
45 mm
70 mm
44 mm
dimming module
AL7035 IP20 DALI 2 PUSH 0/1..10V
Note - Nota
Dimming module AL7035 to be used in combination
with a 24VDC power supply.
Modulo di dimmerazione AL7035 da utilizzare in
combinazione con un alimentatore 24VDC.
48 mm
