IP RATED DOWNLIGHTS
352
Drivers - Alimentatori 500mA
on/off
dimmable
AL1084 (1) IP20 S.P.
AL9052 (1) IP67
AL4010 (1) IP20 PUSH 0/1..10V
ALB451 (1) IP20 DALI 2 PUSH
AL4151 (1) IP20 DALI 2
AL4153 (1) IP20 PUSH IGBT-TRIAC
AL8050 (1) IP67 DALI 2
30 mm
44 mm
72 mm
72 mm
46 mm
56 mm
48 mm
30
60
F901 - 23°
F902 - 35°
F903 - 52°
30
60
30
60
30
60
F904 - 120°
F979 - 10°
30
60
2700K
3000K
4000K
CRI85
CRI93
1830 lm 1700 lm
2000 lm 1830 lm
2100 lm 1950 lm

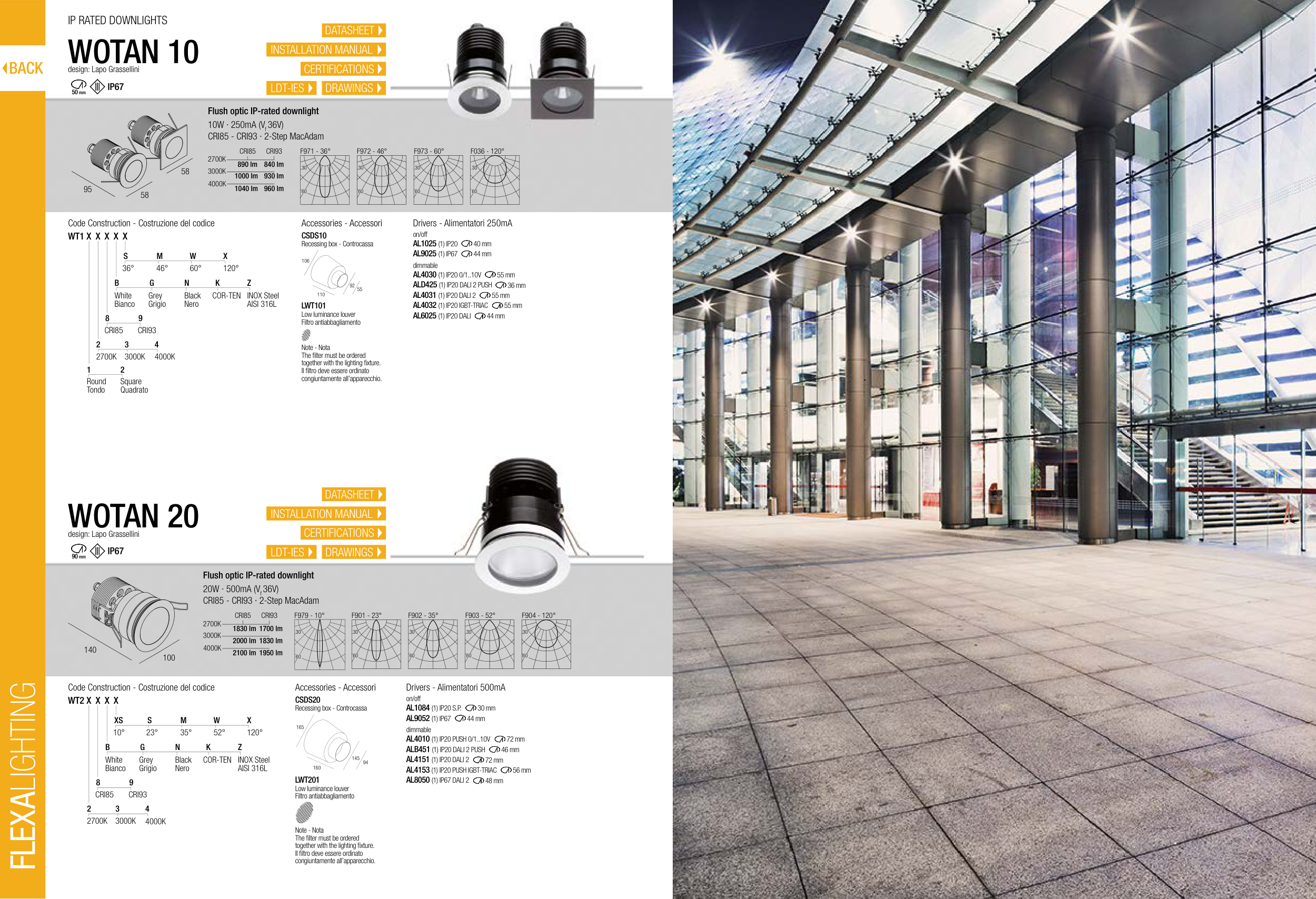

WOTAN 20
design: Lapo Grassellini
Code Construction - Costruzione del codice
IP67
90 mm
Flush optic IP-rated downlight
20W · 500mA (Vf 36V)
CRI85 - CRI93 · 2-Step MacAdam
WT2 X X X X
2
2700K
3
3000K
4
4000K
S
XS
23°
10°
M
W
X
35°
52°
120°
B
White
Bianco
N
G
Grey
Grigio
Black
Nero
K
COR-TEN
Z
INOX Steel
AISI 316L
8
CRI85
9
CRI93
100
140
Accessories - Accessori
94
145
165
160
CSDS20
Recessing box - Controcassa
The f lter must be ordered
together with the lighting f xture.
Il f ltro deve essere ordinato
congiuntamente all’apparecchio.
Note - Nota
LWT201
Low luminance louver
Filtro antiabbagliamento
Drivers - Alimentatori 250mA
on/off
dimmable
AL1025 (1) IP20
AL9025 (1) IP67
AL4030 (1) IP20 0/1..10V
ALD425 (1) IP20 DALI 2 PUSH
AL4031 (1) IP20 DALI 2
AL4032 (1) IP20 IGBT-TRIAC
AL6025 (1) IP20 DALI
40 mm
44 mm
55 mm
55 mm
36 mm
55 mm
44 mm
2700K
3000K
4000K
CRI85
CRI93
890 lm
840 lm
1000 lm
930 lm
1040 lm
960 lm
WOTAN 10
design: Lapo Grassellini
Code Construction - Costruzione del codice
IP67
50 mm
Flush optic IP-rated downlight
10W · 250mA (Vf 36V)
CRI85 - CRI93 · 2-Step MacAdam
F971 - 36°
F972 - 46°
F973 - 60°
30
60
30
60
30
60
F036 - 120°
30
60
WT1 X X X X X
2
2700K
3
3000K
4
4000K
S
36°
M
W
X
46°
60°
120°
B
White
Bianco
N
G
Grey
Grigio
Black
Nero
K
COR-TEN
Z
INOX Steel
AISI 316L
1
Round
Tondo
2
Square
Quadrato
8
CRI85
9
CRI93
Accessories - Accessori
55
92
110
106
CSDS10
Recessing box - Controcassa
LWT101
Low luminance louver
Filtro antiabbagliamento
The f lter must be ordered
together with the lighting f xture.
Il f ltro deve essere ordinato
congiuntamente all’apparecchio.
Note - Nota
58
58
95
