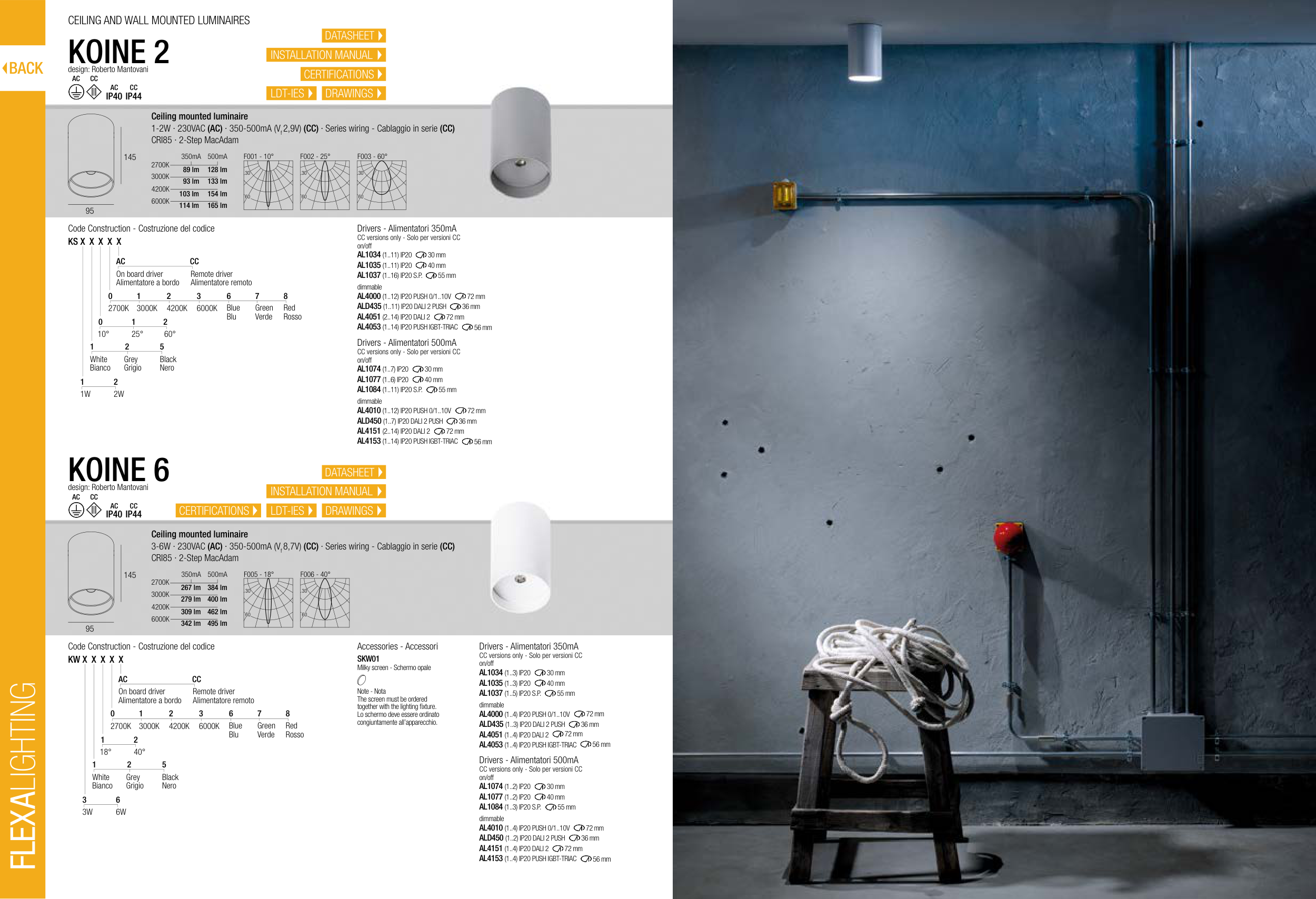

CEILING AND WALL MOUNTED LUMINAIRES
312
KOINE 2
design: Roberto Mantovani
Code Construction - Costruzione del codice
F001 - 10°
F002 - 25°
F003 - 60°
30
60
30
60
30
60
Ceiling mounted luminaire
1-2W · 230VAC (AC) · 350-500mA (Vf 2,9V) (CC) · Series wiring - Cablaggio in serie (CC)
CRI85 · 2-Step MacAdam
2700K
3000K
4200K
6000K
350mA
500mA
89 lm
128 lm
93 lm
133 lm
103 lm
154 lm
114 lm
165 lm
KS X X X X X
1
1W
2
2W
0
10°
1
25°
0
2700K
1
3000K
2
4200K
3
6000K
6
Blue
Blu
7
Green
Verde
8
Red
Rosso
1
White
Bianco
5
2
Grey
Grigio
Black
Nero
2
60°
AC
On board driver
Alimentatore a bordo
Remote driver
Alimentatore remoto
CC
95
145
F005 - 18°
F006 - 40°
30
60
30
60
2700K
3000K
4200K
6000K
350mA
500mA
267 lm
384 lm
279 lm
400 lm
309 lm
462 lm
342 lm
495 lm
KOINE 6
design: Roberto Mantovani
Code Construction - Costruzione del codice
Ceiling mounted luminaire
3-6W · 230VAC (AC) · 350-500mA (Vf 8,7V) (CC) · Series wiring - Cablaggio in serie (CC)
CRI85 · 2-Step MacAdam
KW X X X X X
3
3W
6
6W
1
18°
2
40°
0
2700K
1
3000K
2
4200K
3
6000K
6
Blue
Blu
7
Green
Verde
8
Red
Rosso
1
White
Bianco
5
2
Grey
Grigio
Black
Nero
AC
On board driver
Alimentatore a bordo
Remote driver
Alimentatore remoto
CC
95
145
Accessories - Accessori
SKW01
Milky screen - Schermo opale
Note - Nota
The screen must be ordered
together with the lighting f xture.
Lo schermo deve essere ordinato
congiuntamente all’apparecchio.
Drivers - Alimentatori 350mA
CC versions only - Solo per versioni CC
on/off
dimmable
AL1034 (1..11) IP20
AL1035 (1..11) IP20
AL1037 (1..16) IP20 S.P.
AL4000 (1..12) IP20 PUSH 0/1..10V
ALD435 (1..11) IP20 DALI 2 PUSH
AL4051 (2..14) IP20 DALI 2
AL4053 (1..14) IP20 PUSH IGBT-TRIAC
30 mm
40 mm
55 mm
72 mm
72 mm
36 mm
56 mm
Drivers - Alimentatori 500mA
CC versions only - Solo per versioni CC
on/off
dimmable
AL1074 (1..7) IP20
AL1077 (1..6) IP20
AL1084 (1..11) IP20 S.P.
AL4010 (1..12) IP20 PUSH 0/1..10V
ALD450 (1..7) IP20 DALI 2 PUSH
AL4151 (2..14) IP20 DALI 2
AL4153 (1..14) IP20 PUSH IGBT-TRIAC
30 mm
40 mm
55 mm
72 mm
72 mm
36 mm
56 mm
Drivers - Alimentatori 350mA
CC versions only - Solo per versioni CC
72 mm
on/off
dimmable
AL1034 (1..3) IP20
AL1035 (1..3) IP20
AL1037 (1..5) IP20 S.P.
AL4000 (1..4) IP20 PUSH 0/1..10V
ALD435 (1..3) IP20 DALI 2 PUSH
AL4051 (1..4) IP20 DALI 2
AL4053 (1..4) IP20 PUSH IGBT-TRIAC
30 mm
40 mm
55 mm
72 mm
36 mm
56 mm
Drivers - Alimentatori 500mA
CC versions only - Solo per versioni CC
72 mm
on/off
dimmable
AL1074 (1..2) IP20
AL1077 (1..2) IP20
AL1084 (1..3) IP20 S.P.
AL4010 (1..4) IP20 PUSH 0/1..10V
ALD450 (1..2) IP20 DALI 2 PUSH
AL4151 (1..4) IP20 DALI 2
AL4153 (1..4) IP20 PUSH IGBT-TRIAC
30 mm
40 mm
55 mm
72 mm
36 mm
56 mm
IP40 IP44
AC
AC
CC
CC
IP40 IP44
AC
AC
CC
CC
