150cm - 250cm - 400cm - 1000cm
7cm
Ø9,2cm
Ø10,5cm
12,5cm
150cm - 250cm - 400cm - 1000cm
40cm
Ø2,8cm
150cm - 250cm - 400cm - 1000cm

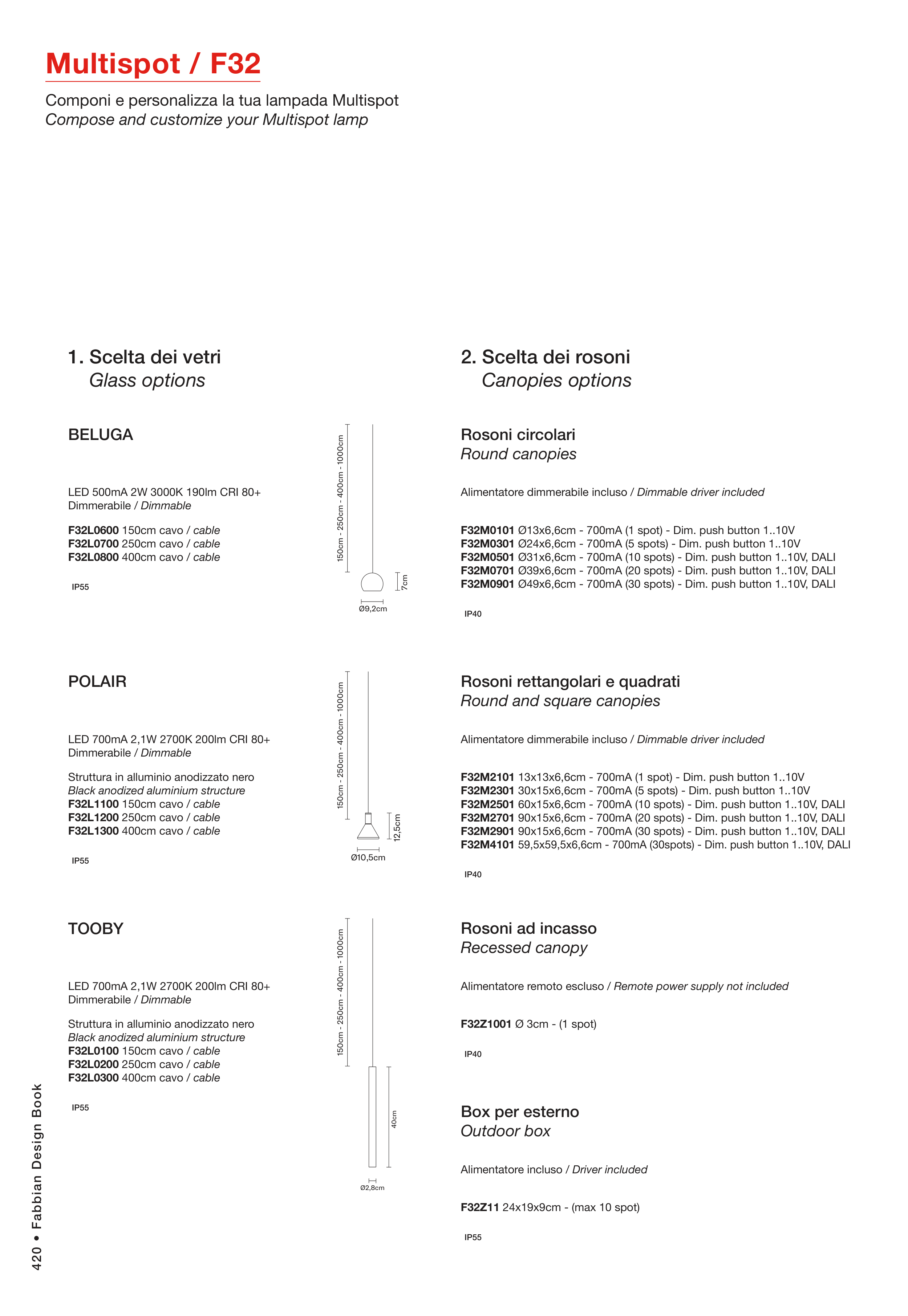

Multispot / F32
Componi e personalizza la tua lampada Multispot
Compose and customize your Multispot lamp
1. Scelta dei vetri
Glass options
2. Scelta dei rosoni
Canopies options
BELUGA
Rosoni circolari
Round canopies
Rosoni rettangolari e quadrati
Round and square canopies
Rosoni ad incasso
Recessed canopy
Box per esterno
Outdoor box
LED 500mA 2W 3000K 190lm CRI 80+
Dimmerabile / Dimmable
F32L0600 150cm cavo / cable
F32L0700 250cm cavo / cable
F32L0800 400cm cavo / cable
Alimentatore dimmerabile incluso / Dimmable driver included
Alimentatore dimmerabile incluso / Dimmable driver included
Alimentatore remoto escluso / Remote power supply not included
Alimentatore incluso / Driver included
F32M0101 Ø13x6,6cm - 700mA (1 spot) - Dim. push button 1..10V
F32M0301 Ø24x6,6cm - 700mA (5 spots) - Dim. push button 1..10V
F32M0501 Ø31x6,6cm - 700mA (10 spots) - Dim. push button 1..10V, DALI
F32M0701 Ø39x6,6cm - 700mA (20 spots) - Dim. push button 1..10V, DALI
F32M0901 Ø49x6,6cm - 700mA (30 spots) - Dim. push button 1..10V, DALI
F32M2101 13x13x6,6cm - 700mA (1 spot) - Dim. push button 1..10V
F32M2301 30x15x6,6cm - 700mA (5 spots) - Dim. push button 1..10V
F32M2501 60x15x6,6cm - 700mA (10 spots) - Dim. push button 1..10V, DALI
F32M2701 90x15x6,6cm - 700mA (20 spots) - Dim. push button 1..10V, DALI
F32M2901 90x15x6,6cm - 700mA (30 spots) - Dim. push button 1..10V, DALI
F32M4101 59,5x59,5x6,6cm - 700mA (30spots) - Dim. push button 1..10V, DALI
F32Z1001 Ø 3cm - (1 spot)
F32Z11 24x19x9cm - (max 10 spot)
POLAIR
LED 700mA 2,1W 2700K 200lm CRI 80+
Dimmerabile / Dimmable
Struttura in alluminio anodizzato nero
Black anodized aluminium structure
F32L1100 150cm cavo / cable
F32L1200 250cm cavo / cable
F32L1300 400cm cavo / cable
TOOBY
LED 700mA 2,1W 2700K 200lm CRI 80+
Dimmerabile / Dimmable
Struttura in alluminio anodizzato nero
Black anodized aluminium structure
F32L0100 150cm cavo / cable
F32L0200 250cm cavo / cable
F32L0300 400cm cavo / cable
420 • Fabbian Design Book
