Ground plan
Invisible Pass single door version

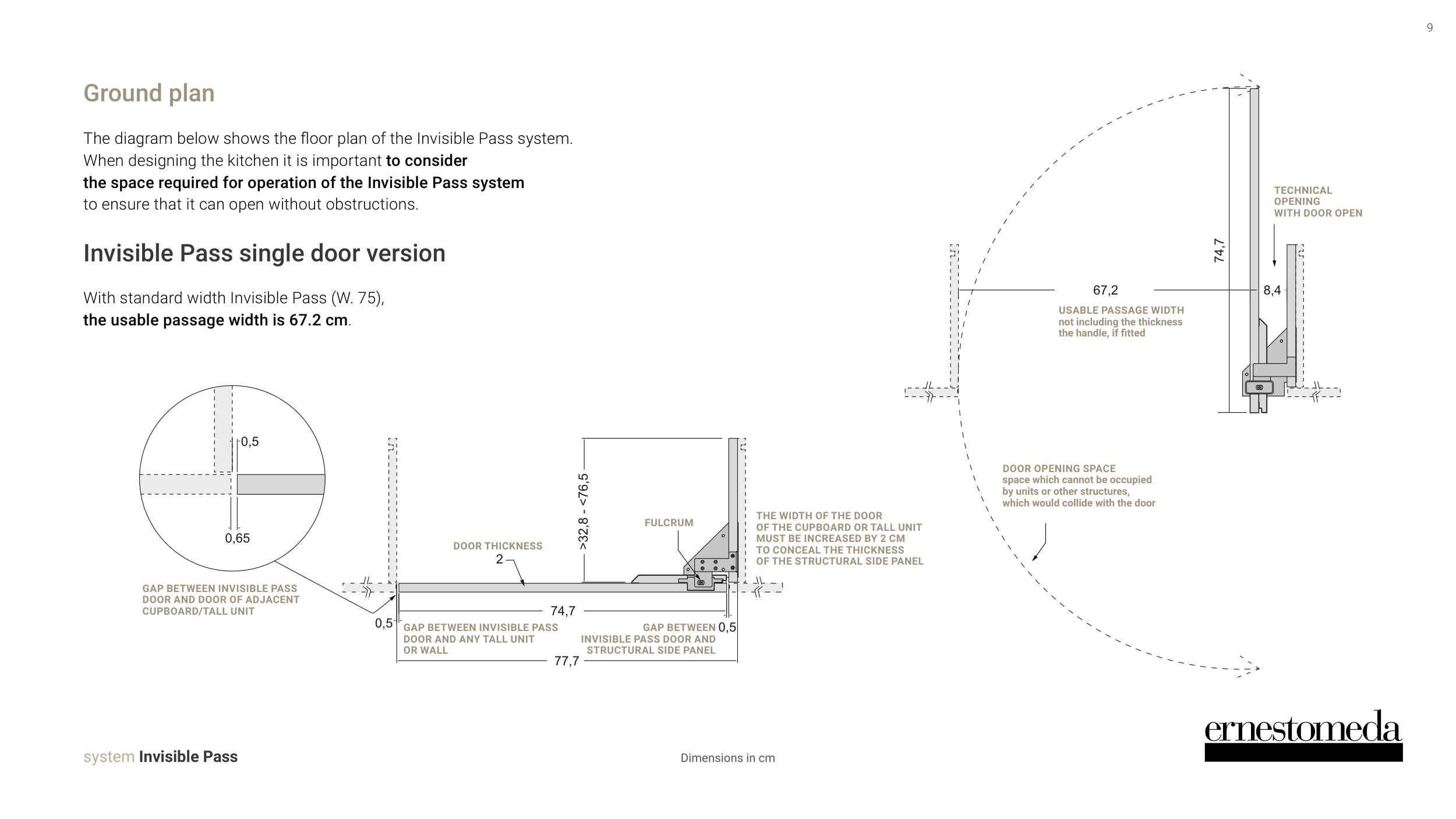

The diagram below shows the floor plan of the Invisible Pass system.
When designing the kitchen it is important to consider
the space required for operation of the Invisible Pass system
to ensure that it can open without obstructions.
With standard width Invisible Pass (W. 75),
the usable passage width is 67.2 cm.
9
Dimensions in cm
74,7
0,5
>32,8 - <76,5
77,7
0,5
2
0,65
0,5
8,4
67,2
74,7
system Invisible Pass
GAP BETWEEN INVISIBLE PASS
DOOR AND DOOR OF ADJACENT
CUPBOARD/TALL UNIT
GAP BETWEEN INVISIBLE PASS
DOOR AND ANY TALL UNIT
OR WALL
DOOR THICKNESS
FULCRUM
THE WIDTH OF THE DOOR
OF THE CUPBOARD OR TALL UNIT
MUST BE INCREASED BY 2 CM
TO CONCEAL THE THICKNESS
OF THE STRUCTURAL SIDE PANEL
USABLE PASSAGE WIDTH
not including the thickness
the handle, if fitted
GAP BETWEEN
INVISIBLE PASS DOOR AND
STRUCTURAL SIDE PANEL
TECHNICAL
OPENING
WITH DOOR OPEN
DOOR OPENING SPACE
space which cannot be occupied
by units or other structures,
which would collide with the door
