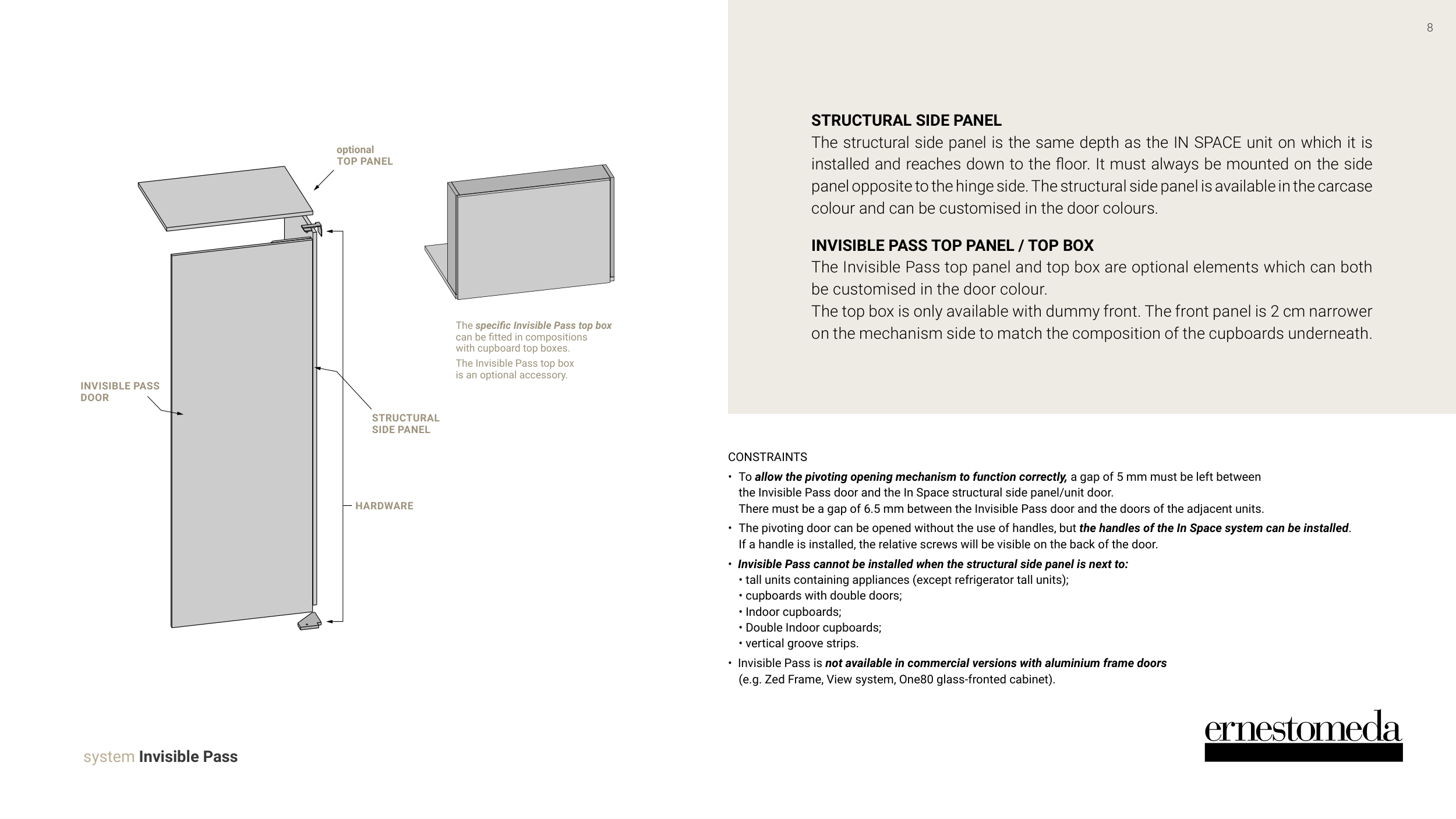

STRUCTURAL SIDE PANEL
The structural side panel is the same depth as the IN SPACE unit on which it is
installed and reaches down to the floor. It must always be mounted on the side
panel opposite to the hinge side. The structural side panel is available in the carcase
colour and can be customised in the door colours.
INVISIBLE PASS TOP PANEL / TOP BOX
The Invisible Pass top panel and top box are optional elements which can both
be customised in the door colour.
The top box is only available with dummy front. The front panel is 2 cm narrower
on the mechanism side to match the composition of the cupboards underneath.
CONSTRAINTS
• To allow the pivoting opening mechanism to function correctly, a gap of 5 mm must be left between
the Invisible Pass door and the In Space structural side panel/unit door.
There must be a gap of 6.5 mm between the Invisible Pass door and the doors of the adjacent units.
• The pivoting door can be opened without the use of handles, but the handles of the In Space system can be installed.
If a handle is installed, the relative screws will be visible on the back of the door.
• Invisible Pass cannot be installed when the structural side panel is next to:
• tall units containing appliances (except refrigerator tall units);
• cupboards with double doors;
• Indoor cupboards;
• Double Indoor cupboards;
• vertical groove strips.
• Invisible Pass is not available in commercial versions with aluminium frame doors
(e.g. Zed Frame, View system, One80 glass-fronted cabinet).
system Invisible Pass
8
The specific Invisible Pass top box
can be fitted in compositions
with cupboard top boxes.
The Invisible Pass top box
is an optional accessory.
STRUCTURAL
SIDE PANEL
HARDWARE
INVISIBLE PASS
DOOR
optional
TOP PANEL
