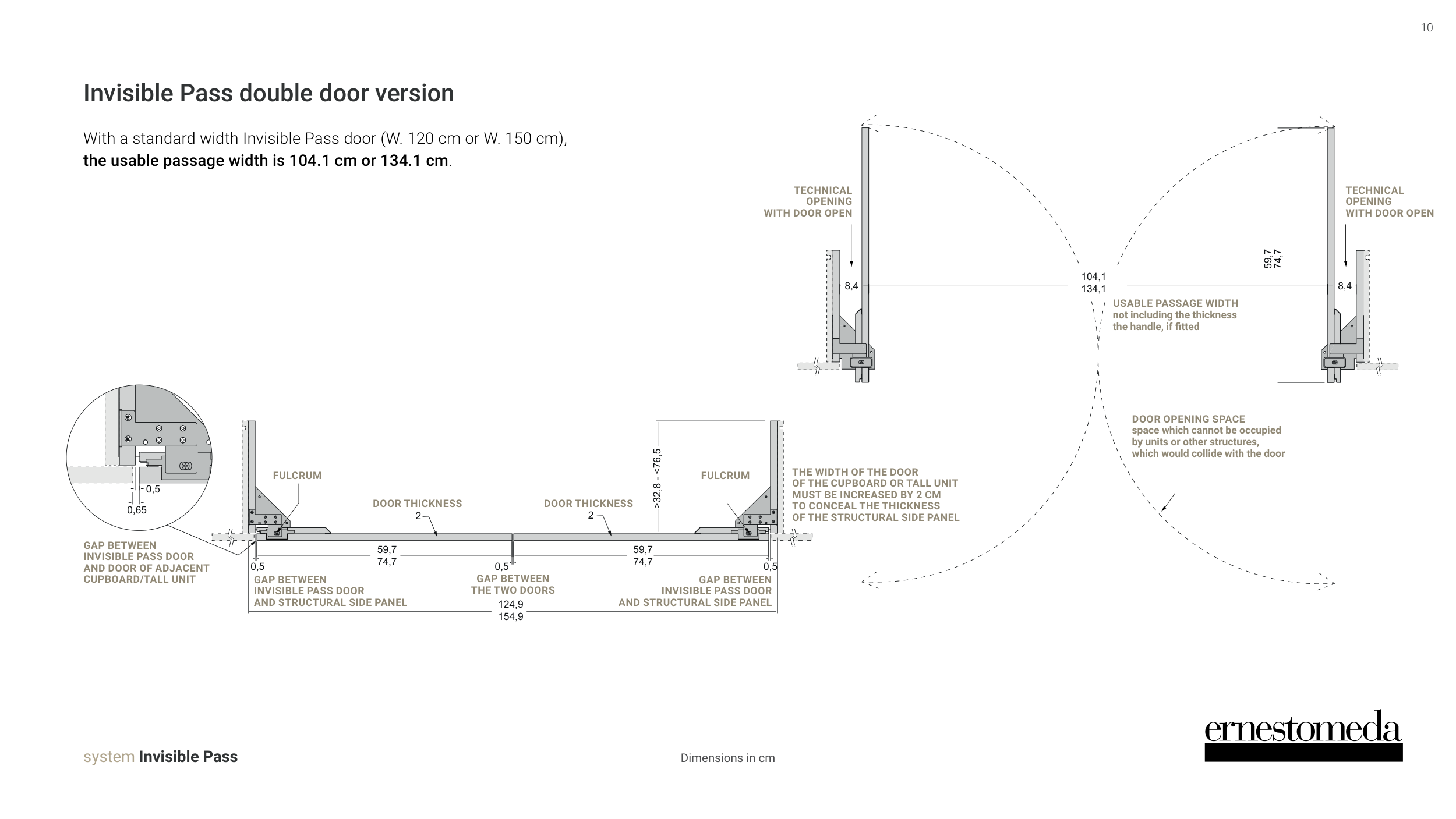

Invisible Pass double door version
With a standard width Invisible Pass door (W. 120 cm or W. 150 cm),
the usable passage width is 104.1 cm or 134.1 cm.
system Invisible Pass
10
8,4
8,4
104,1
134,1
59,7
74,7
Dimensions in cm
59,7
74,7
0,5
>32,8 - <76,5
124,9
154,9
0,5
2
0,5
2
59,7
74,7
0,5
0,65
GAP BETWEEN
INVISIBLE PASS DOOR
AND DOOR OF ADJACENT
CUPBOARD/TALL UNIT
GAP BETWEEN
INVISIBLE PASS DOOR
AND STRUCTURAL SIDE PANEL
GAP BETWEEN
INVISIBLE PASS DOOR
AND STRUCTURAL SIDE PANEL
FULCRUM
FULCRUM
DOOR THICKNESS
DOOR THICKNESS
GAP BETWEEN
THE TWO DOORS
THE WIDTH OF THE DOOR
OF THE CUPBOARD OR TALL UNIT
MUST BE INCREASED BY 2 CM
TO CONCEAL THE THICKNESS
OF THE STRUCTURAL SIDE PANEL
TECHNICAL
OPENING
WITH DOOR OPEN
TECHNICAL
OPENING
WITH DOOR OPEN
USABLE PASSAGE WIDTH
not including the thickness
the handle, if fitted
DOOR OPENING SPACE
space which cannot be occupied
by units or other structures,
which would collide with the door
