COASTAL GUARANTEE
COASTAL GUARANTEE
ASSEMBLED
IN THE UK
www.elsteadlighting.com | 279

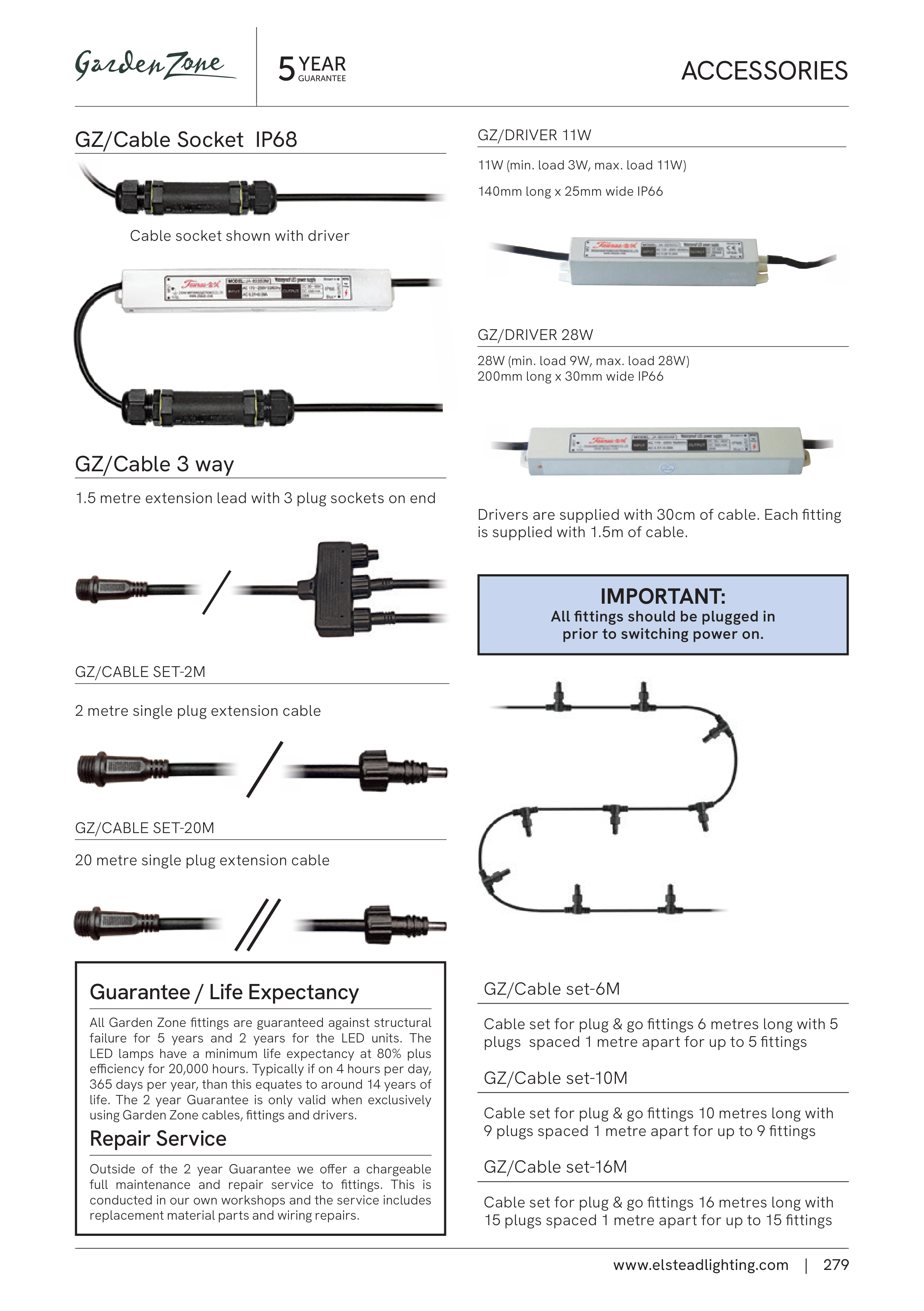

ACCESSORIES
Guarantee / Life Expectancy
All Garden Zone fittings are guaranteed against structural
failure for 5 years and 2 years for the LED units. The
LED lamps have a minimum life expectancy at 80% plus
efficiency for 20,000 hours. Typically if on 4 hours per day,
365 days per year, than this equates to around 14 years of
life. The 2 year Guarantee is only valid when exclusively
using Garden Zone cables, fittings and drivers.
Repair Service
Outside of the 2 year Guarantee we offer a chargeable
full maintenance and repair service to fittings. This is
conducted in our own workshops and the service includes
replacement material parts and wiring repairs.
GZ/Cable set-6M
Cable set for plug & go fittings 6 metres long with 5
plugs spaced 1 metre apart for up to 5 fittings
GZ/Cable set-10M
Cable set for plug & go fittings 10 metres long with
9 plugs spaced 1 metre apart for up to 9 fittings
GZ/Cable set-16M
Cable set for plug & go fittings 16 metres long with
15 plugs spaced 1 metre apart for up to 15 fittings
IMPORTANT:
All fittings should be plugged in
prior to switching power on.
28W (min. load 9W, max. load 28W)
200mm long x 30mm wide IP66
GZ/DRIVER 28W
Drivers are supplied with 30cm of cable. Each fitting
is supplied with 1.5m of cable.
11W (min. load 3W, max. load 11W)
140mm long x 25mm wide IP66
GZ/DRIVER 11W
GZ/CABLE SET-20M
20 metre single plug extension cable
GZ/CABLE SET-2M
2 metre single plug extension cable
GZ/Cable 3 way
1.5 metre extension lead with 3 plug sockets on end
GZ/Cable Socket IP68
Cable socket shown with driver
