31
Indoor Living
FAN FEATURES
Mounting Slope/Pitch 30°
Location Rating IP20 (Dry)
Hanging Weight 11.29kg
Body Material Steel
Warranty Limited Lifetime

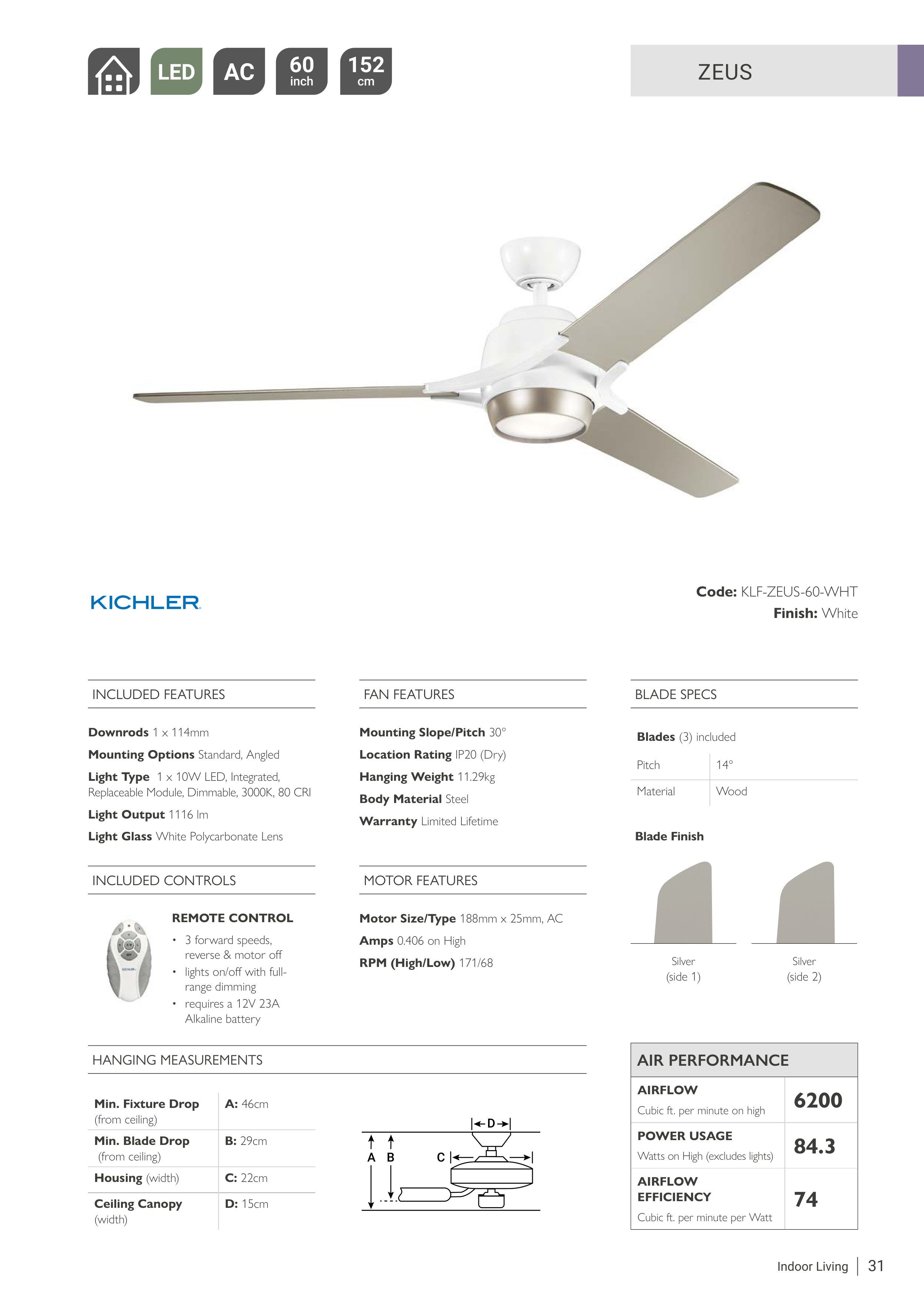

ZEUS
HANGING MEASUREMENTS
Min. Fixture Drop
(from ceiling)
A: 46cm
Min. Blade Drop
(from ceiling)
B: 29cm
Housing (width)
C: 22cm
Ceiling Canopy
(width)
D: 15cm
BLADE SPECS
Blades (3) included
Pitch
14°
Material
Wood
Blade Finish
Silver
(side 1)
Silver
(side 2)
152
cm
LED
AC
60
inch
Code: KLF-ZEUS-60-WHT
Finish: White
A
B
C
D
MOTOR FEATURES
Motor Size/Type 188mm x 25mm, AC
Amps 0.406 on High
RPM (High/Low) 171/68
INCLUDED FEATURES
Downrods 1 x 114mm
Mounting Options Standard, Angled
Light Type 1 x 10W LED, Integrated,
Replaceable Module, Dimmable, 3000K, 80 CRI
Light Output 1116 lm
Light Glass White Polycarbonate Lens
AIR PERFORMANCE
AIRFLOW
Cubic ft. per minute on high
6200
POWER USAGE
Watts on High (excludes lights)
84.3
AIRFLOW
EFFICIENCY
Cubic ft. per minute per Watt
74
INCLUDED CONTROLS
REMOTE CONTROL
• 3 forward speeds,
reverse & motor off
• lights on/off with full-
range dimming
• requires a 12V 23A
Alkaline battery
