27
Indoor Living
FAN FEATURES
Mounting Slope/Pitch 30°
Location Rating IP20 (Dry)
Hanging Weight 10.6kg
Body Material Polycarbonate
Warranty Limited Lifetime

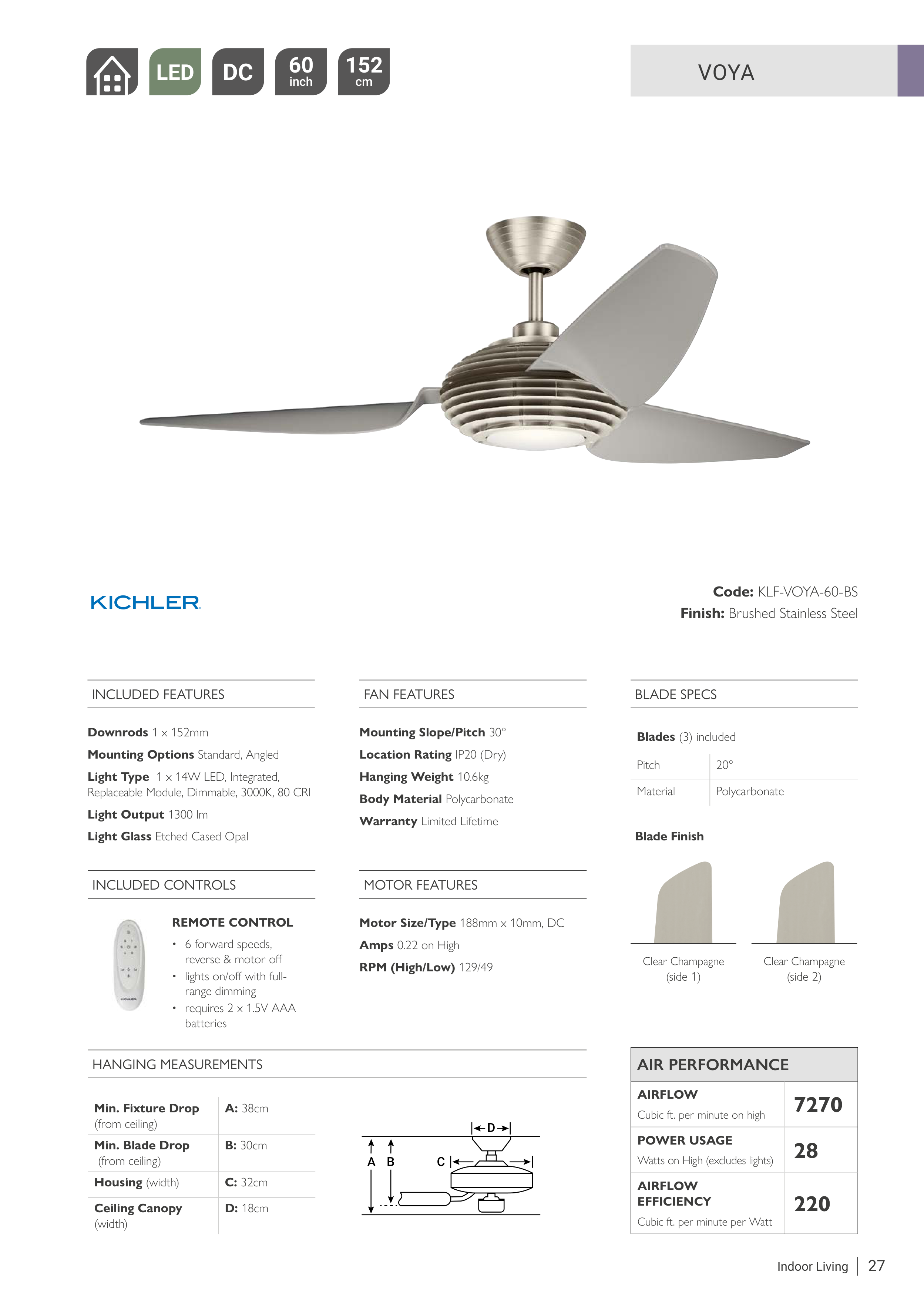

VOYA
HANGING MEASUREMENTS
Min. Fixture Drop
(from ceiling)
A: 38cm
Min. Blade Drop
(from ceiling)
B: 30cm
Housing (width)
C: 32cm
Ceiling Canopy
(width)
D: 18cm
BLADE SPECS
Blades (3) included
Pitch
20°
Material
Polycarbonate
Blade Finish
Clear Champagne
(side 1)
Clear Champagne
(side 2)
152
cm
LED
DC
60
inch
Code: KLF-VOYA-60-BS
Finish: Brushed Stainless Steel
A
B
C
D
MOTOR FEATURES
Motor Size/Type 188mm x 10mm, DC
Amps 0.22 on High
RPM (High/Low) 129/49
INCLUDED FEATURES
Downrods 1 x 152mm
Mounting Options Standard, Angled
Light Type 1 x 14W LED, Integrated,
Replaceable Module, Dimmable, 3000K, 80 CRI
Light Output 1300 lm
Light Glass Etched Cased Opal
AIR PERFORMANCE
AIRFLOW
Cubic ft. per minute on high
7270
POWER USAGE
Watts on High (excludes lights)
28
AIRFLOW
EFFICIENCY
Cubic ft. per minute per Watt
220
INCLUDED CONTROLS
REMOTE CONTROL
• 6 forward speeds,
reverse & motor off
• lights on/off with full-
range dimming
• requires 2 x 1.5V AAA
batteries
