ELSTEADLIGHTING.COM OUTDOOR CEILING FANS
265
86
cm
LED
IP23
AC
34
inch
A
B
C
D

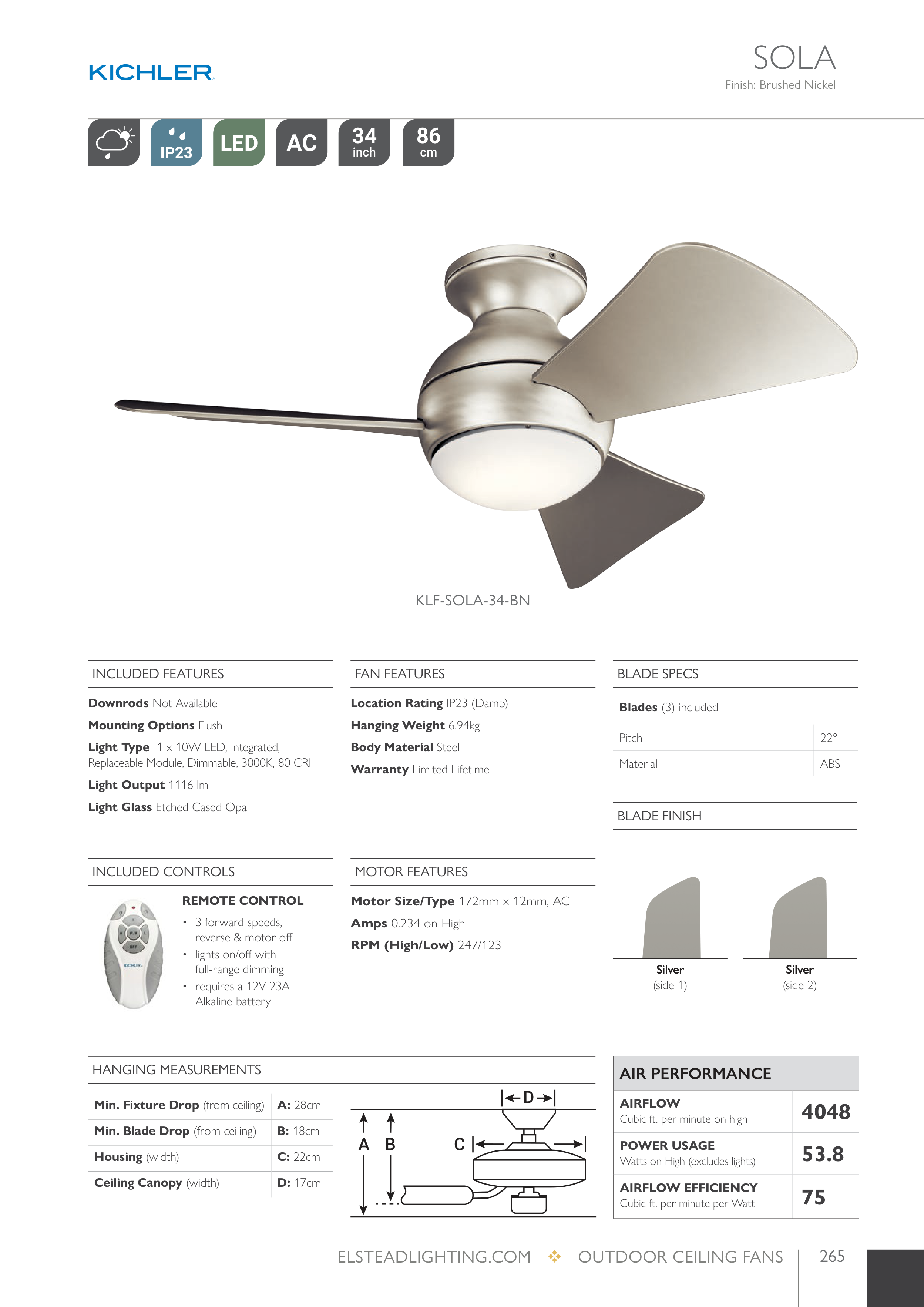

SOLA
Finish: Brushed Nickel
FAN FEATURES
Location Rating IP23 (Damp)
Hanging Weight 6.94kg
Body Material Steel
Warranty Limited Lifetime
HANGING MEASUREMENTS
Min. Fixture Drop (from ceiling)
A: 28cm
Min. Blade Drop (from ceiling)
B: 18cm
Housing (width)
C: 22cm
Ceiling Canopy (width)
D: 17cm
BLADE SPECS
Blades (3) included
Pitch
22°
Material
ABS
BLADE FINISH
Silver
(side 1)
Silver
(side 2)
KLF-SOLA-34-BN
MOTOR FEATURES
Motor Size/Type 172mm x 12mm, AC
Amps 0.234 on High
RPM (High/Low) 247/123
INCLUDED FEATURES
Downrods Not Available
Mounting Options Flush
Light Type 1 x 10W LED, Integrated,
Replaceable Module, Dimmable, 3000K, 80 CRI
Light Output 1116 lm
Light Glass Etched Cased Opal
AIR PERFORMANCE
AIRFLOW
Cubic ft. per minute on high
4048
POWER USAGE
Watts on High (excludes lights)
53.8
AIRFLOW EFFICIENCY
Cubic ft. per minute per Watt
75
INCLUDED CONTROLS
REMOTE CONTROL
• 3 forward speeds,
reverse & motor off
• lights on/off with
full-range dimming
• requires a 12V 23A
Alkaline battery
