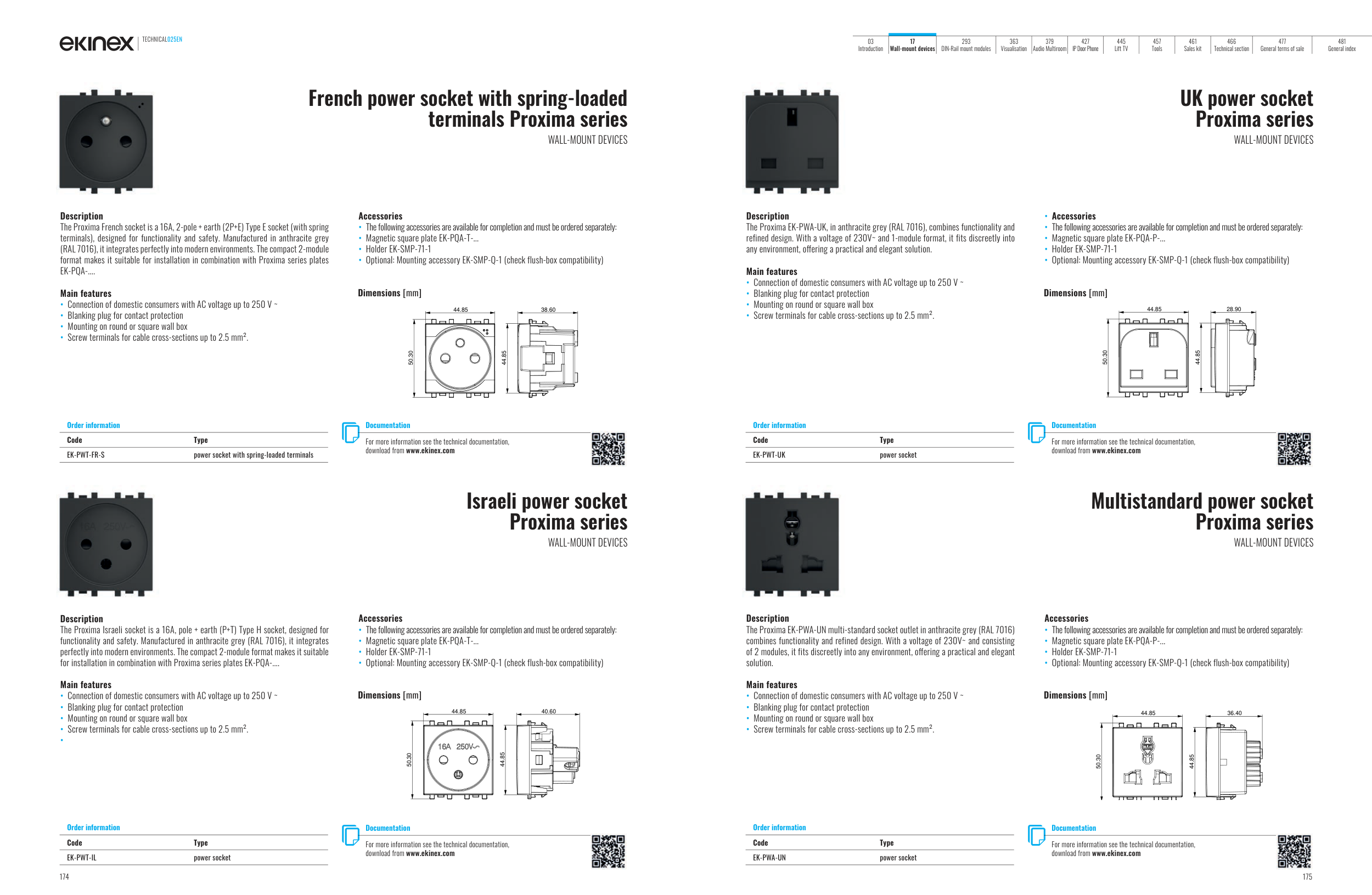

French power socket with spring-loaded
terminals Proxima series
WALL-MOUNT DEVICES
UK power socket
Proxima series
WALL-MOUNT DEVICES
Description
The Proxima French socket is a 16A, 2-pole + earth (2P+E) Type E socket (with spring
terminals), designed for functionality and safety. Manufactured in anthracite grey
(RAL 7016), it integrates perfectly into modern environments. The compact 2-module
format makes it suitable for installation in combination with Proxima series plates
EK-PQA-....
Main features
• Connection of domestic consumers with AC voltage up to 250 V ~
• Blanking plug for contact protection
• Mounting on round or square wall box
• Screw terminals for cable cross-sections up to 2.5 mm².
Accessories
• The following accessories are available for completion and must be ordered separately:
• Magnetic square plate EK-PQA-T-...
• Holder EK-SMP-71-1
• Optional: Mounting accessory EK-SMP-Q-1 (check flush-box compatibility)
Description
The Proxima EK-PWA-UK, in anthracite grey (RAL 7016), combines functionality and
refined design. With a voltage of 230V~ and 1-module format, it fits discreetly into
any environment, offering a practical and elegant solution.
Main features
• Connection of domestic consumers with AC voltage up to 250 V ~
• Blanking plug for contact protection
• Mounting on round or square wall box
• Screw terminals for cable cross-sections up to 2.5 mm².
• Accessories
• The following accessories are available for completion and must be ordered separately:
• Magnetic square plate EK-PQA-P-...
• Holder EK-SMP-71-1
• Optional: Mounting accessory EK-SMP-Q-1 (check flush-box compatibility)
Order information
Code
Type
EK-PWT-FR-S
power socket with spring-loaded terminals
Order information
Code
Type
EK-PWT-UK
power socket
Dimensions [mm]
44.85
44.85
50.30
38.60
Dimensions [mm]
44.85
44.85
50.30
28.90
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Israeli power socket
Proxima series
WALL-MOUNT DEVICES
Multistandard power socket
Proxima series
WALL-MOUNT DEVICES
Description
The Proxima Israeli socket is a 16A, pole + earth (P+T) Type H socket, designed for
functionality and safety. Manufactured in anthracite grey (RAL 7016), it integrates
perfectly into modern environments. The compact 2-module format makes it suitable
for installation in combination with Proxima series plates EK-PQA-....
Main features
• Connection of domestic consumers with AC voltage up to 250 V ~
• Blanking plug for contact protection
• Mounting on round or square wall box
• Screw terminals for cable cross-sections up to 2.5 mm².
•
Accessories
• The following accessories are available for completion and must be ordered separately:
• Magnetic square plate EK-PQA-T-...
• Holder EK-SMP-71-1
• Optional: Mounting accessory EK-SMP-Q-1 (check flush-box compatibility)
Description
The Proxima EK-PWA-UN multi-standard socket outlet in anthracite grey (RAL 7016)
combines functionality and refined design. With a voltage of 230V~ and consisting
of 2 modules, it fits discreetly into any environment, offering a practical and elegant
solution.
Main features
• Connection of domestic consumers with AC voltage up to 250 V ~
• Blanking plug for contact protection
• Mounting on round or square wall box
• Screw terminals for cable cross-sections up to 2.5 mm².
Accessories
• The following accessories are available for completion and must be ordered separately:
• Magnetic square plate EK-PQA-P-...
• Holder EK-SMP-71-1
• Optional: Mounting accessory EK-SMP-Q-1 (check flush-box compatibility)
Order information
Code
Type
EK-PWT-IL
power socket
Order information
Code
Type
EK-PWA-UN
power socket
Dimensions [mm]
44.85
44.85
50.30
40.60
Dimensions [mm]
44.85
44.85
50.30
36.40
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Documentation
For more information see the technical documentation,
download from www.ekinex.com
