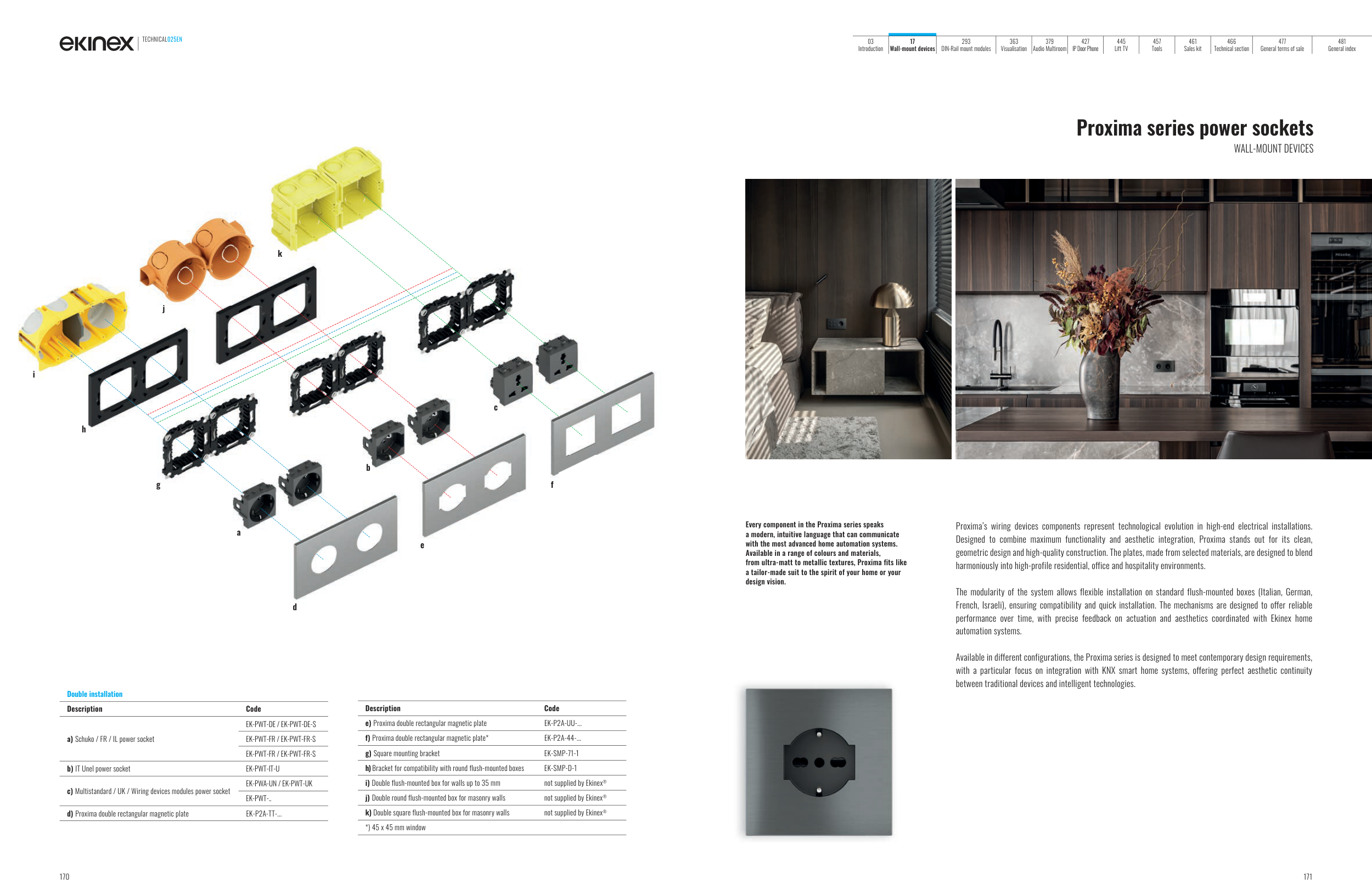

Double installation
Description
Code
a) Schuko / FR / IL power socket
EK-PWT-DE / EK-PWT-DE-S
EK-PWT-FR / EK-PWT-FR-S
EK-PWT-FR / EK-PWT-FR-S
b) IT Unel power socket
EK-PWT-IT-U
c) Multistandard / UK / Wiring devices modules power socket
EK-PWA-UN / EK-PWT-UK
EK-PWT-..
d) Proxima double rectangular magnetic plate
EK-P2A-TT-...
a
g
h
c
f
d
i
j
k
b
e
Description
Code
e) Proxima double rectangular magnetic plate
EK-P2A-UU-...
f) Proxima double rectangular magnetic plate*
EK-P2A-44-...
g) Square mounting bracket
EK-SMP-71-1
h) Bracket for compatibility with round flush-mounted boxes
EK-SMP-D-1
i) Double flush-mounted box for walls up to 35 mm
not supplied by Ekinex®
j) Double round flush-mounted box for masonry walls
not supplied by Ekinex®
k) Double square flush-mounted box for masonry walls
not supplied by Ekinex®
*) 45 x 45 mm window
Proxima series power sockets
WALL-MOUNT DEVICES
Proxima’s wiring devices components represent technological evolution in high-end electrical installations.
Designed to combine maximum functionality and aesthetic integration, Proxima stands out for its clean,
geometric design and high-quality construction. The plates, made from selected materials, are designed to blend
harmoniously into high-profile residential, office and hospitality environments.
The modularity of the system allows flexible installation on standard flush-mounted boxes (Italian, German,
French, Israeli), ensuring compatibility and quick installation. The mechanisms are designed to offer reliable
performance over time, with precise feedback on actuation and aesthetics coordinated with Ekinex home
automation systems.
Available in different configurations, the Proxima series is designed to meet contemporary design requirements,
with a particular focus on integration with KNX smart home systems, offering perfect aesthetic continuity
between traditional devices and intelligent technologies.
Every component in the Proxima series speaks
a modern, intuitive language that can communicate
with the most advanced home automation systems.
Available in a range of colours and materials,
from ultra-matt to metallic textures, Proxima fits like
a tailor-made suit to the spirit of your home or your
design vision.
