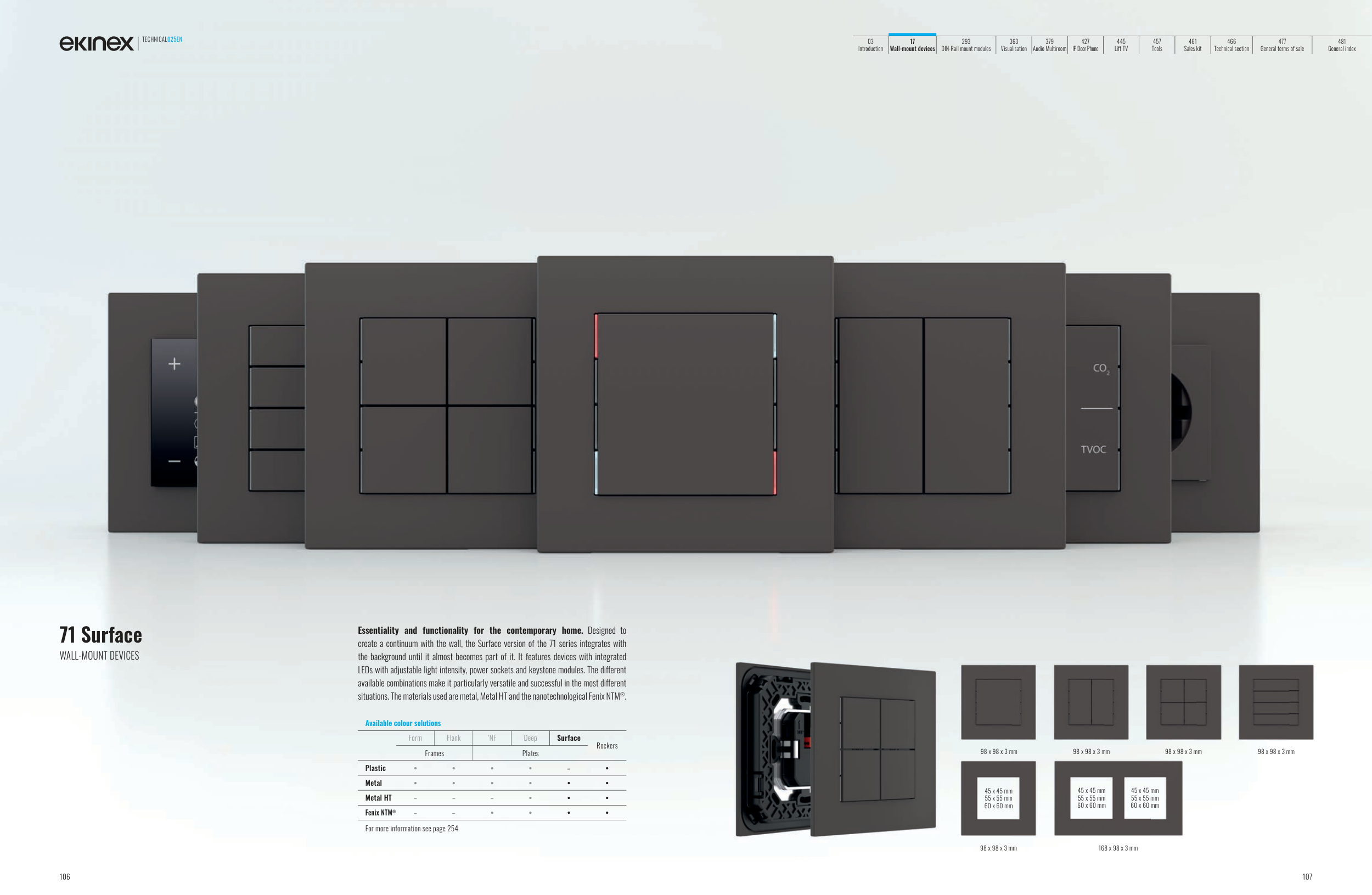

Essentiality and functionality for the contemporary home. Designed to
create a continuum with the wall, the Surface version of the 71 series integrates with
the background until it almost becomes part of it. It features devices with integrated
LEDs with adjustable light intensity, power sockets and keystone modules. The different
available combinations make it particularly versatile and successful in the most different
situations. The materials used are metal, Metal HT and the nanotechnological Fenix NTM®.
71 Surface
WALL-MOUNT DEVICES
Available colour solutions
Form
Flank
‘NF
Deep
Surface
Rockers
Frames
Plates
Plastic
•
•
•
•
-
•
Metal
•
•
•
•
•
•
Metal HT
-
-
-
•
•
•
Fenix NTM®
-
-
•
•
•
•
For more information see page 254
45 x 45 mm
55 x 55 mm
60 x 60 mm
45 x 45 mm
55 x 55 mm
60 x 60 mm
45 x 45 mm
55 x 55 mm
60 x 60 mm
98 x 98 x 3 mm
168 x 98 x 3 mm
98 x 98 x 3 mm
98 x 98 x 3 mm
98 x 98 x 3 mm
98 x 98 x 3 mm
