87 x 87 x 9 mm
87 x 87 x 9 mm
87 x 87 x 9 mm
87 x 87 x 9 mm
68 x 45 mm
60 x 60 mm
128 x 87 x 9 mm
45 x 45 mm
55 x 55 mm
60 x 60 mm
87 x 87 x 9 mm
45 x 45 mm
55 x 55 mm
60 x 60 mm
45 x 45 mm
55 x 55 mm
60 x 60 mm
158 x 87 x 9 mm
55 x 55 mm
60 x 60 mm
55 x 55 mm
60 x 60 mm
55 x 55 mm
60 x 60 mm
Available colour solutions
Form
Flank
‘NF
Deep
Surface
Rockers
Frames
Plates
Plastic
•
•
•
•
-
•
Metal
•
•
•
•
•
•
Metal HT
-
-
-
•
•
•
Fenix NTM®
-
-
•
•
•
•
For more information see page 254

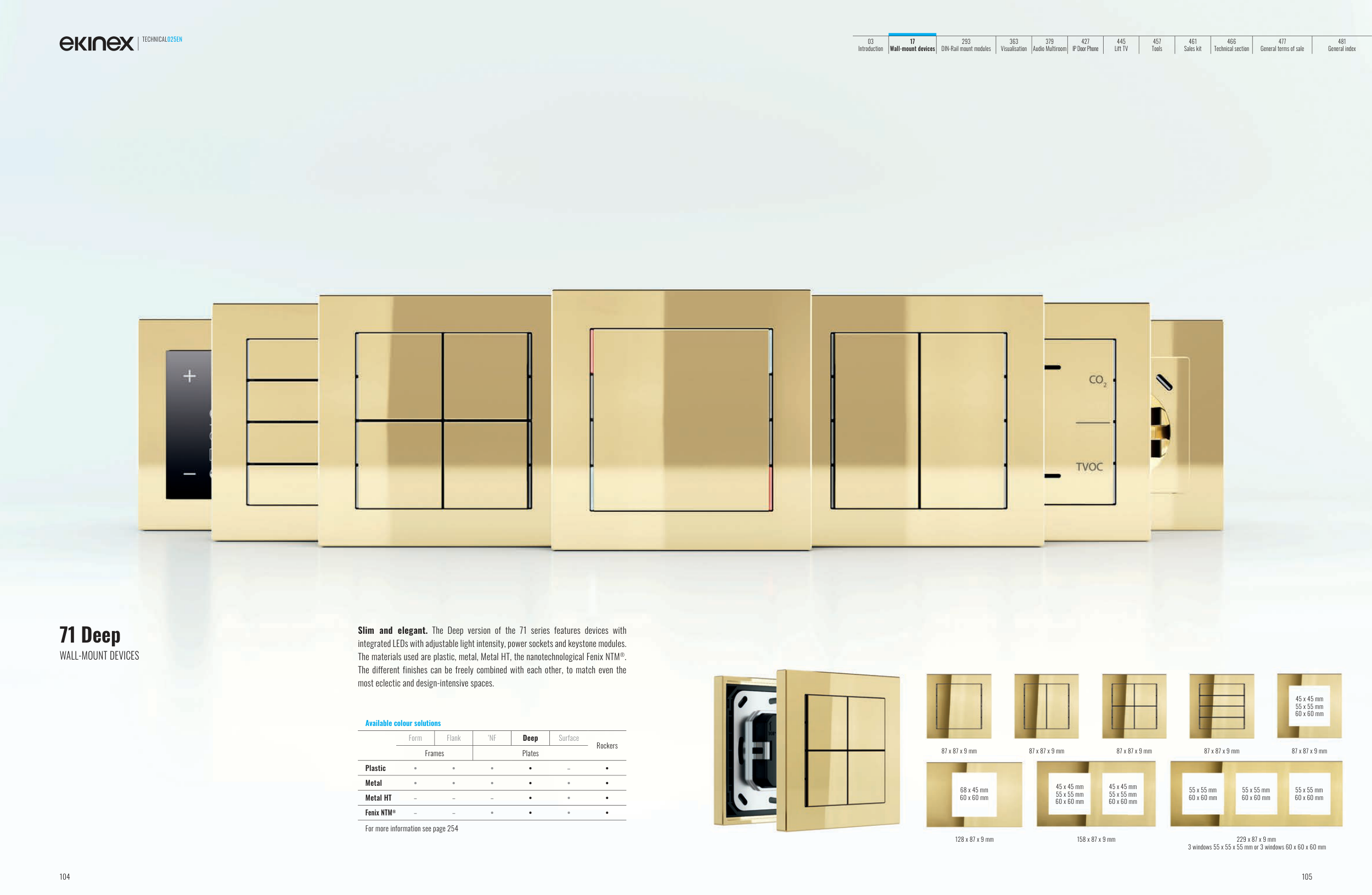

71 Deep
WALL-MOUNT DEVICES
Slim and elegant. The Deep version of the 71 series features devices with
integrated LEDs with adjustable light intensity, power sockets and keystone modules.
The materials used are plastic, metal, Metal HT, the nanotechnological Fenix NTM®.
The different finishes can be freely combined with each other, to match even the
most eclectic and design-intensive spaces.
229 x 87 x 9 mm
3 windows 55 x 55 x 55 mm or 3 windows 60 x 60 x 60 mm
TECHNICAL025EN
