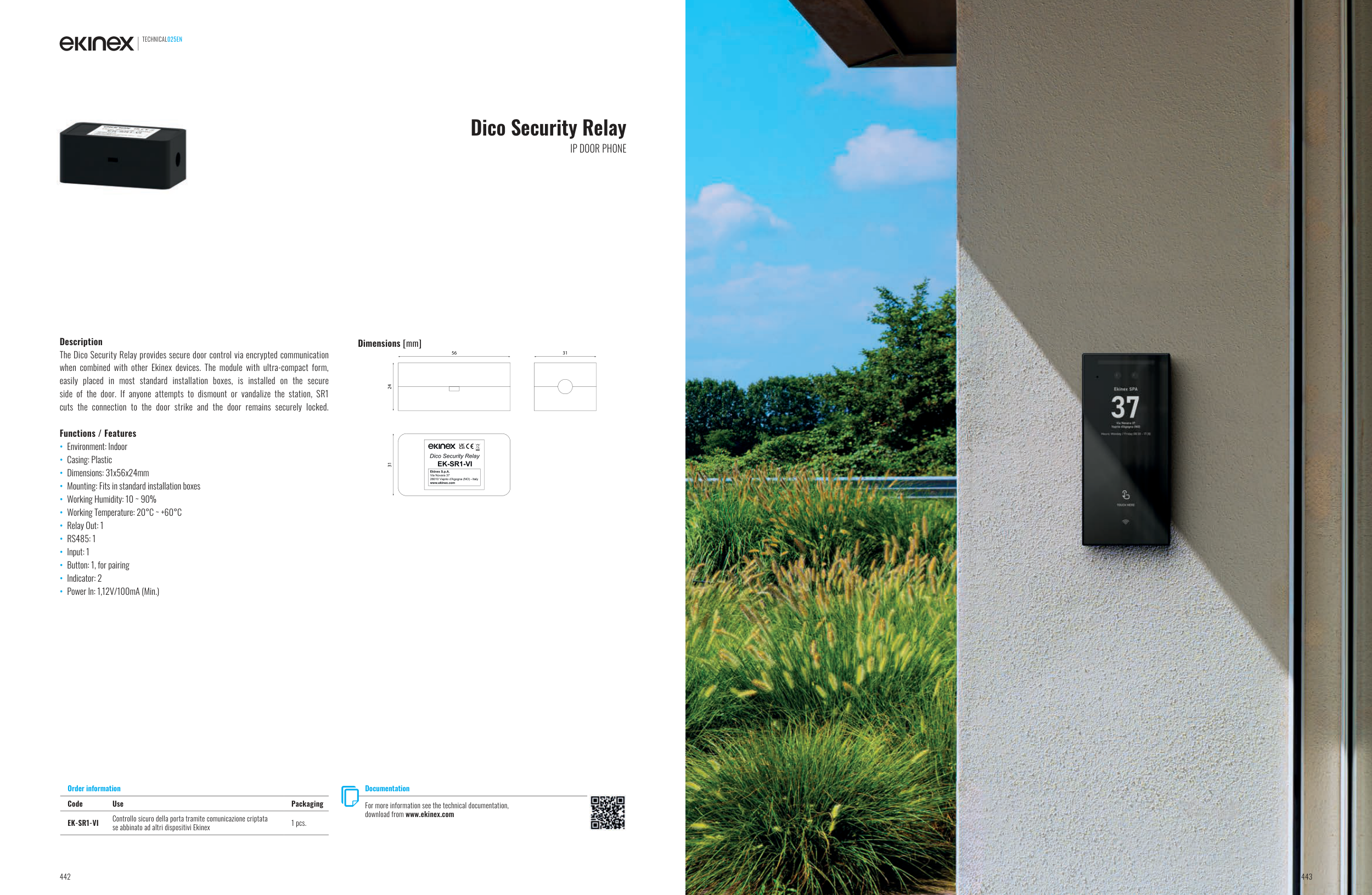

Dico Security Relay
IP DOOR PHONE
Description
The Dico Security Relay provides secure door control via encrypted communication
when combined with other Ekinex devices. The module with ultra-compact form,
easily placed in most standard installation boxes, is installed on the secure
side of the door. If anyone attempts to dismount or vandalize the station, SR1
cuts the connection to the door strike and the door remains securely locked.
Functions / Features
• Environment: Indoor
• Casing: Plastic
• Dimensions: 31x56x24mm
• Mounting: Fits in standard installation boxes
• Working Humidity: 10 ~ 90%
• Working Temperature: 20°C ~ +60°C
• Relay Out: 1
• RS485: 1
• Input: 1
• Button: 1, for pairing
• Indicator: 2
• Power In: 1,12V/100mA (Min.)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Order information
Code
Use
Packaging
EK-SR1-VI
Controllo sicuro della porta tramite comunicazione criptata
se abbinato ad altri dispositivi Ekinex
1 pcs.
Dimensions [mm]
443
TECHNICAL025EN
442
