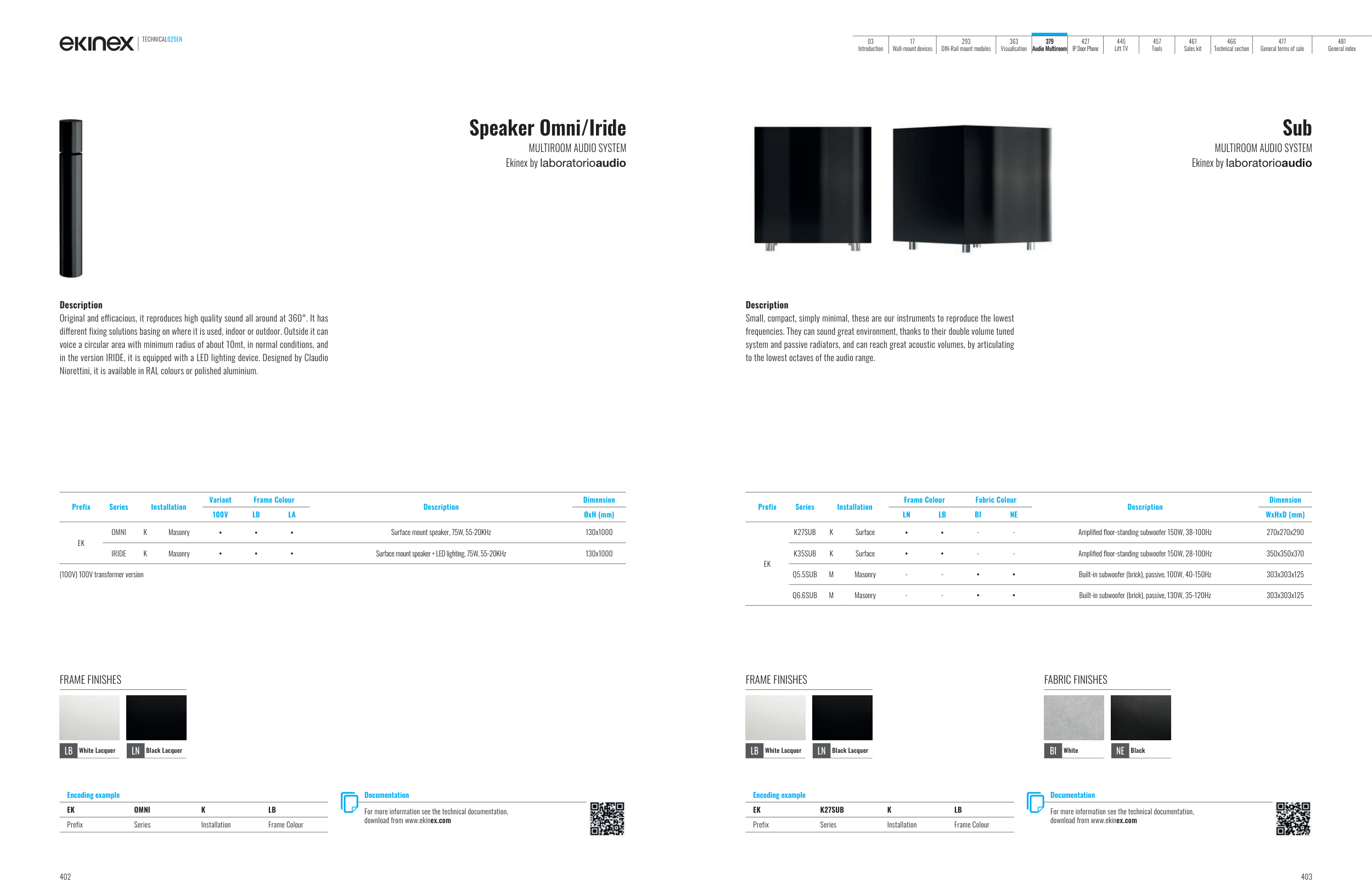

Speaker Omni/Iride
MULTIROOM AUDIO SYSTEM
Ekinex by laboratorioaudio
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Description
Original and efficacious, it reproduces high quality sound all around at 360°. It has
different fixing solutions basing on where it is used, indoor or outdoor. Outside it can
voice a circular area with minimum radius of about 10mt, in normal conditions, and
in the version IRIDE, it is equipped with a LED lighting device. Designed by Claudio
Niorettini, it is available in RAL colours or polished aluminium.
Prefix
Series
Installation
Variant
Frame Colour
Description
Dimension
100V
LB
LA
ØxH (mm)
EK
OMNI
K
Masonry
•
•
•
Surface mount speaker, 75W, 55-20KHz
130x1000
IRIDE
K
Masonry
•
•
•
Surface mount speaker + LED lighting, 75W, 55-20KHz
130x1000
(100V) 100V transformer version
FRAME FINISHES
LB
White Lacquer
LN
Black Lacquer
Encoding example
EK
OMNI
K
LB
Prefix
Series
Installation
Frame Colour
Sub
MULTIROOM AUDIO SYSTEM
Ekinex by laboratorioaudio
Description
Small, compact, simply minimal, these are our instruments to reproduce the lowest
frequencies. They can sound great environment, thanks to their double volume tuned
system and passive radiators, and can reach great acoustic volumes, by articulating
to the lowest octaves of the audio range.
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Prefix
Series
Installation
Frame Colour
Fabric Colour
Description
Dimension
LN
LB
BI
NE
WxHxD (mm)
EK
K27SUB
K
Surface
•
•
-
-
Amplifi ed fl oor-standing subwoofer 150W, 38-100Hz
270x270x290
K35SUB
K
Surface
•
•
-
-
Amplifi ed fl oor-standing subwoofer 150W, 28-100Hz
350x350x370
Q5.5SUB
M
Masonry
-
-
•
•
Built-in subwoofer (brick), passive, 100W, 40-150Hz
303x303x125
Q6.6SUB
M
Masonry
-
-
•
•
Built-in subwoofer (brick), passive, 130W, 35-120Hz
303x303x125
FRAME FINISHES
LB
White Lacquer
LN
Black Lacquer
FABRIC FINISHES
BI
White
NE
Black
Encoding example
EK
K27SUB
K
LB
Prefix
Series
Installation
Frame Colour
