OTHER FUNCTIONS
MULTIMEDIA
METERING MONITORS
SECURITY
VIDEO-SURVEILLANCE
IP DOOR PHONE
Switch POE
Local connection
Modem Router
Delégo panel 5”
CLOUD
Remote connection
via cloud
Delégo panel 8”
Delégo panel 4”
Delégo panel 10”

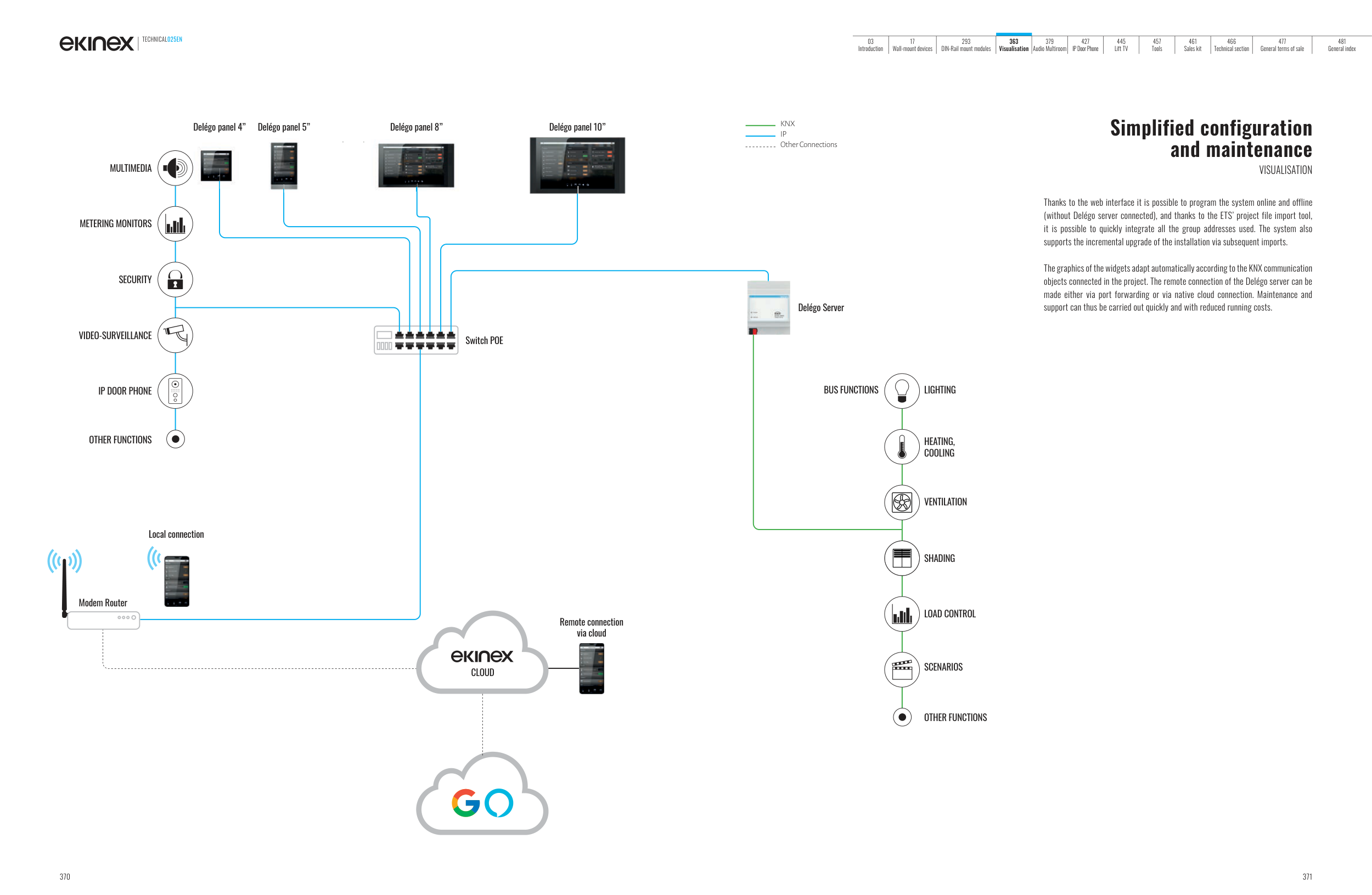

Simplified configuration
and maintenance
VISUALISATION
Thanks to the web interface it is possible to program the system online and offline
(without Delégo server connected), and thanks to the ETS’ project file import tool,
it is possible to quickly integrate all the group addresses used. The system also
supports the incremental upgrade of the installation via subsequent imports.
The graphics of the widgets adapt automatically according to the KNX communication
objects connected in the project. The remote connection of the Delégo server can be
made either via port forwarding or via native cloud connection. Maintenance and
support can thus be carried out quickly and with reduced running costs.
Delégo Server
LIGHTING
HEATING,
COOLING
VENTILATION
SHADING
LOAD CONTROL
SCENARIOS
OTHER FUNCTIONS
BUS FUNCTIONS
KNX
IP
Other Connections
