Description
The single-channel phase cut dimmer EK-GD2-DL-1-HV allows the brightness
control of LED and halogen sources with a voltage of 90-230 Vac 50/60Hz for up to
220Watts. Input Bus DALI-2 reference IEC 62386 standard.
Main features
• Plastic housing
• Device for free installation in junction boxes or wall
• Mounting on 35 mm profile rail (by means of code holder included)
• IP10 degree of protection (device installed)
Functions
• Dimming up to complete switch-off (dim-to-dark)
• Minimum brightness level: 1%
• Optimised output curve
Connections
• Screw terminals for DALI bus, control, power supply and LED source
Technical data
• Single-channel dimmer with phase-cut output
• Supply range: 90-230 Vac 50/60Hz
• Maximum output power 230W
• Control inputs: DALI bus
• Maximum resistive load 1A.
• For electronic and/or LED loads the power is halved
• Conductor diameter 12-30 AWG (0.05-2.5 mmq)
• Storage temperature Min: -40°C Max: 60°C
Note
For electronic loads and/or electronic LEDs consider maximum power halved from
nominal value.

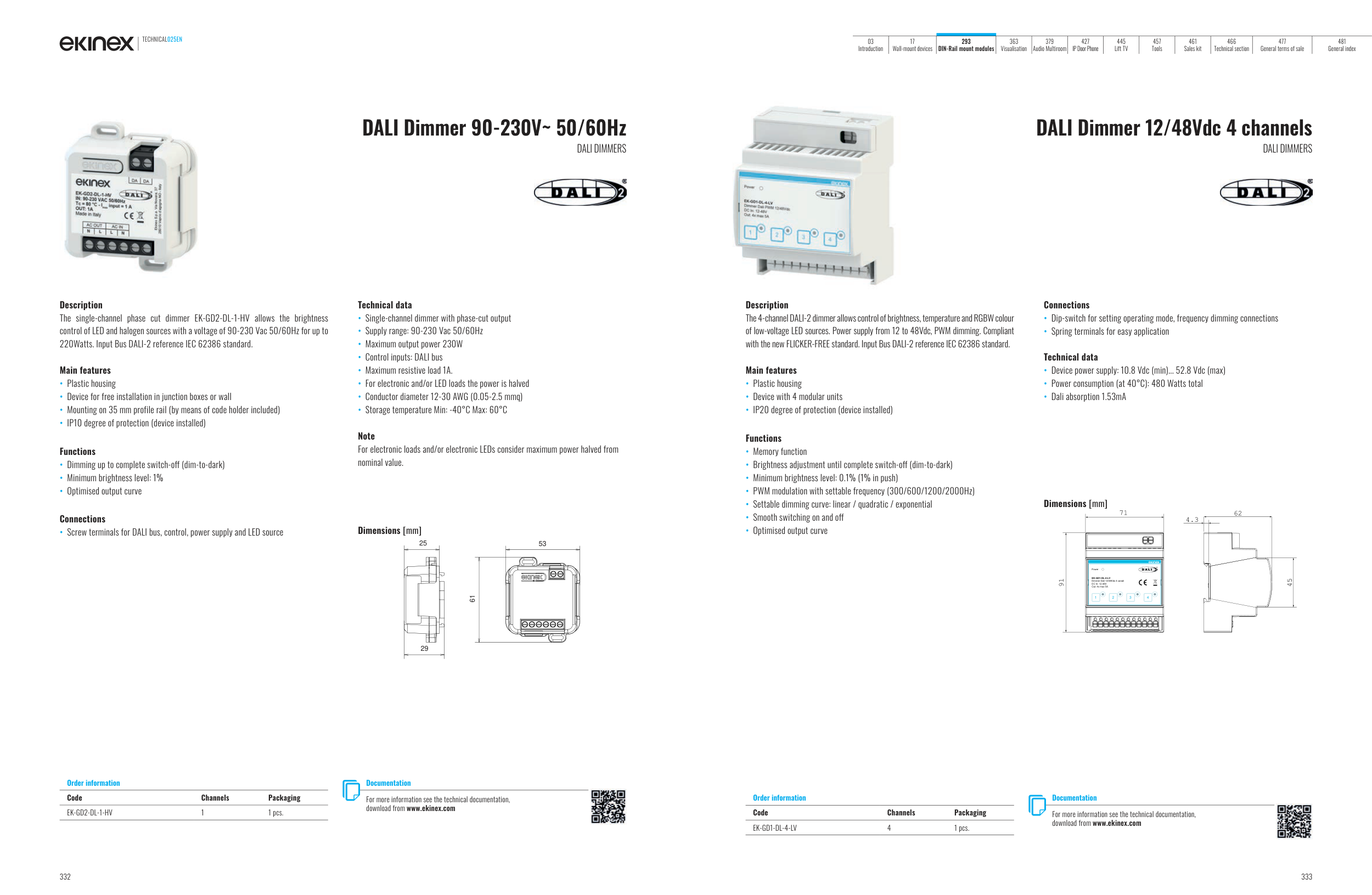

DALI Dimmer 90-230V~ 50/60Hz
DALI DIMMERS
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Order information
Code
Channels
Packaging
EK-GD2-DL-1-HV
1
1 pcs.
Dimensions [mm]
25
29
61
53
Description
The 4-channel DALI-2 dimmer allows control of brightness, temperature and RGBW colour
of low-voltage LED sources. Power supply from 12 to 48Vdc, PWM dimming. Compliant
with the new FLICKER-FREE standard. Input Bus DALI-2 reference IEC 62386 standard.
Main features
• Plastic housing
• Device with 4 modular units
• IP20 degree of protection (device installed)
Functions
• Memory function
• Brightness adjustment until complete switch-off (dim-to-dark)
• Minimum brightness level: 0.1% (1% in push)
• PWM modulation with settable frequency (300/600/1200/2000Hz)
• Settable dimming curve: linear / quadratic / exponential
• Smooth switching on and off
• Optimised output curve
Connections
• Dip-switch for setting operating mode, frequency dimming connections
• Spring terminals for easy application
Technical data
• Device power supply: 10.8 Vdc (min)... 52.8 Vdc (max)
• Power consumption (at 40°C): 480 Watts total
• Dali absorption 1.53mA
DALI Dimmer 12/48Vdc 4 channels
DALI DIMMERS
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Order information
Code
Channels
Packaging
EK-GD1-DL-4-LV
4
1 pcs.
Dimensions [mm]
EK-GD1-DL-4-LV
Dimmer Dali 12/48Vdc 4 canali
DC In: 12-48V
Out: 4x max 5A
Power
1
2
3
4
