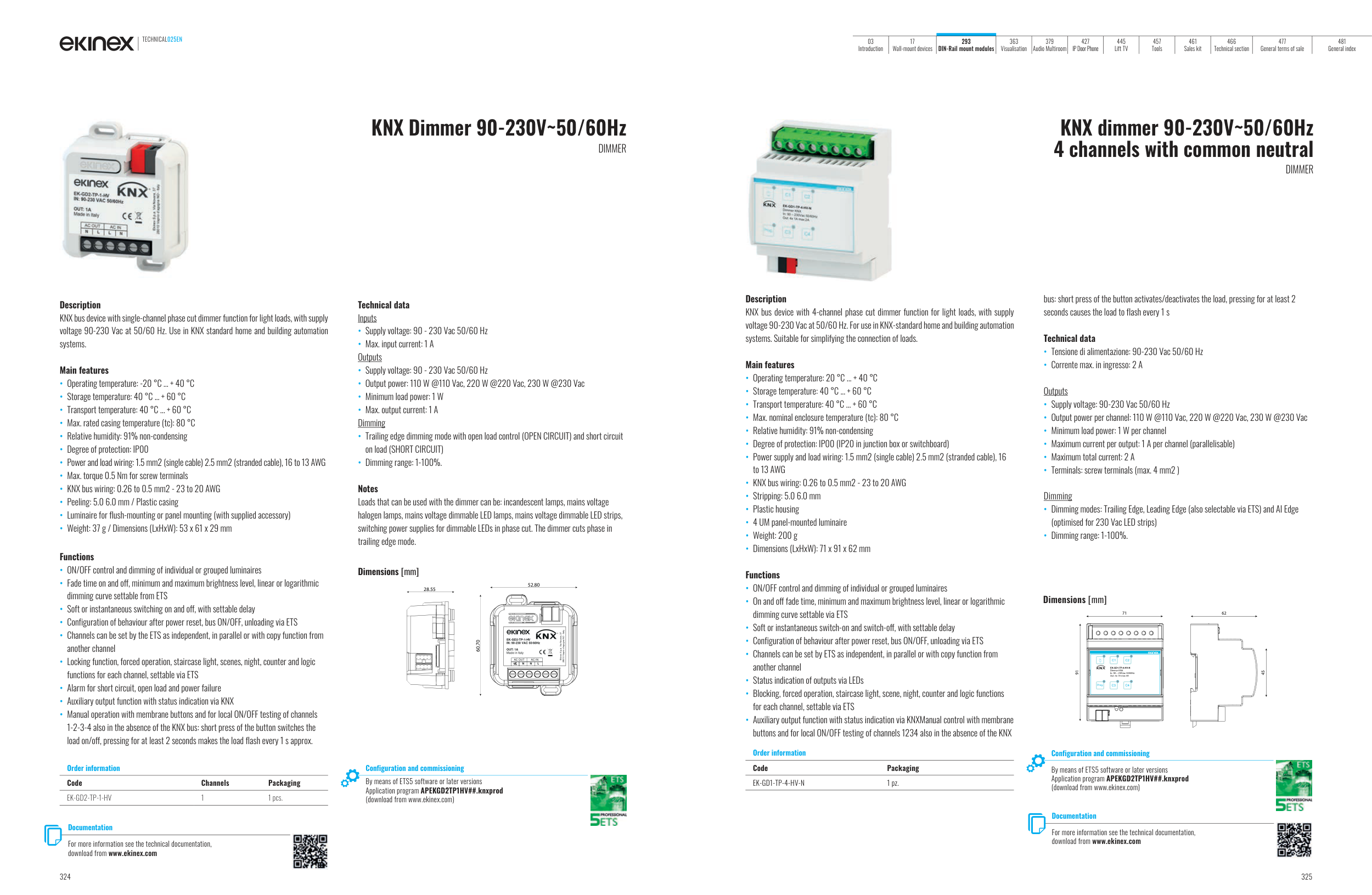

KNX Dimmer 90-230V~50/60Hz
DIMMER
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Order information
Code
Channels
Packaging
EK-GD2-TP-1-HV
1
1 pcs.
Description
KNX bus device with single-channel phase cut dimmer function for light loads, with supply
voltage 90-230 Vac at 50/60 Hz. Use in KNX standard home and building automation
systems.
Main features
• Operating temperature: -20 °C ... + 40 °C
• Storage temperature: 40 °C ... + 60 °C
• Transport temperature: 40 °C ... + 60 °C
• Max. rated casing temperature (tc): 80 °C
• Relative humidity: 91% non-condensing
• Degree of protection: IP00
• Power and load wiring: 1.5 mm2 (single cable) 2.5 mm2 (stranded cable), 16 to 13 AWG
• Max. torque 0.5 Nm for screw terminals
• KNX bus wiring: 0.26 to 0.5 mm2 - 23 to 20 AWG
• Peeling: 5.0 6.0 mm / Plastic casing
• Luminaire for flush-mounting or panel mounting (with supplied accessory)
• Weight: 37 g / Dimensions (LxHxW): 53 x 61 x 29 mm
Functions
• ON/OFF control and dimming of individual or grouped luminaires
• Fade time on and off, minimum and maximum brightness level, linear or logarithmic
dimming curve settable from ETS
• Soft or instantaneous switching on and off, with settable delay
• Configuration of behaviour after power reset, bus ON/OFF, unloading via ETS
• Channels can be set by the ETS as independent, in parallel or with copy function from
another channel
• Locking function, forced operation, staircase light, scenes, night, counter and logic
functions for each channel, settable via ETS
• Alarm for short circuit, open load and power failure
• Auxiliary output function with status indication via KNX
• Manual operation with membrane buttons and for local ON/OFF testing of channels
1-2-3-4 also in the absence of the KNX bus: short press of the button switches the
load on/off, pressing for at least 2 seconds makes the load flash every 1 s approx.
Technical data
Inputs
• Supply voltage: 90 - 230 Vac 50/60 Hz
• Max. input current: 1 A
Outputs
• Supply voltage: 90 - 230 Vac 50/60 Hz
• Output power: 110 W @110 Vac, 220 W @220 Vac, 230 W @230 Vac
• Minimum load power: 1 W
• Max. output current: 1 A
Dimming
• Trailing edge dimming mode with open load control (OPEN CIRCUIT) and short circuit
on load (SHORT CIRCUIT)
• Dimming range: 1-100%.
Notes
Loads that can be used with the dimmer can be: incandescent lamps, mains voltage
halogen lamps, mains voltage dimmable LED lamps, mains voltage dimmable LED strips,
switching power supplies for dimmable LEDs in phase cut. The dimmer cuts phase in
trailing edge mode.
Dimensions [mm]
28.55
52.80
60.70
Ekinex S.p.a. Via Novara, 37
28010 Vaprio d’agogna NO - Italy
EK-GD2-TP-1-HV
IN: 90-230 VAC 50/60Hz
OUT: 1A
Made in Italy
AC OUT
N
N
L
AC IN
Configuration and commissioning
By means of ETS5 software or later versions
Application program APEKGD2TP1HV##.knxprod
(download from www.ekinex.com)
Description
KNX bus device with 4-channel phase cut dimmer function for light loads, with supply
voltage 90-230 Vac at 50/60 Hz. For use in KNX-standard home and building automation
systems. Suitable for simplifying the connection of loads.
Main features
• Operating temperature: 20 °C ... + 40 °C
• Storage temperature: 40 °C ... + 60 °C
• Transport temperature: 40 °C ... + 60 °C
• Max. nominal enclosure temperature (tc): 80 °C
• Relative humidity: 91% non-condensing
• Degree of protection: IP00 (IP20 in junction box or switchboard)
• Power supply and load wiring: 1.5 mm2 (single cable) 2.5 mm2 (stranded cable), 16
to 13 AWG
• KNX bus wiring: 0.26 to 0.5 mm2 - 23 to 20 AWG
• Stripping: 5.0 6.0 mm
• Plastic housing
• 4 UM panel-mounted luminaire
• Weight: 200 g
• Dimensions (LxHxW): 71 x 91 x 62 mm
Functions
• ON/OFF control and dimming of individual or grouped luminaires
• On and off fade time, minimum and maximum brightness level, linear or logarithmic
dimming curve settable via ETS
• Soft or instantaneous switch-on and switch-off, with settable delay
• Configuration of behaviour after power reset, bus ON/OFF, unloading via ETS
• Channels can be set by ETS as independent, in parallel or with copy function from
another channel
• Status indication of outputs via LEDs
• Blocking, forced operation, staircase light, scene, night, counter and logic functions
for each channel, settable via ETS
• Auxiliary output function with status indication via KNXManual control with membrane
buttons and for local ON/OFF testing of channels 1234 also in the absence of the KNX
bus: short press of the button activates/deactivates the load, pressing for at least 2
seconds causes the load to flash every 1 s
Technical data
• Tensione di alimentazione: 90-230 Vac 50/60 Hz
• Corrente max. in ingresso: 2 A
Outputs
• Supply voltage: 90-230 Vac 50/60 Hz
• Output power per channel: 110 W @110 Vac, 220 W @220 Vac, 230 W @230 Vac
• Minimum load power: 1 W per channel
• Maximum current per output: 1 A per channel (parallelisable)
• Maximum total current: 2 A
• Terminals: screw terminals (max. 4 mm2 )
Dimming
• Dimming modes: Trailing Edge, Leading Edge (also selectable via ETS) and AI Edge
(optimised for 230 Vac LED strips)
• Dimming range: 1-100%.
KNX dimmer 90-230V~50/60Hz
4 channels with common neutral
DIMMER
Dimensions [mm]
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Order information
Code
Packaging
EK-GD1-TP-4-HV-N
1 pz.
Configuration and commissioning
By means of ETS5 software or later versions
Application program APEKGD2TP1HV##.knxprod
(download from www.ekinex.com)
71
62
45
91
